Коммуникационный модуль MPI/PROFIBUS DP для панелей TP 604LC и TP 607LC
| Order no. | Name/Description | |
|---|---|---|
|
62E-MDC0-DH |
Touch Panel TP 604LC 4.3", TFT, 480x272 Pixel ARM11 processor, 533MHz 128 MB work memory, 128 MB user memory RS232, RS422/485, USB-A, Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Movicon Basic Runtime |
 [Datasheet] [Manual] |
|
62E-MGC0-DH |
Touch Panel TP 604LC 4.3", TFT, 480x272 Pixel Cortex-A8 processor, 667MHz 256 MB work memory, 128 MB user memory RS232, RS422/485, USB-A, Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Professional, Runtime Movicon CE Basic |
 [Datasheet] [Manual] |
|
62E-MGC0-CB |
Touch Panel TP 604LC+ 4.3", TFT, 480x272 Pixel Cortex-A8 processor, 667MHz 256 MB work memory, 128 MB user memory RS232, RS422/485, USB-A, Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Professional, Runtime Movicon CE Standard |
[Datasheet] [Manual] |
|
62H-MDC0-DH |
Touch Panel TP 607LC 7", TFT, 800x480 pixel ARM11 processor, 533MHz 128 MB work memory, 128 MB user memory RS232, RS422/485, USB-A, Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Movicon Basic Runtime |
[Datasheet] [Manual] |
|
62H-MGC0-DH |
Touch Panel TP 607LC 7", TFT, 800x480 pixel Cortex-A8 processor, 667MHz 256 MB work memory, 128 MB user memory RS232, RS422/485, USB-A, Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Runtime Movicon CE Basic |
 [Datasheet] [Manual] |
|
62H-MGC0-CB |
Touch Panel TP 607LC+ 7", TFT, 800x480 pixel Cortex-A8 processor, 667MHz 256 MB work memory, 128 MB user memory RS232, RS422/485, USB-A, Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Professional, Runtime Movicon CE Standard |
[Datasheet] [Manual] |
|
62K-NHC0-CB |
Touch Panel TP 610LC+ 10", TFT, 1024x768 Pixel Cortex-A8 processor, 1000MHz␍ 256 MB work memory, 128 MB user memory RS232, RS232/RS422/485, USB-A, 2x Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Professional, Runtime Movicon CE Standard |
[Datasheet] [Manual] |
|
62K-NHC0-DH |
Touch Panel TP 610LC 10", TFT, 1024x768 Pixel Cortex-A8 processor, 1000MHz␍ 256 MB work memory, 128 MB user memory RS232, RS232/RS422/485, USB-A, 2x Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Movicon Basic Runtime |
[Datasheet] [Manual] |
|
62P-NHC0-CB |
Touch Panel TP 615LC+ 15", TFT, 1024x768 pixel Cortex-A8 processor, 1000MHz 256 MB work memory, 128 MB user memory RS232, RS232/RS422/485, USB-A, 2x Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Professional, Runtime Movicon CE Standard |
[Datasheet] [Manual] |
|
62P-NHC0-DH |
Touch Panel TP 615LC 15", TFT, 1024x768 pixel Cortex-A8 processor, 1000MHz 256 MB work memory, 128 MB user memory RS232, RS232/RS422/485, USB-A, 2x Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Movicon Basic Runtime |
[Datasheet] [Manual] |
|

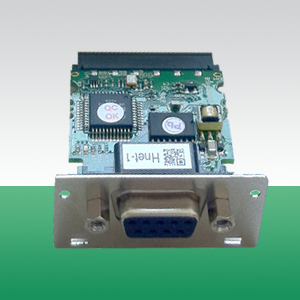

961-0MP0 |
MPI/PROFIBUS-DP interface For optional retrofitting of the MPI/DP interfaces at eco panels series |
[Datasheet] |
Изделие: 62E-MGC0-CB
Цветной ЖК-дисплей 4,3" 480x272, процессор Cortex-A8 667 МГц, интерфейсы: Ethernet (RJ45), RS-232 (DB9), RS-232/422/485 (DB25), 1 x USB-A; предустановленная ОС Windows Embedded CE 6.0 Professional и среда исполнения Movicon 11 Standard
Изделие: 62E-MDC0-DH
Цветной ЖК-дисплей 4,3" 480x272, процессор ARM11 533 МГц, интерфейсы: Ethernet (RJ45), RS-232 (DB9), RS-232/422/485 (DB25), 1 x USB-A; предустановленная ОС Windows Embedded CE 6.0 Core и среда исполнения Movicon 11 Basic
Изделие: 62H-MGC0-DH
Панель оператора TP 607LC, цветной ЖК-дисплей 7" 800x480, процессор Cortex-A8 667 МГц, ОЗУ 256 Мбайт, интерфейсы: Ethernet (RJ45), RS-232 (DB9), RS-232/422/485 (DB25), 1 x USB-A; предустановленная ОС Windows Embedded CE 6.0 Core и среда исполнения Movicon 11 Basic
Изделие: 62P-NHC0-DH
Цветной ЖК-дисплей 15" 1024x768, процессор Cortex-A8 1000 МГц, рабочая память 256 Мбайт, интерфейсы: 2 x Ethernet (RJ45), RS-232 (DB9), RS-232/422/485 (DB25), 1 x USB-A; предустановленная ОС Windows Embedded CE 6.0 Core и среда исполнения Movicon 11 Basic
