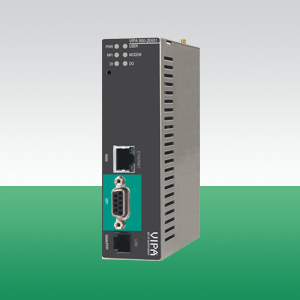

TM-E GSM/GPRS Router, RS485 MPI/PROFIBUS-DP, RJ45 Ethernet, Slot for SIM-Card

Изделие: 900-2E651


Краткое описание:
Встроенный 4-диапазонный GSM/GPRS-модем, интерфейсы MPI/PROFIBUS DP и Ethernet (RJ45), гнездо для SIM-карты
Производитель: VIPA
Вес: 0.4 кг.
Розничная цена: 334554
БЫСТРЫЙ ЗАКАЗ

TM-E Analog 900-2E641

Коммуникационный модуль TM-E GSM/GPRS Router, встроенный 4-диапазонный GSM/GPRS-модем, интерфейсы MPI/PROFIBUS DP и Ethernet (RJ45), гнездо для SIM-карты

Наименование
TM-E GSM/GPRS Router
Габарит
39 х 129 х 108 мм
Вес
400 г
Температура окружающей среды
работа: -20…+70°С
хранение: -25…+70°С
Серия
Communication module






  1. SMA antenna jack with male thread
  2. Connector for digital I/O
  3. Connector for DC 12...24V power supply
  4. Earthing screw
  5. LEDs
  6. Reset button
  7. Slot for SIM card
  8. LAN RJ45 Ethernet interface
  9. RS485 MPI/Profibus DP interface
  10. not connected








      Label             Color        Meaning
PWR green  Power supply is active.
USER green  blinks: The TM module is ready for communication (ca. 20s after PowerOn).
  red

 blinks: IP address not valid (just exist).

  red/green

 blinks alternating: The TM module is just waiting for an IP address during boot-up.
 The LED is also used with the Reset. More about this may be found at "TM - Reset".

MPI green

 blinks: The TM module is communicating with the PLC via MPI.

MODEM green

 on: The modem of the TM module is active.

DI green

 on: The digital input of the TM module is "1".

DO green

 on: The digital output of the TM module is "1".





RJ45 Ethernet
interface
      Assignment

  1. Transmit +
  2. Transmit -
  3. Receive +
  4. -
  5. -
  6. Receive -
  7. -
  8. -
LINK on: Das TM is physically connected to the Ethernet.
ACT

blinks: The TM communicates via Ethernet (Activity)





MPI/PROFIBUS DP

      Assignment

  1. n.c.
  2. n.c.
  3. RxD/TxD (line B)
  4. n.c.
  5. GND
  6. n.c.
  7. n.c.
  8. RxD/TxD (line A)
  9. n.c.





 Connector power supply

Pin Name Meaning
2 12-24V DC   DC 12 ... 24V ±20%
1 GND   Ground power supply

Connector digital I/O


5 DI   Digital input DC 0/24V
  "0": 0 ... 5V DC
  "1": 10V ... 30V DC
4 DI_GND   DI ground (isolated)
3 DO_VDC   DO load voltage DC 24V
2 DO   Digital output DC 24V, 0.2A
  Low-side output
1 DO_GND

  DO ground



Дополнительные принадлежности



 Компактная антенна GSM/UMTS

 900-0AB50

 кабель 5 м, соединитель SMA (вилка)

 Штыревая антенна GSM/GPRS

 900-0AQ51

 кабель 5 м, соединитель SMA (вилка)

Order no.

900-2E651

Type TM-E GSM/GPRS Router quad-band - VPN

General information

Note -
Features For direct point to point teleservice via cellular network or Talk2M & VPN
1x RS485 MPI-/PROFIBUS-DP interface
1x LAN RJ45 Ethernet interface
1x integrated GSM/GPRS (quad-band) modem
Please order antenna separatly!

Inputs and outputs

Inputs 1 DI: 0/24 V DC, isolated
Outputs 1 DO: open drain, max. 200 mA at DC 30 V

Communication

serial port MPI/PROFIBUS, isolated, up to 12 MBit/s
LAN 1 x RJ45, 10/100 MBit/s
WAN -
Modem type GSM/GPRS Quadband

Router

Router functions IP-Forwarding
IP-Filter
NAT
Port-Forwarding
Routing Table
DHCP-Client
RAS PPP Dial-In
PPP Dial-Out
Call-Back

VPN

VPN mode Open VPN 2.0, Client/Server
Talk2M
Gateway protocols MPI
PPI
PROFIBUS
ISO TCP
Modbus TCP

Services

Server services FTP
HTTP
Client Services FTP
SMTP
NTP
DYNDNS
SNMP

Data management

Custom Website
Project web interface
Integrated protocols MPI
PPI
PROFIBUS
ISO TCP
Modbus TCP

Interrupts

Alarm message EMail
SMS
SNMP
FTP
Alarm EMail
Hardware I/O
SMS
PLC-variables
SNMP
system variables
FTP

Housing

Material -
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 39 mm x 129 mm x 108 mm
Weight 400 g

Environmental conditions

Operating temperature -20 °C to 70 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification -
Order no.Name/Description

900-2C510

TM-C VPN Router WAN/LAN
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C520

TM-C VPN Router WIFI/WAN/LAN
WIFI interface for connection to a WIFI network
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C580

TM-C VPN Router 3G+/WAN/LAN
3G+ modem for external broadband communication
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)␍
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C610

TM-C Router
For teleservice through broadband connection via Talk2M
1x RS485 MPI-/PROFIBUS-DP interface
4x LAN RJ45 Ethernet interface
1x WAN RJ45 Ethernet interface
 [Datasheet]
 [Manual]

900-2H611

TM-H Router VPN
For teleservice through a broadband connection via Talk2M & VPN
1x RS485 MPI-/PROFIBUS-DP interface
4x LAN RJ45 Ethernet interface
1x WAN RJ45 Ethernet interface
 [Datasheet]
 [Manual]

900-2H682

TM-H Router VPN/HSPA/Ethernet/MPI  [Datasheet]
 [Manual]

900-0AB50

TM antenna GSM/UMTS

910-1EN50

Industrial-Switch EN5-R
5x RJ45 10/100BaseTX full / half Duplex␍
Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition
Redundant power supply for 12-45 VDC
IP30 aluminium housing for DIN rail mounting
 [Manual]

910-1EN80

Industrial-Switch EN8-R
8x RJ45 10/100BaseTX full / half Duplex␍
Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition
Redundant power supply for 12-45 VDC
IP30 aluminium housing for DIN rail mountin
 [Manual]
911-2PN50 Industrial-Switch PN5-RD␍
PROFINET v2 Conformance Class B
Profinet diagnosis via GSD integration
Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP
Port mirroring
PROFINET I/O parameters, I/O cyclic data, DCP, DHCP
Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍
 [Manual]
911-2PN80 Industrial-Switch PN8-RD
PROFINET v2 Conformance Class B
Profinet diagnosis via GSD integration
Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP
Port mirroring
PROFINET I/O parameters, I/O cyclic data, DCP, DHCP
Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍
 [Manual]
920-1BB10 Profibus-Repeater B1
Transparent for all PROFIBUS DP protocols ␍
1 segment and 31 deivces per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on the baud rate)␍
No Profibus address required
 [Manual]
920-1BD10 Profibus-Repeater D1 IP66
Screw terminal and DB9 plug connector
Integrated terminators (disconnectable)
Redundant power supply
 [Manual]
920-1CA50 MultiRepeaterA5
5 segmente and 31 divces per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on baud rate)␍
Integrated terminators (disconnectable)
 [Manual]
920-1CB20 Profibus-MultiRepeaterB2-R
2 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)
1200 m segment length (depending on baud rate)
Integrated terminators (disconnectable)
telegram check (integrity check)
Alarm contact and Redundant power supply
 [Manual]
920-1CB50 Profibus-MultiRepeaterB5-R
5 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on baud rate)␍
Integrated terminators (dis-connectable)
Alarm contact
Redundant power supply
 [Manual]
920-1DB50 Profibus-MultiRepeater B5-R
5 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)
1200 m segment length (depending on the baud rate)
Integrated terminators (disconnectable)
Alarm contact and Redundant power supply
 [Manual]
921-1EB50 Profibus-MultiRepeaterB5-R
Changes at the speed in the ongoing operation
Screw and DB9 terminal
Grounding option configurable
Integrated terminators
Redundant power supply
 [Manual]
924-1BB10 Profibus-TermT1
9,6 Kbps up to 12 Mbps
Removable screw terminals and 1 DB9 terminal
Power supply specifications
Redundancy: current 1 OR 2
Diagnostic LEDs
 [Manual]
