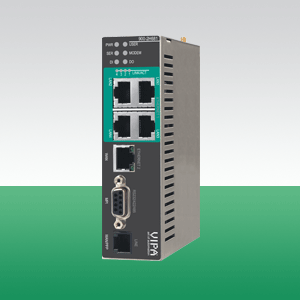

Коммуникационный модуль TM-H HSDPA Router VPN, встроенный 4-диапазонный модем HSDPA/HSUPA, интерфейсы: MPI/PROFIBUS DP, 4xLAN Ethernet (RJ45), 1xWAN Ethernet (RJ45), гнездо для SIM-карты
|
Наименование
|
TM-H Router VPN |
|
Габарит
|
39 х 129 х 108 мм |
|
Вес
|
480 г |
|
Температура окружающей среды
|
работа: -20…+70°С |
|
Серия
|
Communication module |
 |
|

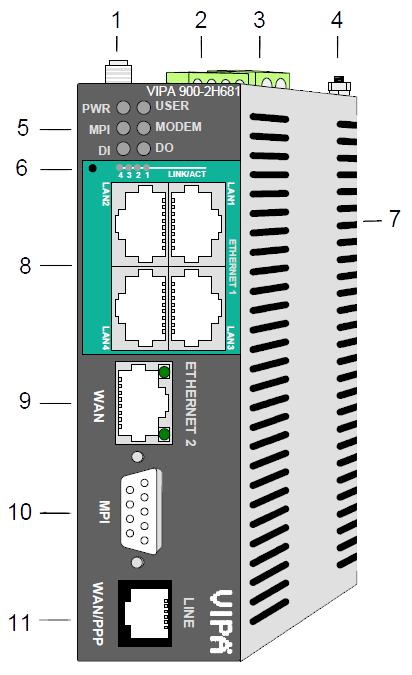

| Label | Color | Meaning |
| PWR | green | Power supply is active. |
| USER | green | blinks: The TM module is ready for communication (ca. 20s after PowerOn). |
| red |
blinks: IP address not valid (just exist). |
|
| red/green |
blinks alternating: The TM module is just waiting for an IP address during boot-up. |
|
| MPI | green |
blinks: The TM module is communicating with the PLC via MPI. |
| MODEM | green |
on: The modem of the TM module is active. |
| DI | green |
on: The digital input of the TM module is "1". |
| DO | green |
on: The digital output of the TM module is "1". |

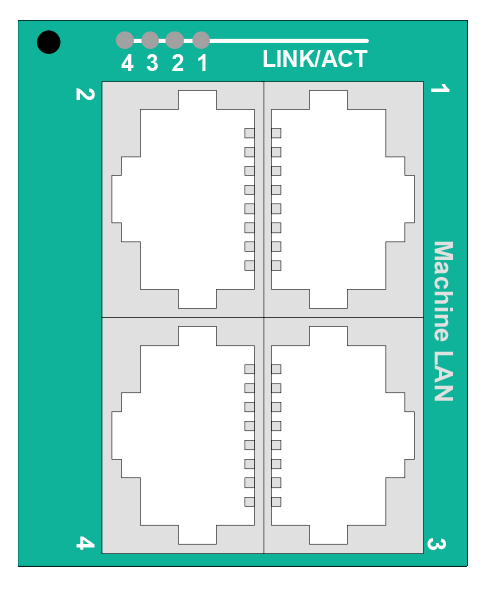

| RJ45 Ethernet LAN interface |
Color/Activity | Meaning |
 |
off | no connection |
| green | LINK: Connection | |
| blinks green |
ACT: Communication |
| RJ45 Ethernet WAN interface |
Assignment | |
 |
|
|
| LINK | on: Das TM is physically connected to the Ethernet. | |
| ACT |
blinks: The TM communicates via Ethernet (Activity) |
|
|
MPI/PROFIBUS DP |
Assignment | |
 |
|
|
Connector power supply |
Pin | Name | Meaning |
 |
2 | 12-24V DC | DC 12 ... 24V ±20% |
| 1 | GND | Ground power supply | |
|
Connector digital I/O |
|||
 |
5 | DI | Digital input DC 0/24V "0": 0 ... 5V DC "1": 10V ... 30V DC |
| 4 | DI_GND | DI ground (isolated) | |
| 3 | DO_VDC | DO load voltage DC 24V | |
| 2 | DO | Digital output DC 24V, 0.2A Low-side output |
|
| 1 | DO_GND |
DO ground |
 |
Компактная антенна GSM/UMTS900-0AB50 кабель 5 м, соединитель SMA (вилка) |
|
Штыревая антенна GSM/GPRS900-0AQ51 кабель 5 м, соединитель SMA (вилка) |
Order no. |
900-2H682 |
| Type | - |
General information |
|
| Note | - |
| Features | - |
Inputs and outputs |
|
| Inputs | - |
| Outputs | - |
Communication |
|
| serial port | - |
| LAN | 4 x RJ45, 10/100 MBit/s Switch |
| WAN | 1 x RJ45, 10/100 MBit/s |
| Modem type | HSUPA |
Router |
|
| Router functions | IP-Forwarding IP-Filter NAT Port-Forwarding Routing Table DHCP-Client |
| RAS | PPP Dial-In PPP Dial-Out Call-Back |
VPN |
|
| VPN mode | - |
| Talk2M | - |
| Gateway protocols | MPI PPI PROFIBUS ISO TCP Modbus TCP |
Services |
|
| Server services | FTP HTTP |
| Client Services | FTP SMTP NTP DYNDNS SNMP |
Data management |
|
| Custom Website | - |
| Project | web interface |
| Integrated protocols | MPI MPI PROFIBUS ISO TCP Modbus TCP |
Interrupts |
|
| Alarm message | EMail SMS SNMP FTP |
| Alarm | EMail Hardware I/O SMS PLC-variables SNMP system variables FTP |
Housing |
|
| Material | - |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 39 " x 129 " x 108 " |
| Weight | 480 g |
Environmental conditions |
|
| Operating temperature | -20 °C to 70 °C |
| Storage temperature | - |
Certifications |
|
| UL certification | - |
| KC certification | - |
| Order no. | Name/Description | |
|---|---|---|
|
900-2C510 |
TM-C VPN Router WAN/LAN 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN) 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
 [Datasheet] [Manual] |
|
900-2C520 |
TM-C VPN Router WIFI/WAN/LAN WIFI interface for connection to a WIFI network 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN) 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
[Datasheet] [Manual] |
|
900-2C580 |
TM-C VPN Router 3G+/WAN/LAN 3G+ modem for external broadband communication 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)␍ 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
[Datasheet] [Manual] |
|
900-2C610 |
TM-C Router For teleservice through broadband connection via Talk2M 1x RS485 MPI-/PROFIBUS-DP interface 4x LAN RJ45 Ethernet interface 1x WAN RJ45 Ethernet interface |
[Datasheet] [Manual] |
|
900-2H611 |
TM-H Router VPN For teleservice through a broadband connection via Talk2M & VPN 1x RS485 MPI-/PROFIBUS-DP interface 4x LAN RJ45 Ethernet interface 1x WAN RJ45 Ethernet interface |
[Datasheet] [Manual] |
|
900-2H682 |
TM-H Router VPN/HSPA/Ethernet/MPI | [Datasheet] [Manual] |
|
