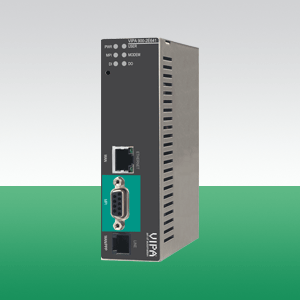

Коммуникационный модуль TM-E Analog, интерфейсы PSTN (телефонная линия), MPI, Ethernet (RJ45), встроенный роутер, 1xDI 24 В пост. тока, 1xDO 24 В/0,2 A пост. тока, питание 12...24 В пост. тока, ПО конфигурирования TM-Config-Tool (CD)
|
Наименование
|
TM-E Analog |
|
Габарит
|
39 х 129 х 108 мм |
|
Вес
|
400 г |
|
Температура окружающей среды
|
работа: -0…+50°С хранение: -25…+70°С |
|
Серия
|
Communication module |
 |
|

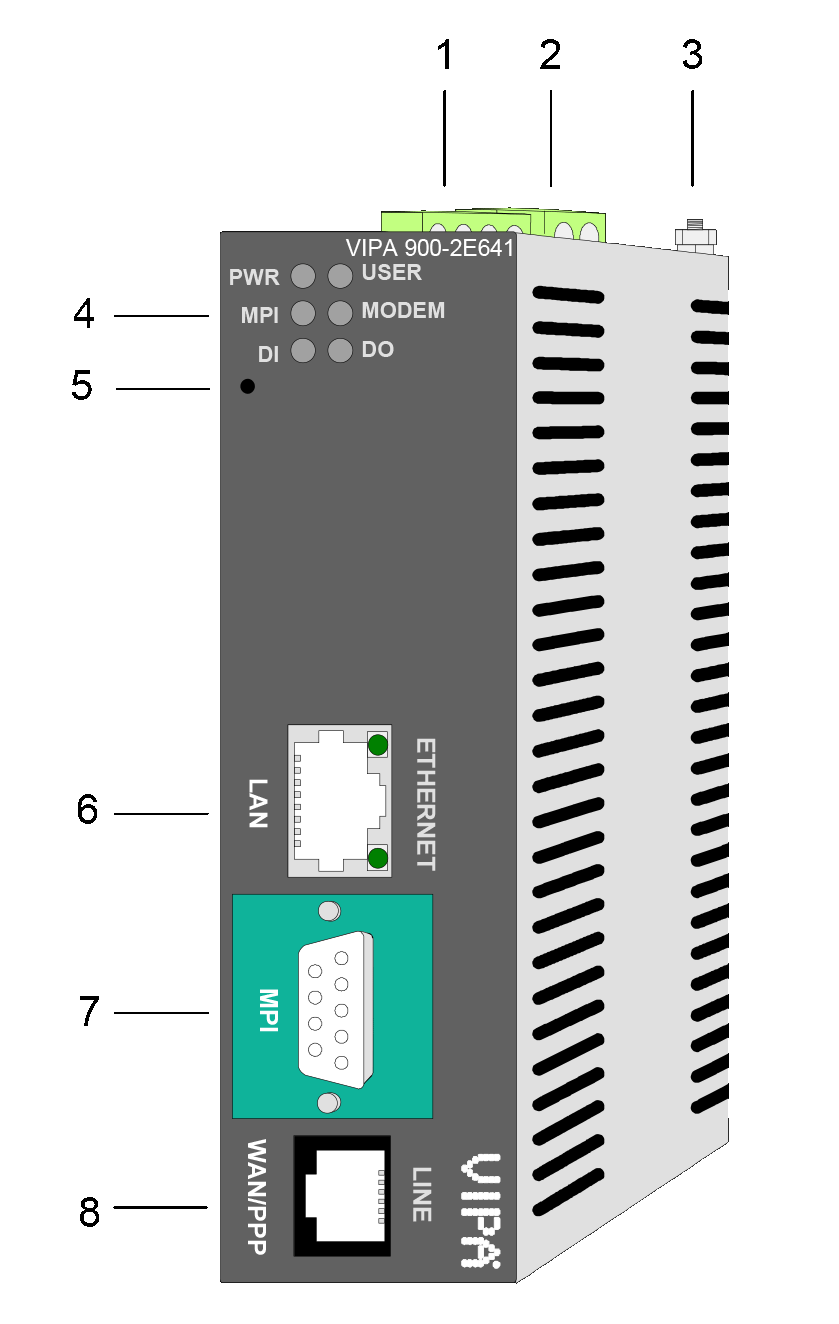

| Label | Color | Meaning |
| PWR | green | Power supply is active. |
| USER | green | blinks: The TM module is ready for communication (ca. 20s after PowerOn). |
| red |
blinks: IP address not valid (just exist). |
|
| red/green |
blinks alternating: The TM module is just waiting for an IP address during boot-up. |
|
| MPI | green |
blinks: The TM module is communicating with the PLC via MPI. |
| MODEM | green |
on: The modem of the TM module is active. |
| DI | green |
on: The digital input of the TM module is "1". |
| DO | green |
on: The digital output of the TM module is "1". |

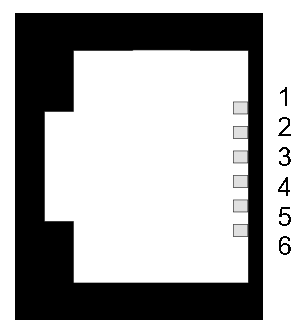

| RJ45 Ethernet interface |
Assignment | |
 |
|
|
| LINK | on: Das TM is physically connected to the Ethernet. | |
| ACT |
blinks: The TM communicates via Ethernet (Activity) |
|
|
MPI/PROFIBUS DP |
Assignment | |
 |
|
|
MPI/PROFIBUS DP |
Assignment | |
 |
|
|
Connector power supply |
Pin | Name | Meaning |
 |
2 | 12-24V DC | DC 12 ... 24V ±20% |
| 1 | GND | Ground power supply | |
|
Connector digital I/O |
|||
 |
5 | DI | Digital input DC 0/24V "0": 0 ... 5V DC "1": 10V ... 30V DC |
| 4 | DI_GND | DI ground (isolated) | |
| 3 | DO_VDC | DO load voltage DC 24V | |
| 2 | DO | Digital output DC 24V, 0.2A Low-side output |
|
| 1 | DO_GND |
DO ground |
Order no. |
900-2E641 |
| Type | TM-E Analog Router - VPN |
General information |
|
| Note | - |
| Features | For direct point to point teleservice via analog line or Talk2M & VPN 1x RS485 MPI-/PROFIBUS-DP interface 1x LAN RJ45 Ethernet interface 1x integrated PSTN modem |
Inputs and outputs |
|
| Inputs | 1 DI: 0/24 V DC, isolated |
| Outputs | 1 DO: open drain, max. 200 mA at DC 30 V |
Communication |
|
| serial port | MPI/PROFIBUS, isolated, up to 12 MBit/s |
| LAN | 1 x RJ45, 10/100 MBit/s |
| WAN | - |
| Modem type | PSTN / analog |
Router |
|
| Router functions | IP-Forwarding IP-Filter NAT Port-Forwarding Routing Table DHCP-Client |
| RAS | PPP Dial-In PPP Dial-Out Call-Back |
VPN |
|
| VPN mode | Open VPN 2.0, Client/Server |
| Talk2M |  |
| Gateway protocols | MPI PPI PROFIBUS ISO TCP Modbus TCP |
Services |
|
| Server services | FTP HTTP |
| Client Services | FTP SMTP NTP DYNDNS SNMP |
Data management |
|
| Custom Website | |
| Project | web interface |
| Integrated protocols | MPI PPI PROFIBUS ISO TCP Modbus TCP |
Interrupts |
|
| Alarm message | EMail SMS SNMP FTP |
| Alarm | EMail Hardware I/O SMS PLC-variables SNMP system variables FTP |
Housing |
|
| Material | - |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 39 mm x 129 mm x 108 mm |
| Weight | 400 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | - |
