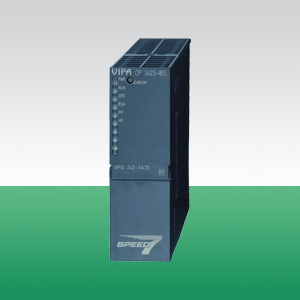

Процессор коммуникационный - CP 342S DP, INTERBUS-DP master, RS422 - интерфейс, установка на SPEED-bus шину
|
Наименование
|
CP 342S IBS |
|
Тип
|
342-1IA70 |
|
Описание
|
Используется в системах VIPA 300S, для подключения дополнительных устройств по сети Interbus, RS422 - интерфейс, Interbus - master |
|
Габаритные размеры, В х Ш х Г, мм
|
40 mm x 125 mm x 120 mm |
|
Сайт производителя
|
www.vipa.de |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Серия
|
300S |
|
Тип интерфейса (электрический)
|
RS422 |
| Модуль CP | Описание | Интерфейс RS232 | Описание | Интерфейс RS422 | Описание | |||
 |
|
 |
|
 |
|
Индикация состояния CP
|
PW |
RUN green |
ERR red |
BSA yellow |
PF yellow |
HF yellow |
Meaning |
| ○ | ○ | ○ | ○ | ○ | ○ |
Module is not power supplied |
| ● | ● | ○ | ○ | ○ | ○ |
Interbus is ready for data transfer |
| ● | ☼ | ○ | ○ | ○ | ○ |
Interbus is active, bus parameters are transferred, bus is checked. |
| ● | ☼ | ● | ○ | ○ | ○ |
At least 1 slave is missing or bus error. |
| ● | X | ● | ● | ○ | ○ |
At least 1 segment of the subordinate bus is switched off. |
| ● | ● | ● | ○ | ● | ○ |
Peripheral fault at a subordinate bus member |
| ● | X | ● | ○ | ○ | ● |
Error in CP 342S-IBS |
on: ● off: ○ flashing: ☼ irrelevant: X
Order no. |
342-1IA70 |
| Type | CP 342S IBS, INTERBUS master SPEED-Bus |
General information |
|
| Note | - |
| Features | INTERBUS master, SPEED-Bus RS422 Diagnostics via LEDs, RS232, Mini-DIN, Dual Port Master Up to 512 slaves connectable |
| SPEED-Bus |  |
Current consumption/power loss |
|
| Current consumption from backplane bus | 600 mA |
| Power loss | 3 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | no |
| Diagnostics information read-out | none |
| Supply voltage display | green LED |
| Group error display | yes |
| Channel error display | none |
Functionality Sub-D interfaces |
|
| Type | IBS |
| Type of interface | RS422 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | - |
| MP²I (MPI/RS232) | - |
| Point-to-point interface | - |
| Type | DIAG 1 |
| Type of interface | RS232 |
| Connector | Sub-D, 9-pin, male |
| Electrically isolated | |
| MPI | - |
| MP²I (MPI/RS232) | - |
| Point-to-point interface | |
Functionality RJ45 interfaces |
|
| Type | - |
| Type of interface | - |
| Connector | - |
| Electrically isolated | - |
| PG/OP channel | - |
| Number of connections, max. | - |
| Productive connections | - |
| Type | - |
| Type of interface | - |
| Connector | - |
| Electrically isolated | - |
| PG/OP channel | - |
| Number of connections, max. | - |
| Productive connections | - |
Housing |
|
| Material | PPE |
| Mounting | DIN rail SPEED-Bus |
Mechanical data |
|
| Dimensions (WxHxD) | 40 mm x 125 mm x 120 mm |
| Weight | 260 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
| Order no. | Name/Description | |
|---|---|---|
|
341-1AH01 |
CP 341 - Communication processor␍ RS232, isolated Function compatibility to Siemens CP 341 Parameterization via the Siemens parameterization package Data transfer rate up to 76.8 kbit/s Power supply via backplane bus |
 [Datasheet] [Manual] |
|
341-1CH01 |
CP 341 - Communication processor␍ RS422/485, isolated Function compatibility to Siemens CP 341 Parameterization via the Siemens parameterization package Data transfer rate up to 76.8 kbit/s Power supply via backplane bus |
[Datasheet] [Manual] |
|
341-2CH71 |
CP 341S - Communication processor - SPEED-Bus␍ 2x RS422/485, isolated SPEED-Bus Data transfer rate up to 115.2 kbit/s Integrated diagnostics buffer |
[Datasheet] [Manual] |
|
342-1CA70 |
CP 342S CAN - CANopen master - SPEED-Bus␍ CANopen master, SPEED-Bus 125 CAN slaves connectable 40 Transmit PDOs, 40 Receive PDOs 1 SDO (Server), 127 SDO (Client) Project engineering: VIPA WinCoCT |
[Datasheet] [Manual] |
|
342-1DA70 |
CP 342S DP - PROFIBUS-DP master - SPEED-Bus␍ PROFIBUS-DP master (Class 1), SPEED-Bus RS485 124 DP slaves connectable Project engineering: Siemens SIMATIC Manager Diagnostic facilities |
[Datasheet] [Manual] |
|
342-1IA70 |
CP 342S IBS - INTERBUS master - SPEED-Bus␍ INTERBUS master, SPEED-Bus RS422 Diagnostics via LEDs, RS232, Mini-DIN, Dual Port Master Up to 512 slaves connectable |
[Datasheet] [Manual] |
|
342-2IA71 |
CP 342S IBS - INTERBUS master - SPEED-Bus␍ Dual INTERBUS master, SPEED-Bus 2x RS422 Diagnostics via LEDs, diagnostics device (2x RJ45), Dual Port Master Up to 512 slaves connectable |
[Datasheet] [Manual] |
|
343-1EX71 |
CP 343S TCP/IP - Ethernet-CP 343 - SPEED-Bus␍ Ethernet CP 343S-NET, SPEED-Bus RJ45 16 connections via Siemens NetPro 64 connections via user program 32 PG/OP connections |
[Datasheet] [Manual] |
|
343-2AH10 |
CP 343-2P ASI - AS-i master Up to 62 slaves connectable Corresponding to AS-i specification 3.0 (master profile M3) Support of analog slaves concerning profile 7.3 resp. 7.4 Automatic address programming possible (address 0) |
[Datasheet] [Manual] |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
