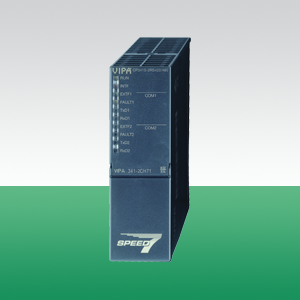

Процесор коммуникационный - CP 341, 2xRS422/485 интерфейсы, установка на SPEED-bus шину
|
Наименование
|
CP 341S |
|
Тип
|
341-2CH71 |
|
Описание
|
Используется в системах VIPA 300S, для подключения дополнительных устройств по RS-485/422 |
|
Габаритные размеры, В х Ш х Г, мм
|
40 mm x 125 mm x 120 mm |
|
Сайт производителя
|
www.vipa.de |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Серия
|
300S |
|
Тип интерфейса (электрический)
|
RS485/RS422 |
| Интерфейс RS-422/485 | Pin | Designation | Input / Output | Signal description |
 |
1 |
n.c. |
--- |
|
| 2 | T(B)+ | Output |
Send data (four-wire) |
|
| 3 |
R(B)+ |
Input |
Receive data (four-wire) |
|
| 4 |
RTS |
Output |
Request to send: |
|
| 5 | M5V (GND_ISO) | Output |
Ground isolated |
|
| 6 | P5V (+5V_ISO) | Output |
5V isolated |
|
| 7 |
T(A)- |
Output |
Send data (four-wire) |
|
| 8 |
R(A)- |
Input |
Receive data (four-wire) |
|
| 9 | n.c. | --- |

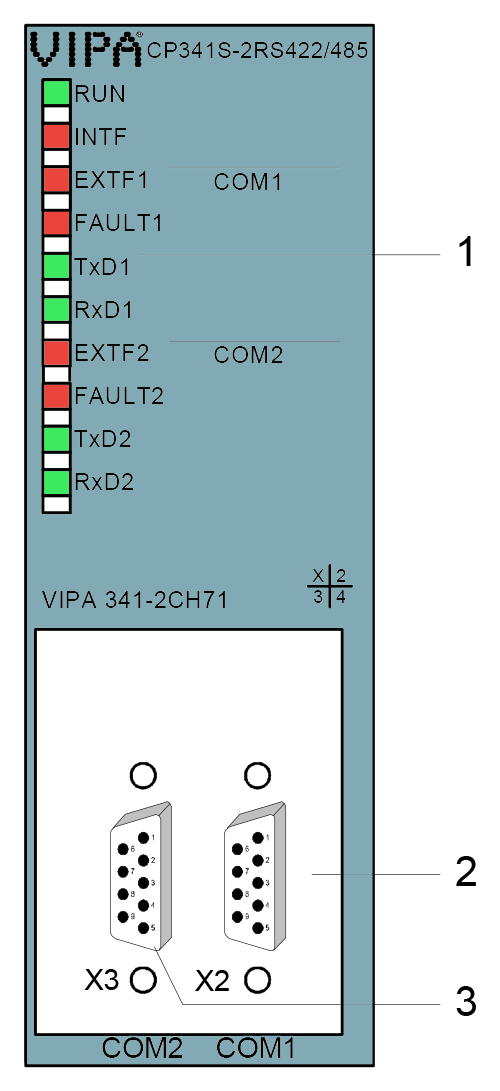

| Индикация состояния CP | Модуль CP | Описание | |
|
RUN Blinks at start-up and firmware-update. On at ready for communication INTF On at an internal error of the module. If this error just exists after PowerON, EXTF1 On while wire break at COM1. FAULT1 On if COM1 is without parameters. Blinks if COM1 has wrong parameters. TxD1 On if CP is sending user data via COM1 RxD1 On if CP is receiving user data via COM1 EXTF2 On while wire break at COM2. FAULT2 On if COM2 is without parameters. Blinks if COM2 has wrong parameters. TxD2 On if CP is sending user data via COM2. RxD2 On if CP is receiving user data via COM2. |
 |
|
|
| |
Order no. |
341-2CH71 |
| Type | CP 341 |
General information |
|
| Note | - |
| Features | 2x RS422/485, isolated SPEED-Bus Data transfer rate up to 115.2 kbit/s Integrated diagnostics buffer |
| SPEED-Bus |  |
Current consumption/power loss |
|
| Current consumption from backplane bus | 750 mA |
| Power loss | 3.75 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | yes, parameterizable |
| Diagnostics information read-out | possible |
| Supply voltage display | none |
| Group error display | yes |
| Channel error display | red LED per channel |
Functionality Sub-D interfaces |
|
| Type | X2 |
| Type of interface | RS422/485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | - |
| MP²I (MPI/RS232) | - |
| Point-to-point interface | |
| Type | X3 |
| Type of interface | RS422/485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | - |
| MP²I (MPI/RS232) | - |
| Point-to-point interface | |
Point-to-point communication |
|
| PtP communication | |
| Interface isolated | |
| RS232 interface | - |
| RS422 interface | |
| RS485 interface | |
| Connector | Sub-D, 9-pin, female |
| Transmission speed, min. | 150 bit/s |
| Transmission speed, max. | 115.2 kbit/s |
| Cable length, max. | 1200 m |
Point-to-point protocol |
|
| ASCII protocol | |
| STX/ETX protocol | |
| 3964(R) protocol | - |
| RK512 protocol | - |
| USS master protocol | - |
| Modbus master protocol | - |
| Modbus slave protocol | - |
| Special protocols | - |
Datasizes |
|
| Input bytes | 32 |
| Output bytes | 32 |
| Parameter bytes | 75 |
| Diagnostic bytes | 0 |
Housing |
|
| Material | PPE |
| Mounting | DIN rail SPEED-Bus |
Mechanical data |
|
| Dimensions (WxHxD) | 40 mm x 125 mm x 120 mm |
| Weight | 185 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
