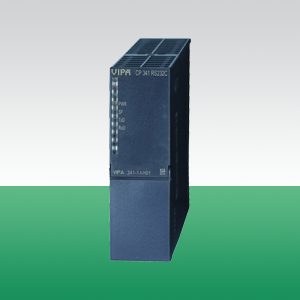

Процесор коммуникационный - CP 341, RS-232 интерфейс
|
Наименование
|
CP 341 |
|
Тип
|
341-1AH01 |
|
Описание
|
Используется в системах VIPA 300S, для подключения дополнительных устройств по RS-232 |
|
Габаритные размеры, В х Ш х Г, мм
|
40 mm x 125 mm x 120 mm |
|
Сайт производителя
|
www.vipa.de |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Серия
|
300S |
|
Тип интерфейса (электрический)
|
RS232 |

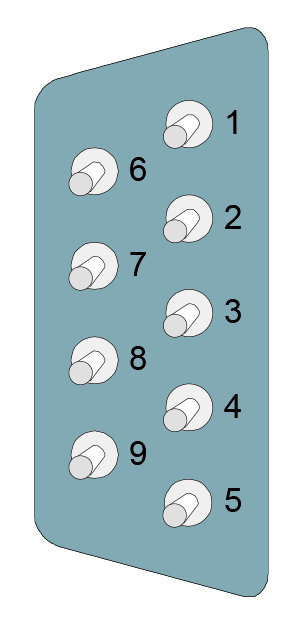

| Интерфейс RS-232 | Pin | Designation | Input / Output | Signal description | |
 |
1 | DCD |
Data Carrier |
Input |
Carrier signal when |
| 2 | RxD | Receive Data | Input |
Received data: |
|
| 3 | TxD | Transmit Data | Output |
Transmitted Data: |
|
| 4 | DTR |
Data Terminal |
Output | CP is ready. | |
| 5 | GND | Signal Ground | - |
GND (GND_ISO) |
|
| 6 | DSR | Data Set Ready | Input |
"ON": Communication partner |
|
| 7 | RTS |
Request to |
Output |
RTS "ON": CP clear to send |
|
| 8 | CTS | Clear to send | Input |
Communication partner can |
|
| 9 | RI | Ring indicator | Input | Ring indicator (modem) | |

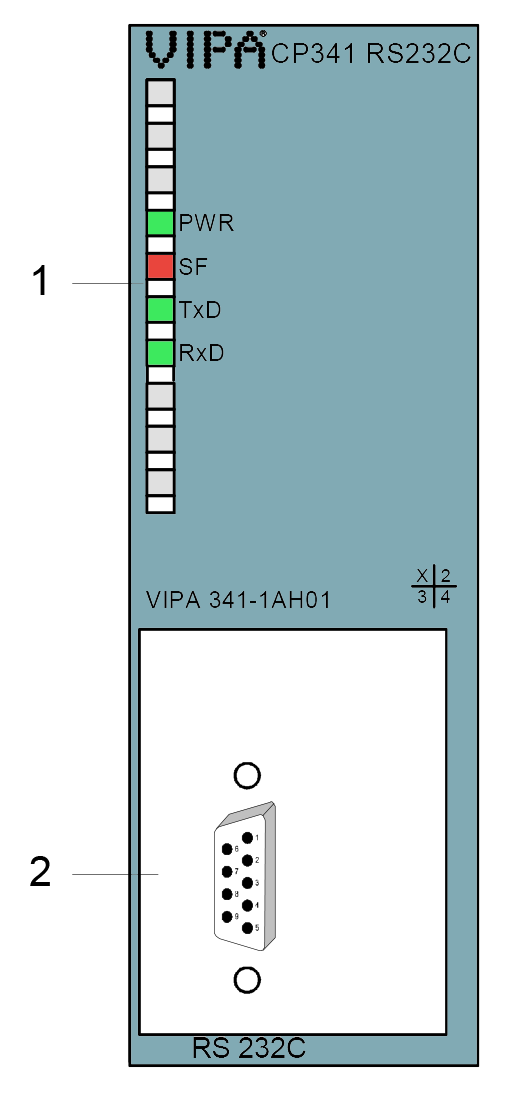

| Индикация состояния CP | Модуль CP | Описание | |
|
PWR Indicates that power is available SF Group alarm or re-parameterization in progress Group alarm lights up at: TxD Transmit data lights up when the CP is sending user data via the interface. RxD Receive data lights up when the CP is receiving user data via the interface. |
 |
|
|
Order no. |
341-1AH01 |
| Type | CP 341 |
General information |
|
| Note | - |
| Features | RS232, isolated Function compatibility to Siemens CP 341 Parameterization via the Siemens parameterization package Data transfer rate up to 76.8 kbit/s Power supply via backplane bus |
| SPEED-Bus | - |
Current consumption/power loss |
|
| Current consumption from backplane bus | 160 mA |
| Power loss | 0.8 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | yes, parameterizable |
| Diagnostic functions | no |
| Diagnostics information read-out | possible |
| Supply voltage display | yes |
| Group error display | red SF LED |
| Channel error display | none |
Functionality Sub-D interfaces |
|
| Type | X2 |
| Type of interface | RS232 |
| Connector | Sub-D, 9-pin, male |
| Electrically isolated |  |
| MPI | - |
| MP²I (MPI/RS232) | - |
| Point-to-point interface | |
| Type | - |
| Type of interface | - |
| Connector | - |
| Electrically isolated | - |
| MPI | - |
| MP²I (MPI/RS232) | - |
| Point-to-point interface | - |
Point-to-point communication |
|
| PtP communication | |
| Interface isolated | |
| RS232 interface | |
| RS422 interface | - |
| RS485 interface | - |
| Connector | Sub-D, 9-pin, male |
| Transmission speed, min. | - |
| Transmission speed, max. | 76.8 kbit/s |
| Cable length, max. | 15 m |
Point-to-point protocol |
|
| ASCII protocol | |
| STX/ETX protocol | |
| 3964(R) protocol | |
| RK512 protocol | - |
| USS master protocol | - |
| Modbus master protocol | |
| Modbus slave protocol | |
| Special protocols | - |
Datasizes |
|
| Input bytes | 16 |
| Output bytes | 16 |
| Parameter bytes | (16 + 106) |
| Diagnostic bytes | 4 |
Housing |
|
| Material | PPE |
| Mounting | Rail System 300 |
Mechanical data |
|
| Dimensions (WxHxD) | 40 mm x 125 mm x 120 mm |
| Weight | 170 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
| Order no. | Name/Description | |
|---|---|---|
|
341-1AH01 |
CP 341 - Communication processor␍ RS232, isolated Function compatibility to Siemens CP 341 Parameterization via the Siemens parameterization package Data transfer rate up to 76.8 kbit/s Power supply via backplane bus |
 [Datasheet] [Manual] |
|
341-1CH01 |
CP 341 - Communication processor␍ RS422/485, isolated Function compatibility to Siemens CP 341 Parameterization via the Siemens parameterization package Data transfer rate up to 76.8 kbit/s Power supply via backplane bus |
[Datasheet] [Manual] |
|
341-2CH71 |
CP 341S - Communication processor - SPEED-Bus␍ 2x RS422/485, isolated SPEED-Bus Data transfer rate up to 115.2 kbit/s Integrated diagnostics buffer |
[Datasheet] [Manual] |
|
342-1CA70 |
CP 342S CAN - CANopen master - SPEED-Bus␍ CANopen master, SPEED-Bus 125 CAN slaves connectable 40 Transmit PDOs, 40 Receive PDOs 1 SDO (Server), 127 SDO (Client) Project engineering: VIPA WinCoCT |
[Datasheet] [Manual] |
|
342-1DA70 |
CP 342S DP - PROFIBUS-DP master - SPEED-Bus␍ PROFIBUS-DP master (Class 1), SPEED-Bus RS485 124 DP slaves connectable Project engineering: Siemens SIMATIC Manager Diagnostic facilities |
[Datasheet] [Manual] |
|
342-1IA70 |
CP 342S IBS - INTERBUS master - SPEED-Bus␍ INTERBUS master, SPEED-Bus RS422 Diagnostics via LEDs, RS232, Mini-DIN, Dual Port Master Up to 512 slaves connectable |
[Datasheet] [Manual] |
|
342-2IA71 |
CP 342S IBS - INTERBUS master - SPEED-Bus␍ Dual INTERBUS master, SPEED-Bus 2x RS422 Diagnostics via LEDs, diagnostics device (2x RJ45), Dual Port Master Up to 512 slaves connectable |
[Datasheet] [Manual] |
|
343-1EX71 |
CP 343S TCP/IP - Ethernet-CP 343 - SPEED-Bus␍ Ethernet CP 343S-NET, SPEED-Bus RJ45 16 connections via Siemens NetPro 64 connections via user program 32 PG/OP connections |
[Datasheet] [Manual] |
|
343-2AH10 |
CP 343-2P ASI - AS-i master Up to 62 slaves connectable Corresponding to AS-i specification 3.0 (master profile M3) Support of analog slaves concerning profile 7.3 resp. 7.4 Automatic address programming possible (address 0) |
[Datasheet] [Manual] |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
