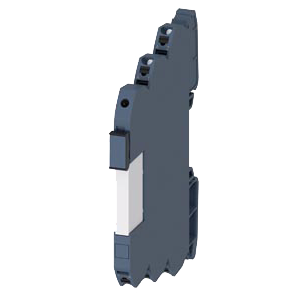

ВЫХОДНОЕ СОГЛАСУЮЩЕЕ УСТРОЙСТВО С ВТЫЧНЫМ РЕЛЕЙНЫМ МОДУЛЕМ 3RQ3118-2AM00

Изделие: 3RQ3118-2AM00


Краткое описание:
ВЫХОДНОЕ СОГЛАСУЮЩЕЕ УСТРОЙСТВО С ВТЫЧНЫМ РЕЛЕЙНЫМ МОДУЛЕМ, 1 П КОНТАКТ, 24В DC, ШИРИНА 6.2 MM, ПРУЖИННЫЕ КЛЕММЫ (PUSH IN)
Производитель: SIEMENS
Напряжение управления (V): 24 DC
Вес: 0.04 кг.
Розничная цена: 3823
БЫСТРЫЙ ЗАКАЗ

SIRUS 3RQ3 coupling relays in narrow design are used to connect control signals from and to a PLC, and they are available in different versions:

  • Coupling relays with relay output (not plug-in)
  • Coupling relays with plug-in relays
  • Coupling relays with semiconductor output (not plug-in)

Coupling relays with relay output (not plug-in)

AC and DC operation

IEC 60947‑5‑1, DIN EN 60947‑5‑1

The input and output coupling relays differ with regard to the positioning of the terminals and the LED.

Coupling relays with plug-in relays

AC and DC operation

IEC 60947‑1

These coupling relays are plug-in so that the relay can be replaced quickly at the end of its service life without detaching the wiring.

Coupling relays with semiconductor output (not plug-in)

AC and DC operation

IEC 60947‑1, EN 60664‑1 and EN 50005;
Coupling relays with semiconductor output: EN 60747-5;
programmable controllers: IEC 61131‑2

The input and output coupling relays differ with regard to the positioning of the terminals and the LEDs.

The coupling relays with semiconductor output have extremely high contact reliability, and are therefore particularly well suited for solid-state systems.

For test purposes, versions are available with manual-0-automatic switches.

Spring-type terminal with push-in functionality

Push-in connections are a form of spring-loaded terminals allowing fast wiring without tools for rigid conductors or conductors equipped with end sleeves.

As with other spring-type terminals, a screwdriver (with 3.0 x 0.5 mm blade) is required to disconnect the conductor. The same tool can also be used to wire fine-stranded conductors with no end finishing.

The advantages of the push-in terminals are found, as with all spring-type terminals, in speed of assembly and disassembly and vibration-proof connection. There is no need for the checking and tightening required with screw terminals.

Note:

Conversion tool, e.g. from 3TX7 to 3RQ3, see http://www.siemens.com/sirius/conversion-tool.

Article No. scheme

Digit of the Article No.

1st - 4th
❒❒❒❒

5th

6th

7th


8th

9th

10th

11th

12th

Coupling relays in the new 6.2 mm enclosure

3RQ3



Function





Design and output type





Switching current at the output





Connection method





Contacts





Rated control supply voltage





Max. switchable voltage at the output





Contact variant



Example

3RQ3

1

1

8

1

A

M

0

0

Note:

The Article No. scheme is presented here merely for information purposes and for better understanding of the logic behind the article numbers.

Особенности
  • All versions with screw or spring-type terminals (push-in technology)
  • Top wiring with spring-type terminals (push-in) for fast and secure wiring.
  • Low space requirements in the control cabinet thanks to a consistent width of 6.2 mm
  • Reduced inventory due to low variance
  • Functional state of the coupling relay clearly indicated by green LED
  • Integrated reverse polarity protection and EMC arc-suppression diode
  • Uniform accessories throughout the entire 3RQ3 series
  • Integrated jumper option using connecting comb for all terminals
  • Galvanic isolation plate for isolating different voltages for neighboring units
  • Clip-on labels available as plotter matte paper for individual printing

Coupling relays with relay output (not plug-in)

  • Permanently soldered relays for increased contact reliability
  • Device variants with hard gold-plated contacts providing high contact reliability at low currents

Coupling relays with plug-in relays

  • Fast replacement of the relays with existing wiring
  • Tested complete units → lower assembly time
  • Individual relays available as spare parts
  • Device variants with hard gold-plated contacts providing high contact reliability at low currents

Coupling relays with semiconductor output (not plug-in)

  • Long service life as there is no mechanical wear
  • High switching frequency thanks to short make and break times
  • Insensitive to vibrations
  • No contact bounce
  • Maximum contact reliability
  • Noise-free switching
  • Low control power required
  • Switching of DC and capacitive loads
Область применения
  • Galvanic isolation between input and output circuit
  • Adjustment to different signal levels
  • Signal amplification

Motor control application example


Технические данные

Order number



3RQ3018-.AB0.
3RQ3018-.AE00
3RQ3018-.AF00
3RQ3038-.AB0.
3RQ3038-.AE0.
3RQ3038-.AF0.
3RQ3052-.SM50
3RQ3053-.SG30

3RQ30182A.080AA0

3RQ3050-.SM50
3RQ3052-.SM30
3RQ3052-.SM40
3RQ3055-.SM30
3RQ3070-.SB30

3RQ3065.SM30

3RQ3070.SG30

3RQ3118-.AB0.
3RQ3118-.AE0.
3RQ3118-.AF0.
3RQ3118-.AM0.

Width x Height x Depth



6.2 × 93 × 72.5

6.2 × 93 × 75

6.2 × 93 × 72.5

6.2 × 93 × 76

Insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 Rated value

V

300

50

--

300

maximum permissible voltage for safe isolation between control and auxiliary circuit

V

300

50

--

300

Ambient temperature















  • during operation

°C

-25 ... +60

-40 ... +70

-25 ... +60

  • during storage

°C

-40 ... +85

Protection class IP



IP20

Design of the fuse link for short-circuit protection of the auxiliary switch required



fuse gG: 4 A


Order number



3RQ3018-.AB0.
3RQ3038-.AB0.

3RQ3018-.AE00
3RQ3038-.AE0.

3RQ3018-.AF00
3RQ3038-.AF0.

3RQ30182AM080AA0

3RQ30182AN080AA0

Operating range factor control supply voltage rated value













  • at AC at 50 Hz



0.8 ... 1.25

0.8 ... 1.1

--

  • at DC



0.8 ... 1.25

0.8 ... 1.1

0.7 ... 1.25

Active power consumption

W

0.3

0.7

1

0.3

0.6

Thermal current

A

6


Order number



3RQ3118.AB0.

3RQ3118.AE0.

3RQ3118.AF0.

3RQ3118.AM0.

Operating range factor control supply voltage rated value











  • at AC at 50 Hz



0.8 ... 1.25

0.8 ... 1.1

--

  • at DC



0.8 ... 1.25

0.8 ... 1.1

0.8 ... 1.25

Active power consumption

W

0.3

0.7

1

0.3

Thermal current

A

6


Order number



3RQ3050.SM50

3RQ3052-.SM30
3RQ3052-.SM40

3RQ3052.SM50

3RQ3053.SG30

3RQ3055-.SM30
3RQ3065-.SM30

3RQ3070.SB30

3RQ3070.SG30

Operating range factor control supply voltage rated value

















  • at AC at 50 Hz



--

0.8 ... 1.1

--

0.8 ... 1.1

  • at DC



0.8 ... 1.25

0.8 ... 1.1

0.8 ... 1.25

0.8 ... 1.1

Active power consumption

W

0.3

0.25

0.3

0.7

Thermal current

A

0.5

2

3

5

0.5


Схема подключения

Coupling relays with relay output (not plug-in)

3RQ30.8

Coupling relays with plug-in relays

3RQ3118

Coupling relays with semiconductor output (not plug-in)

3RQ305.-.S.30

3RQ305.-.SM.0, 3RQ3070-.S.30

3RQ3052-.SM50

3RQ3065-.SM30

Дополнительная информация

The 3TX7014‑7B.0. replacement modules below are available as spare parts for 3RQ3118 coupling relays with plug-in relays. You will find these modules in the accessory ordering data.

Control supply voltage

Rated value

Contacts

Hard gold-plated

Number of CO contacts for auxiliary contacts

Coupling relay with plug-in relay

Replacement module

Type

Type

24 V DC

--

1

3RQ3118-.AM00

3TX7014-7BM00

3RQ3118-.AM01

3TX7014-7BM02

24 V AC/DC

--

1

3RQ3118-.AB00

3TX7014-7BM00

3RQ3118-.AB01

3TX7014-7BM02

115 V AC/DC

--

1

3RQ3118-.AE00

3TX7014-7BP00

3RQ3118-.AE01

3TX7014-7BP02

230 V AC/DC

--

1

3RQ3118-.AF00

3TX7014-7BP00

3RQ3118-.AF01

3TX7014-7BP02

-- = not available
✓ = available

ПЛАСТИНКА - РАЗДЕЛИТЕЛЬ ПОТЕНЦИАЛОВ
СОЕДИНИТЕЛЬНАЯ ШИНКА-ГРЕБЁНКА 2-ПОЛЮСНАЯ
СОЕДИНИТЕЛЬНАЯ ШИНКА-ГРЕБЁНКА 4-ПОЛЮСНАЯ
СОЕДИНИТЕЛЬНАЯ ШИНКА-ГРЕБЁНКА 8-ПОЛЮСНАЯ
СОЕДИНИТЕЛЬНАЯ ШИНКА-ГРЕБЁНКА 16-ПОЛЮСНАЯ
ТАБЛИЧКА ДЛЯ НАДПИСИ, 5X5MM,
ТАБЛИЧКА ДЛЯ НАДПИСИ, 6X12MM,
