Control Link - PM 007, DC 24 V, 10 A

PM 007, DC 24 V, 10 A

Краткое описание:

Модуль питания нагрузок, напряжение 24 В пост. тока, выходной ток 10 А (макс.)

Производитель: VIPA
Вес: 0.1 кг.

Розничная цена: 6987

Модуль питания нагрузок, напряжение 24 В пост. тока, выходной ток 10 А (макс.)

Наименование	Модуль питания PM 007
Тип	007-1AB00
Описание	PM 007 - модуль питания, DC 24V 10A
Габаритные размеры, В х Ш х Г, мм	12.9 mm x 109 mm x 76.5 mm
Температура окружающей среды	0 °C .. 60 °C
Максимальный ток	10 A

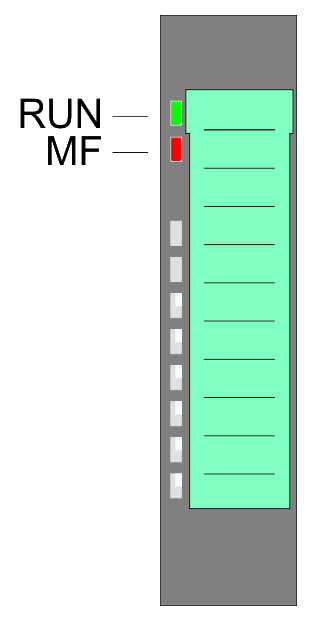

Status display

RUN	MF*	Description
green	red
●	○	DC 24V OK
●	●	Fuse defective
on: ● \| off: ○
*) This LED is only available on the power module with hardware release 1. Information concerning the hardware release may be found underneath the label strip.

Pin assignment

PM - Power module	Pos.	Function	Type	Description
	1	---	---	not connected
	2	DC 24V	I	Feed-in DC 24V power section supply
	3	0V	I	Feed-in ground GND power section supply
	4	---	---	not connected
	5	---	---	not connected
	6	DC 24V	O	DC 24V power section supply I/Os
	7	0V	O	ground GND power section supply I/Os
	8	---	---	not connected

I: Input, O: Output

Order no.	007-1AB00
Type	PM 007
Module ID	-
General information
Note	-
Features	Power supply DC 24 V, 10 A Reverse polarity protection Overvoltage protection
Technical data power supply
Input voltage (rated value)	DC 24 V
Input voltage (permitted range)	DC 20.4...28.8 V
Mains frequency (rated value)	-
Mains frequency (permitted range)	-
Input current (at 120 V)	-
Input current (at 230 V)	-
Inrush current	-
Power consumption	-
Output voltage (rated value)	24 V
Output current (rated value)	10 A
Power supply parallel switchable	-
Reverse polarity protection	yes
Overvoltage protection	36 V
Ripple of output voltage (max.)	-
Efficiency	-
Power loss	-
Status information, alarms, diagnostics
Status display	yes
Interrupts	no
Process alarm	no
Diagnostic interrupt	no
Diagnostic functions	no
Diagnostics information read-out	none
Supply voltage display	green LED
Group error display	red LED
Channel error display	none
Housing
Material	PPE / PPE GF10
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	12.9 mm x 109 mm x 76.5 mm
Weight	60 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL508 certification	yes

Order no.	Name/Description
007-0AA00	PM 007 - Power-Modul Power supply DC 24 V	[Datasheet]
007-1AB00	PM 007 - Power module Power supply DC 24 V, 10 A Reverse polarity protection Overvoltage protection	[Datasheet] [Manual] [STP]
007-1AB10	PM 007 - Power module Power supply DC 24 V, 4 A Power supply DC 24 V for bus supply 5 V, 2 A Reverse polarity protection Overvoltage protection	[Datasheet] [Manual] [STP]
