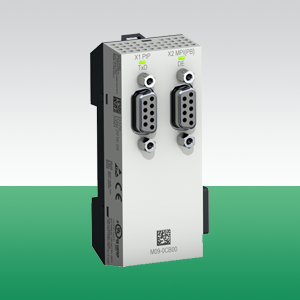

Изделие: M09-0CB00

Краткое описание:

Коммуникационный модуль IM M09, порт RS-485 (MPI, PROFIBUS Slave), порт RS-422/485 (ASCII, STX/ETX, 3964(R), USS master, Modbus master)

Производитель: VIPA
Вес: 0.1 кг.

Розничная цена: 50142

БЫСТРЫЙ ЗАКАЗ

IM M09 M09-0CB00

Коммуникационный модуль IM M09, порт RS-485 (MPI, PROFIBUS Slave), порт RS-422/485 (ASCII, STX/ETX, 3964(R), USS master, Modbus master)

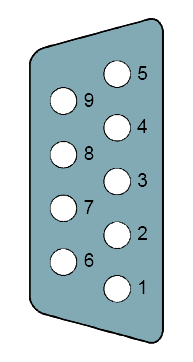

X1 PtP
	n. c. TxD-P (line B) - RS422 RxD-P (line B) - RS422 RxD/TxD-P (line B) - RS485 RTS M5V P5V TxD-N (line A) - RS422 RxD-N (line A) - RS422 RxD/TxD-N (line A) - RS485 n.c.
	Send activity
	No send activity

X2 MPI(PB)
	n. c. n. c. RxD/TxD-P (line B) RTS M5V P5V n. c. RxD/TxD-N (line A) n.c.
	Slave is in DE (data exchange) Slave exchanges data with the master. Slave is in RUN state
	Slave CPU is in state start-up. Slave-CPU is without master.
	There is no power supply. Slave has no configuration.

Order no.	M09-0CB00
Type	Micro Extension 2xRS485
Module ID	-
General information
Note	-
Features	Interface [1x RS422/RS485]: PtP: ASCII, STX/ETX, 3964(R), USS Master, Modbus Master/SlaveInterface [1x RS485]: MPI, PROFIBUS Slave
Housing
Material	PPE / PPE GF10
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	35 mm x 88 mm x 26 mm
Net weight	54 g
Weight including accessories	54 g
Gross weight	64 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL certification	in preparation
KC certification	in preparation

Order no.	Name/Description

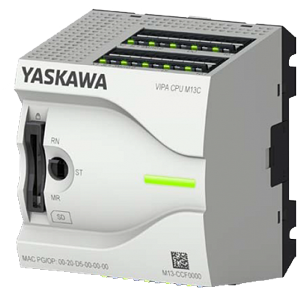

M13-CCF0000	CPU M13C - powered by SPEED7 SPEED7 technology 16 x DI, 12 x DO, 2 x AI, from which are 4 input channels parameterizable for counters and frequency measurement and 2 Output channels for PWM 64 kB work memory Memory extension (max. 128 kB) optionell PROFIBUS-DP slave / PtP (switchable)	[Datasheet] [Manual] [STP]
M21-1BH00	SM M21 - Digital input 16 inputs	[Datasheet] [Manual] [STP]
M22-1BH00	SM M22 - Digital output 16 outputs Output current 0.5 A	[Datasheet] [Manual] [STP]
M23-1BH00	SM M23 - Digital output 8 inputs 8 outputs Output current 0.5 A	[Datasheet] [Manual] [STP]
M09-0CB00	Micro Extension 2xRS485 Interface [1x RS422/RS485]: PtP: ASCII, STX/ETX, 3964(R), USS Master, Modbus Master/SlaveInterface [1x RS485]: MPI, PROFIBUS Slave	[Datasheet] [Manual] [STP]
