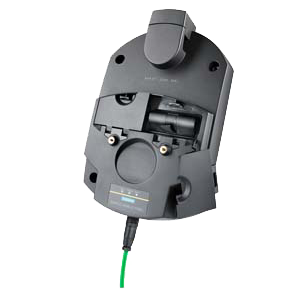

ЗАРЯДНАЯ СТАНЦИЯ ДЛЯ МОБИЛЬНЫХ ПАНЕЛЕЙ MOBILE PANEL 277(F) IWLAN С БЛОКИРОВКОЙ ПРИ ЗАРЯДКЕ И ДЕРЖАТЕЛЕМ МОБИЛЬНОЙ ПАНЕЛИ MOBILE PANEL 277(F) IWLAN, ЗАРЯДКА ДВУХ ЗАПАСНЫХ БАТАРЕЙ
|
Order number |
6AV6671-5CE00-0AX1 | |
|---|---|---|
|
CHARGINGST. MOBILE PANEL277(F)IWLAN V2 | ||
|
Supply voltage |
|
|
|
Type of supply voltage |
24 V DC |
|
|
Rated value (DC) |
24 V |
|
|
permissible range, lower limit (DC) |
19.2 V |
|
|
permissible range, upper limit (DC) |
28.8 V |
|
|
Input current |
|
|
|
Current consumption (rated value) |
3.2 A |
|
|
Power |
|
|
|
Power consumption, typ. |
77 W |
|
|
Degree and class of protection |
|
|
|
Enclosure according to EN 60529 |
IP65 |
|
|
Standards, approvals, certificates |
|
|
|
Certifications |
CE, cULus, C-TICK |
|
|
CE mark |
Yes |
|
|
cULus |
Yes |
|
|
RCM (formerly C-TICK) |
Yes |
|
|
Ambient conditions |
|
|
|
Ambient temperature during operation |
|
|
|
0 to +40 °C |
|
|
0 °C |
|
|
40 °C |
|
|
Ambient temperature during storage/transportation |
|
|
|
-20 °C |
|
|
60 °C |
|
|
Relative humidity |
|
|
|
85 % |
|
|
Dimensions |
|
|
|
Width |
208 mm |
|
|
Height |
333 mm |
|
|
Depth |
75 mm |
|
|
Weights |
|
|
|
Weight (without packaging) |
1.1 kg |
|
|
Other |
|
|
|
Usable in the following products |
|
|
|
6AV6645-0EB01-0AX1 |
|
|
6AV6645-0EC01-0AX1 |
|
|
6AV6645-0EF01-0AX1 |
|
|
6AV6645-0GB01-0AX1 |
|
|
6AV6645-0GC01-0AX1 |
|
|
6AV6645-0GF01-0AX1 |
|
|
6AV6645-0DD01-0AX1 |
|
|
6AV6645-0DE01-0AX1 |
|
|
6AV6645-0FD01-0AX1 |
|
|
6AV6645-0FE01-0AX1 |
|
|
6AV6645-0DB01-0AX0 |
|
|
6AV6645-0DC01-0AX0 |
|
|
6AV6645-0DD01-0AX0 |
|
|
6AV6645-0DE01-0AX0 |
|
