SIMATIC HMI, СТАНДАРТНАЯ СОЕДИНИТЕЛЬНАЯ КОРОБКА ДЛЯ МОБИЛЬНЫХ ПАНЕЛЕЙ, МОНТАЖ НА СТЕНЕ, ПОДДЕРЖКА ПРОТОКОЛОВ PROFINET И PROFISAFE, ПОДКЛЮЧЕНИЕ РЕЛЕ БЕЗОПАСНОСТИ, РАСПОЗНАВАНИЕ ТОЧКИ ПОДКЛЮЧЕНИЯ, ВСТРОЕННЫЙ КОММУТАТОР
|
Order number |
6AV2125-2AE13-0AX0 |
6AV2125-2AE23-0AX0 | |
|---|---|---|---|
|

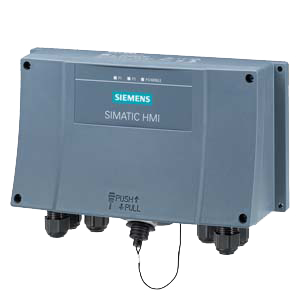

SIMATIC HMI CONNECTION BOX STANDARD |
SIMATIC HMI CONNECTION BOX ADVANCED | ||
|
General information |
|
|
|
|
Product type designation |
SIMATIC HMI connection box, standard |
SIMATIC HMI connection box, advanced |
|
|
Product function |
|
|
|
|
Yes |
Yes |
|
|
FH technology |
|
|
|
|
Safety evaluation through direct wiring |
|
|
|
|
No |
Yes |
|
|
Yes |
No |
|
|
Yes |
Yes |
|
|
Yes |
Yes |
|
|
Yes |
Yes |
|
|
Safety evaluation via PROFIsafe |
|
|
|
|
Yes |
Yes |
|
|
No |
Yes |
|
|
Yes |
Yes |
|
|
Yes |
Yes |
|
|
Yes |
Yes |
|
|
Installation type/mounting |
|
|
|
|
Wall mounting/direct mounting possible |
Yes |
Yes |
|
|
Control cabinet installation |
No |
No |
|
|
Supply voltage |
|
|
|
|
Type of supply voltage |
DC |
DC |
|
|
Rated value (DC) |
24 V |
24 V |
|
|
permissible range, lower limit (DC) |
19.2 V |
19.2 V |
|
|
permissible range, upper limit (DC) |
28.8 V |
28.8 V |
|
|
Input current |
|
|
|
|
Current consumption (rated value) |
96 mA |
95 mA |
|
|
Starting current inrush I²t |
0.15 A²·s |
0.16 A²·s |
|
|
Power |
|
|
|
|
Power consumption, typ. |
2.3 W |
2.3 W |
|
|
Interfaces |
|
|
|
|
Connection point identification |
Yes |
Yes |
|
|
PROFINET IO |
|
|
|
|
3 |
3 |
|
|
Industrial Ethernet |
|
|
|
|
3 |
3 |
|
|
3 |
3 |
|
|
Protocols |
|
|
|
|
PROFINET |
Yes |
Yes |
|
|
IRT |
No |
Yes |
|
|
MRP |
No |
Yes |
|
|
PROFIsafe |
Yes |
Yes |
|
|
AS-Interface |
No |
No |
|
|
EIB/KNX |
No |
No |
|
|
Protocols (Ethernet) |
|
|
|
|
Yes |
Yes |
|
|
Yes |
Yes |
|
|
Yes |
Yes |
|
|
Yes |
Yes |
|
|
Yes |
Yes |
|
|
Further protocols |
|
|
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
Yes |
Yes |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
Yes |
Yes |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
EMC |
|
|
|
|
Emission of radio interference acc. to EN 55 011 |
|
|
|
|
No |
No |
|
|
No |
No |
|
|
Degree and class of protection |
|
|
|
|
IP65 (all-round) |
Yes |
Yes |
|
|
IP (at the front) |
IP65 |
IP65 |
|
|
IP degree of protection |
IP65 |
IP65 |
|
|
Standards, approvals, certificates |
|
|
|
|
CE mark |
Yes |
Yes |
|
|
cULus |
Yes |
Yes |
|
|
RCM (formerly C-TICK) |
Yes |
Yes |
|
|
KC approval |
Yes |
Yes |
|
|
Suitable for safety functions |
Yes |
Yes |
|
|
Marine approval |
|
|
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
Highest safety class achievable in safety mode |
|
|
|
|
PLe |
PLe |
|
|
SIL 3 |
SIL 3 |
|
|
Use in hazardous areas |
|
|
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
No |
No |
|
|
Ambient conditions |
|
|
|
|
Ambient temperature during operation |
|
|
|
|
0 °C |
0 °C |
|
|
55 °C |
55 °C |
|
|
Relative humidity |
|
|
|
|
90 % |
90 % |
|
|
Configuration |
|
|
|
|
Configuration software |
|
|
|
|
No |
No |
|
|
Yes; Optional |
Yes; Optional |
|
|
Yes; Optional |
Yes; Optional |
|
|
Yes; Optional |
Yes; Optional |
|
|
Mechanics/material |
|
|
|
|
Enclosure material (front) |
|||
|
Yes |
Yes |
|
|
No |
No |
|
|
No |
No |
|
|
Dimensions |
|
|
|
|
Width of the housing front |
230 mm |
230 mm |
|
|
Height of housing front |
145 mm |
145 mm |
|
|
Depth of housing |
76 mm |
76 mm |
|
|
Weights |
|
|
|
|
Weight without packaging |
0.72 kg |
0.72 kg |
|
|
Weight incl. packaging |
0.8 kg |
0.8 kg |
|
Мобильные панели с кнопкой аварийного останова могут быть подключены к цепи экстренной остановки оборудования посредством соединительной коробки. При нажатии на кнопку аварийной кнопки STOP на мобильной активируется функция экстренного останова. Кнопка аварийного останова на мобильной панели Mobile Panel дублирует, но не заменяет кнопку аварийного останова, постоянно размещенную на оборудовании.
