Модуль аналоговых входов AI 2x12Bit, мультивходы, U/I/R, термопара, термосопротивление
|
Наименование
|
SM 332 |
|
Тип
|
332-5HB01 |
|
Описание
|
Используется в системах VIPA 300S, для вывода аналоговых сигналов на управляющие механизмы. |
|
Габаритные размеры,
В х Ш х Г, мм
|
40 mm x 125 mm x 120 mm |
|
Сайт производителя
|
www.vipa.de |
|
Монтаж
|
Профильная рейка 390-xxxx |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Серия
|
300S |
|
Количество выходов
|
2 |
|
Тип выходного сигнала
|
U/I |

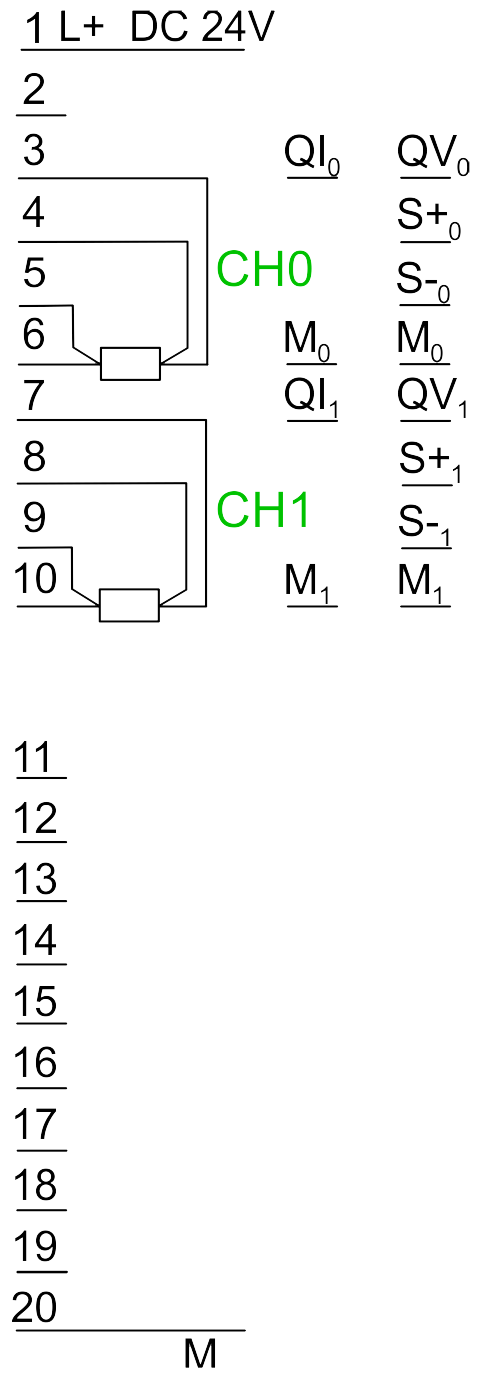

Pin assignment Circuit diagram Status monitor
| Pin |
Connection |

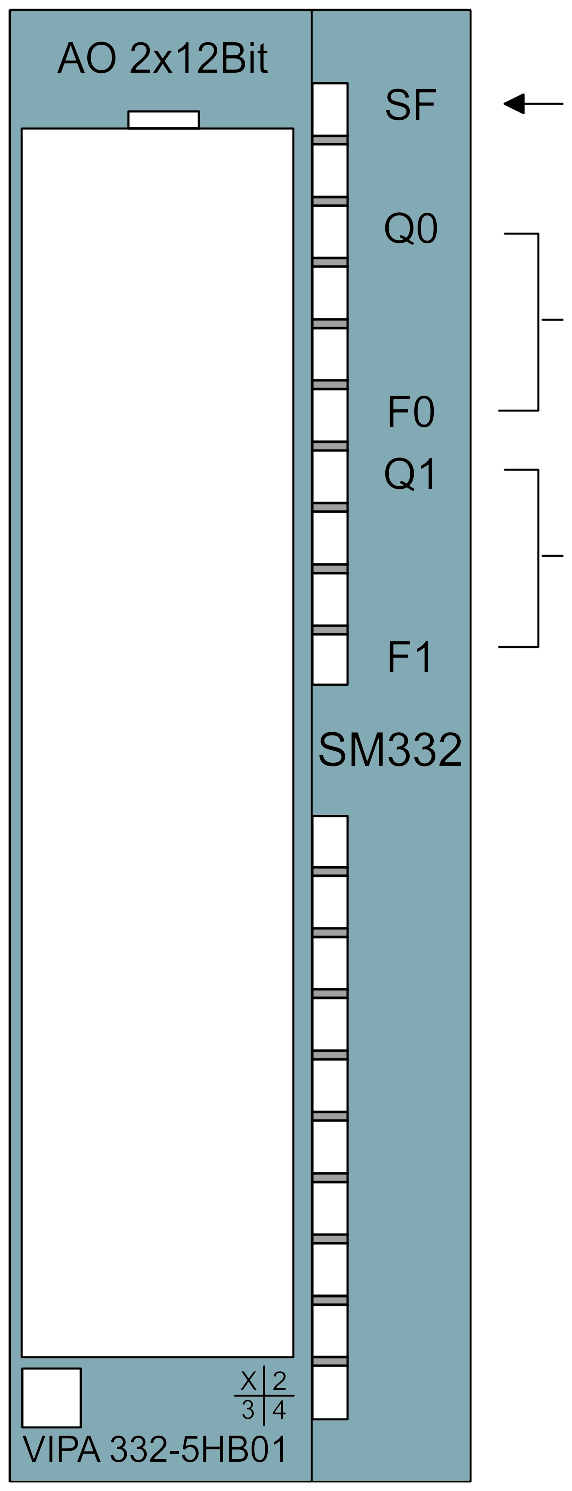

LED | Description | |
| 1 |  |
 |
SF | LED (red) |
| 2 |
Sum error, flashes at missing ext. voltage supply |
|||
| 3 | ||||
| 4 | ||||
| 5 | Q0 ... Q1 | LED (green) | ||
| 6 | the according channel is activated | |||
| 7 | ||||
| 8 | ||||
| 9 | F0 ... F1 |
LED (red) | ||
| 10 | Error channel 0 ... 1 | |||
| 11 | ||||
| 12 | ||||
| 13 | ||||
| 14 | ||||
| 15 | ||||
| 16 | ||||
| 17 | ||||
| 18 | ||||
| 19 | ||||
| 20 |
 |
Фронтальный соединитель для модулей серии 300S392-1AJ00 20 контактов с винтовыми клеммами |
| |
Фронтальный соединитель для модулей серии 300S392-1BJ00 20 контактов с пружинными клеммами |
 |

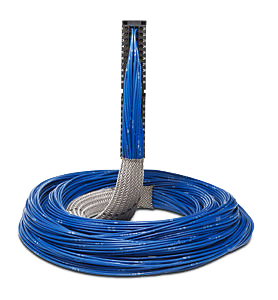

Фронтальный соединитель922-3BC50 20 контактов с винтовыми клеммами, смонтированный жгут изолированных проводов сечением 0,5 кв. мм и длиной 2,5 м |
| |
Фронтальный соединитель922-3BD20 20 контактов с винтовыми клеммами, смонтированный жгут изолированных проводов сечением 0,5 кв. мм и длиной 3,2 м |
|
Фронтальный соединитель922-3BF00 20 контактов с винтовыми клеммами, смонтированный жгут изолированных проводов сечением 0,5 кв. мм и длиной 5 м |
Order no. |
332-5HB01 |
| Type | SM 332 |
General information |
|
| Note | - |
| Features | 2 outputs Configurable Voltage, current |
| SPEED-Bus | - |
Current consumption/power loss |
|
| Current consumption from backplane bus | 100 mA |
| Power loss | 2.5 W |
Technical data analog outputs |
|
| Number of outputs | 2 |
| Cable length, shielded | - |
| Rated load voltage | DC 24 V |
| Reverse polarity protection of rated load voltage | - |
| Current consumption from load voltage L+ (without load) | 70 mA |
| Voltage output short-circuit protection |  |
| Voltage outputs | |
| Min. load resistance (voltage range) | 1 kΩ |
| Max. capacitive load (current range) | 1 µF |
| Max. inductive load (current range) | 30 mA |
| Output voltage ranges | -10 V ... +10 V 0 V ... +10 V +1 V ... +5 V |
| Operational limit of voltage ranges | +/-0.2% ... +/-0.8% |
| Basic error limit voltage ranges | +/-0.1% ... +/-0.5% |
| Destruction limit against external applied voltage | - |
| Current outputs | |
| Max. in load resistance (current range) | 500 Ω |
| Max. inductive load (current range) | 10 mH |
| Max. inductive load (current range) | - |
| Output current ranges | -20 mA ... +20 mA 0 mA ... +20 mA +4 mA ... +20 mA |
| Operational limit of current ranges | +/-0.3% ... +/-0.8% |
| Basic error limit current ranges | +/-0.2% ... +/-0.5% |
| Destruction limit against external applied voltage | - |
| Settling time for ohmic load | 0.2 ms |
| Settling time for capacitive load | 1 ms |
| Settling time for inductive load | 1 ms |
| Resolution in bit | 13 |
| Conversion time | 0.5 ms all channels |
| Substitute value can be applied | yes |
| Output data size | 4 Byte |
Status information, alarms, diagnostics |
|
| Status display | green LED per channel |
| Interrupts | yes |
| Process alarm | no |
| Diagnostic interrupt | yes, parameterizable |
| Diagnostic functions | yes |
| Diagnostics information read-out | possible |
| Supply voltage display | none |
| Group error display | red SF LED |
| Channel error display | red LED per channel |
Isolation |
|
| Between channels | - |
| Between channels of groups to | - |
| Between channels and backplane bus | |
| Between channels and power supply | |
| Max. potential difference between circuits | - |
| Max. potential difference between inputs (Ucm) | - |
| Max. potential difference between Mana and Mintern (Uiso) | DC 75 V/ AC 60 V |
| Max. potential difference between inputs and Mana (Ucm) | - |
| Max. potential difference between inputs and Mintern (Uiso) | - |
| Max. potential difference between Mintern and outputs | - |
| Insulation tested with | DC 500 V |
Datasizes |
|
| Input bytes | 0 |
| Output bytes | 4 |
| Parameter bytes | 21 |
| Diagnostic bytes | 16 |
Housing |
|
| Material | PPE |
| Mounting | Rail System 300 |
Mechanical data |
|
| Dimensions (WxHxD) | 40 mm x 125 mm x 120 mm |
| Weight | 230 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
| Order no. | Name/Description | |
|---|---|---|
|
331-1KF01 |
SM 331 - Analog input␍ 8 inputs 13 bit Voltage, current Resistance Resistance thermometer |
 [Datasheet] [Manual] |
|
331-7AF70 |
SM 331S - Analog input FAST - SPEED-Bus␍ 8 inputs Current ±20 mA Oscilloscope-/FIFO function Interrupt parameterizable |
[Datasheet] [Manual] |
|
331-7BF70 |
SM 331S - Analog input FAST - SPEED-Bus 8 inputs Voltage ±10 V Oscilloscope-/FIFO-Function Interrupt parameterizable |
[Datasheet] [Manual] |
|
331-7KB01 |
SM 331 - Analog input␍ 2 inputs, in 1 group Voltage, current Resistance Resistance thermometer Thermocouples |
[Datasheet] [Manual] |
|
331-7KF01 |
SM 331 - Analog input␍ 8 inputs, in 4 groups Voltage, current Resistance Resitance thermometer Thermocouples |
[Datasheet] [Manual] |
|
332-5HB01 |
SM 332 - Analog output␍ 2 outputs Configurable Voltage, current |
[Datasheet] [Manual] |
|
332-5HD01 |
SM 332 - Analog output␍ 4 outputs Configurable Voltage, current |
[Datasheet] [Manual] [STP] |
|
334-0KE00 |
SM 334 - Analog in-/output 4 inputs, 2 outputs Configurable Resistance Voltage 0...10 V |
[Datasheet] [Manual] |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
