CPU 315SB/DPM-Speed7 технология, DC 24V, 1MB…2МВ оперативной памяти, MMC слот, часы реального времени; MPI-интерфейс, RS485 для PtP или Profibus-DP Master 12Mбит/с, Ethernet интерфейс для PG/OP связи, встроенный Ethernet CP с поддержкой EtherCAT.
|
Наименование
|
CPU 315SN/EC |
|
Тип
|
315-4EC12 |
|
Описание
|
Используются для контроля и управления сложных технологических |
|
Габаритные размеры, В х Ш х Г, мм
|
80 mm x 125 mm x 120 mm |
|
Сайт производителя
|
www.vipa.de |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Серия
|
300S |
|
Тип интерфейса (электрический)
|
RS485; RJ45 |
|
Поддерживаемые протоколы
|
MPI; PtP; PG/OP; PROFIBUS-DP master, EtherCAT master |
|
Объем памяти
|
1 MB |
| Модуль CPU | Описание | Разъем DC 24V | Описание | |||
 |
|
 |
|
|||
|
Ethernet interface for PG/OP channel |
Описание | |||||
X5 RJ45 |
|
|||||
|
Ethernet interface for EtherCAT |
Описание | |||||
| X8 RJ45 |
|
|||||
| MPI interface | Описание | |||||
X2 RS485 |
|
|||||
|
PtP, PROFIBUS-DP master interface |
Описание | |||||
| X3 RS485 |
|
|||||
 |
Другие принадлежности для этого товараКарты памяти MMC для расширение рабочей памяти Монтажные шины |

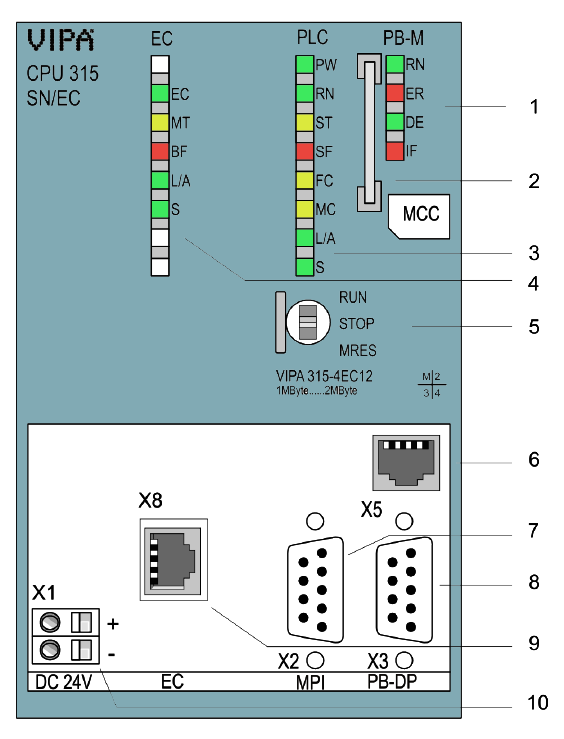

Индикация состояния CPU
The green PW-LED (Power) is on
|
RN |
ST |
SF (SFAIL) red |
FC |
MC |
Meaning |
| Boot-up after PowerON | |||||
| ● | ☼* | ● | ● | ● | * Blinking with 10Hz: Firmware is loaded. |
| ● | ● | ● | ● | ● | Initialization: Phase 1 |
| ● | ● | ● | ● | ○ | Initialization: Phase 2 |
| ● | ● | ● | ○ | ○ | Initialization: Phase 3 |
| ○ | ● | ● | ○ | ○ | Initialization: Phase 4 |
| Operation | |||||
| ○ | ● | x | x | x | CPU is in STOP state. |
| ☼ | ○ | x | x | x | CPU is in start-up state, the RUN LED blinks during operating OB100 at least for 3s. |
| ● | ○ | ○ | x | x | CPU is in state RUN without error. |
| x | x | ● | x | x | There is a system fault. More information may be found in the diagnostics buffer of the CPU. |
| x | x | x | ● | x | Variables are forced. |
| x | x | x | x | ● | Access to the memory card. |
| x | ☼* | ○ | ○ | ○ | * Blinking with 10Hz: Configuration is loaded. |
| Overall reset | |||||
| ○ | ☼ | x | x | x | Overall reset is requested. |
| ○ | ☼* | x | x | x | * Blinking with 5Hz: Overall reset is executed. |
| Factory reset | |||||
| ● | ● | ○ | ○ | ○ | Factory reset is executed. |
| ○ | ● | ● | ● | ● | Factory reset finished without error. |
| Firmware update | |||||
| ○ | ● | ☼ | ☼ | ● | The alternate blinking indicates that there is new firmware on the memory card. |
| ○ | ○ | ☼ | ☼ | ● | The alternate blinking indicates that a firmware update is executed. |
| ○ | ● | ● | ● | ● | Firmware update finished without error. |
| ○ | ☼* | ☼* | ☼* | ☼* | * Blinking with 10Hz: Error during Firmware update. |
on: ● off: ○ blinking (2Hz): ☼ not relevant: x
The green L/A-LED (Link/Activity) indicates the physical connection of the Ethernet PG/OP channel to Ethernet. Irregular flashing of the L/A-LED indicates communication of the Ethernet PG/OP channel via Ethernet.
If the green S-LED (Speed) is on, the Ethernet PG/OP has a communication speed of 100MBit/s otherwise 10MBit/s.
Индикация состояния PROFIBUS/PtP
Master operation
|
RN |
ER
(ERR) |
DE
green |
IF
red |
Meaning |
| ○ | ○ | ○ | ○ | Master has no project, this means the interface is deactivated respectively PtP is active. |
| ● | ○ | ○ | ○ | Master has bus parameters and is in RUN without slaves. |
| ● | ○ | ☼ | ○ | Master is in "clear" state (safety state). The inputs of the slaves may be read. The outputs are disabled. |
| ● | ○ | ● | ○ | Master is in "operate" state, this means data exchange between master and slaves. The outputs may be accessed. |
| ● | ● | ● | ○ | CPU is in RUN, at least 1 slave is missing. |
| ● | ● | ☼ | ○ | CPU is in STOP, at least 1 slave is missing. |
| ○ | ○ | ○ | ● | Initialization error at faulty parameterization. |
| ○ | ● | ○ | ● | Waiting state for start command from CPU. |
Slave operation
| RN (RUN) green |
ER
(ERR) |
DE
green |
IF
red |
Meaning |
| ○ | ○ | ○ | ○ | Slave has no project respectively PtP is active. |
| ☼ | ○ | ○ | ○ | Slave is without master. |
| ☼* | ○ | ☼* | ○ | * Alternate flashing at configuration faults. |
| ● | ○ | ● | ○ | Slave exchanges data between master. |
Индикация состояния EtherCAT
| EC green |
MT yellow |
BF red |
Meaning |
| ○ | ○ | ○ | Master is in INIT state |
| BB | ○ | ○ | Master is in Pre-Op state |
| P | ○ | ○ | Master is in Safe-Op state |
| ● | ○ | ○ | Master is in OP state |
| X | ○ | X | There is no maintenance event pending |
| X | ● | X | There is a maintenance event pending. More may be found in the diagnostics data |
| X | X | ○ | There is no error on the EtherCAT bus pending |
| X | X | ● |
|
| X | X | B |
|
| ○ | B4 | B4 | Error in configuration: 0xEA64 was added to the diagnostics buffer, additionally the SF-LED of the CPU is on |
| ○ | BB* | BB* | * The alternating flashing with 4Hz indicates that the firmware update of the EtherCAT masters is performed. |
| ● | ● | ● | Firmware update of the EtherCAT master was finished without error. |
on: ● off: ○ blinking (1Hz): B blinking (2Hz): BB B4: blinking (4s on, 1s off) pulsing: P flickring: F not relevant: X
The green L/A-LED (Link/Activity) indicates the physical connection of the EtherCAT master to Ethernet. Irregular flashing of the L/A-LED indicates communication of the EtherCAT master via Ethernet.
If the green S-LED (Speed) is on, the EtherCAT master has a communication speed of 100Mbit/s otherwise with 10Mbit/s.
Order no. |
315-4EC12 |
| Type | CPU 315SN/EC |
General information |
|
| Note | - |
| Features | SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) EtherCAT controller integrated |
| SPEED-Bus | - |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection |  |
| Current consumption (no-load operation) | 270 mA |
| Current consumption (rated value) | 1.1 A |
| Inrush current | 6 A |
| I²t | 0.28 A²s |
| Max. current drain at backplane bus | 2.5 A |
| Power loss | 8.5 W |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection | |
| Current consumption (no-load operation) | 270 mA |
| Current consumption (rated value) | 1.1 A |
| Inrush current | 6 A |
| I²t | 0.28 A²s |
| Max. current drain at backplane bus | 2.5 A |
| Max. current drain load supply | - |
| Power loss | 8.5 W |
Load and working memory |
|
| Load memory, integrated | 2 MB |
| Load memory, maximum | 2 MB |
| Work memory, integrated | 1 MB |
| Work memory, maximal | 2 MB |
| Memory divided in 50% program / 50% data | |
| Memory card slot | MMC-Card with max. 1 GB |
Hardware configuration |
|
| Racks, max. | 4 |
| Modules per rack, max. | 8 in multiple-, 32 in a single-rack configuration |
| Number of integrated DP master | 1 |
| Number of DP master via CP | 4 |
| Operable function modules | 8 |
| Operable communication modules PtP | 8 |
| Operable communication modules LAN | 8 |
Command processing times |
|
| Bit instructions, min. | 0.01 µs |
| Word instruction, min. | 0.01 µs |
| Double integer arithmetic, min. | 0.01 µs |
| Floating-point arithmetic, min. | 0.06 µs |
Timers/Counters and their retentive characteristics |
|
| Number of S7 counters | 512 |
| S7 counter remanence | adjustable 0 up to 512 |
| S7 counter remanence adjustable | C0 .. C7 |
| Number of S7 times | 512 |
| S7 times remanence | adjustable 0 up to 512 |
| S7 times remanence adjustable | not retentive |
Data range and retentive characteristic |
|
| Number of flags | 8192 Byte |
| Bit memories retentive characteristic adjustable | adjustable 0 up to 8192 |
| Bit memories retentive characteristic preset | MB0 .. MB15 |
| Number of data blocks | 4095 |
| Max. data blocks size | 64 KB |
| Number range DBs | 1 ... 4095 |
| Max. local data size per execution level | 3072 Byte |
| Max. local data size per block | 3072 Byte |
Blocks |
|
| Number of OBs | 24 |
| Maximum OB size | 64 KB |
| Total number DBs, FBs, FCs | - |
| Number of FBs | 2048 |
| Maximum FB size | 64 KB |
| Number range FBs | 0 ... 2047 |
| Number of FCs | 2048 |
| Maximum FC size | 64 KB |
| Number range FCs | 0 ... 2047 |
| Maximum nesting depth per priority class | 8 |
| Maximum nesting depth additional within an error OB | 4 |
Time |
|
| Real-time clock buffered | |
| Clock buffered period (min.) | 6 w |
| Type of buffering | Vanadium Rechargeable Lithium Battery |
| Load time for 50% buffering period | 20 h |
| Load time for 100% buffering period | 48 h |
| Accuracy (max. deviation per day) | 10 s |
| Number of operating hours counter | 8 |
| Clock synchronization | |
| Synchronization via MPI | Master/Slave |
| Synchronization via Ethernet (NTP) | Slave |
Address areas (I/O) |
|
| Input I/O address area | 2048 Byte |
| Output I/O address area | 2048 Byte |
| Process image adjustable | |
| Input process image preset | 128 Byte |
| Output process image preset | 128 Byte |
| Input process image maximal | 2048 Byte |
| Output process image maximal | 2048 Byte |
| Digital inputs | 16384 |
| Digital outputs | 16384 |
| Digital inputs central | 1024 |
| Digital outputs central | 1024 |
| Integrated digital inputs | - |
| Integrated digital outputs | - |
| Analog inputs | 1024 |
| Analog outputs | 1024 |
| Analog inputs, central | 256 |
| Analog outputs, central | 256 |
| Integrated analog inputs | - |
| Integrated analog outputs | - |
Communication functions |
|
| PG/OP channel | |
| Global data communication | |
| Number of GD circuits, max. | 8 |
| Size of GD packets, max. | 22 Byte |
| S7 basic communication | |
| S7 basic communication, user data per job | 76 Byte |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| S7 communication, user data per job | 160 Byte |
| Number of connections, max. | 32 |
Functionality Sub-D interfaces |
|
| Type | X2 |
| Type of interface | RS485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | |
| MP²I (MPI/RS232) | - |
| DP master | - |
| DP slave | - |
| Point-to-point interface | - |
| Type | X3 |
| Type of interface | RS485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | - |
| MP²I (MPI/RS232) | - |
| DP master | yes |
| DP slave | yes |
| Point-to-point interface | |
Functionality MPI |
|
| Number of connections, max. | 32 |
| PG/OP channel | |
| Routing | |
| Global data communication | |
| S7 basic communication | |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| Transmission speed, min. | 19.2 kbit/s |
| Transmission speed, max. | 12 Mbit/s |
Functionality PROFIBUS master |
|
| PG/OP channel | |
| Routing | |
| S7 basic communication | |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| Activation/deactivation of DP slaves | |
| Direct data exchange (slave-to-slave communication) | - |
| DPV1 | |
| Transmission speed, min. | 9.6 kbit/s |
| Transmission speed, max. | 12 Mbit/s |
| Number of DP slaves, max. | 124 |
| Address range inputs, max. | 8 KB |
| Address range outputs, max. | 8 KB |
| User data inputs per slave, max. | 244 Byte |
| User data outputs per slave, max. | 244 Byte |
Functionality PROFIBUS slave |
|
| PG/OP channel | |
| Routing | |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| Direct data exchange (slave-to-slave communication) | - |
| DPV1 | |
| Transmission speed, min. | 9.6 kbit/s |
| Transmission speed, max. | 12 Mbit/s |
| Automatic detection of transmission speed | - |
| Transfer memory inputs, max. | 244 Byte |
| Transfer memory outputs, max. | 244 Byte |
| Address areas, max. | 32 |
| User data per address area, max. | 32 Byte |
Point-to-point communication |
|
| PtP communication | |
| Interface isolated | |
| RS232 interface | - |
| RS422 interface | - |
| RS485 interface | |
| Connector | Sub-D, 9-pin, female |
| Transmission speed, min. | 1200 bit/s |
| Transmission speed, max. | 115.5 kbit/s |
| Cable length, max. | 500 m |
Point-to-point protocol |
|
| ASCII protocol | |
| STX/ETX protocol | |
| 3964(R) protocol | |
| RK512 protocol | - |
| USS master protocol | |
| Modbus master protocol | |
| Modbus slave protocol | - |
| Special protocols | - |
Functionality RJ45 interfaces |
|
| Type | X5 |
| Type of interface | Ethernet 10/100 MBit |
| Connector | RJ45 |
| Electrically isolated | |
| PG/OP channel | |
| Number of connections, max. | 4 |
| Productive connections | - |
| Type | X8 |
| Type of interface | Ethernet 10/100 MBit |
| Connector | RJ45 |
| Electrically isolated | |
| PG/OP channel | |
| Number of connections, max. | 8 |
| Productive connections | |
Ethernet communication CP |
|
| Number of productive connections, max. | 8 |
| Number of productive connections by Siemens NetPro, max. | 8 |
| S7 connections | BSEND, BRCV, GET, PUT, Connection of active and passive data handling |
| User data per S7 connection, max. | 32 KB |
| TCP-connections | FETCH PASSIV, WRITE PASSIV, Connection of passive data handling |
| User data per TCP connection, max. | 64 KB |
| ISO-connections | - |
| User data per ISO connection, max. | - |
| ISO on TCP connections (RFC 1006) | FETCH PASSIV, WRITE PASSIV, Connection of passive data handling |
| User data per ISO on TCP connection, max. | 32 KB |
| UDP-connections | - |
| User data per UDP connection, max. | - |
| UDP-multicast-connections | - |
| UDP-broadcast-connections | - |
Ethernet open communication |
|
| Number of connections, max. | 8 |
| User data per ISO on TCP connection, max. | 8 KB |
| User data per native TCP connection, max. | 8 KB |
| User data per ad hoc TCP connection, max. | 1460 Byte |
| User data per UDP connection, max. | 1472 Byte |
EtherCAT Master |
|
| Number of EtherCAT-slaves | 128 |
| Update time | 500 µs .. 512 ms |
| Address range inputs, max. | 2 KB |
| Address range outputs, max. | 2 KB |
| EoE support | |
| FoE support | |
| Distributed Clock support | |
| Hotconnect Slaves | |
Management & diagnosis |
|
| Protocols | ICMP LLC |
| Web based diagnosis | - |
| NCM diagnosis | |
Housing |
|
| Material | PPE |
| Mounting | Rail System 300 |
Mechanical data |
|
| Dimensions (WxHxD) | 80 mm x 125 mm x 120 mm |
| Weight | 430 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | in preparation |
|
312-5BE13 |
CPU 312SC - SPEED7 technology␍ SPEED7 technology 16 x DI, 8 x DO 64 kB work memory Memory extension (max. 512 kB) PtP interface Also configurable via TIA-Portal |
 [Datasheet]
[Manual] |
|
312-5BE23 |
CPU 312SC - SPEED7 Technology (300S+)␍ SPEED7 technology 16 x DI, 8 x DO, incl. front connectors 128 kB work memory Memory extension (max. 1024 kB) PtP interface Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
313-5BF13 |
CPU 313SC - SPEED7 technology␍ SPEED7 technology 24 x DI, 16 x DO, 4 x AI, 2 x AO, 1 x AI Pt100 128 kB work memory Memory extension (max. 512 kB) PtP interface Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
313-5BF23 |
CPU 313SC - SPEED7 technology (300S+)␍ SPEED7 technology 24 x DI, 16 x DO, 4 x AI, 2 x AO, 1 x AI Pt100, incl. front connectors 2x40-pole 256 kB work memory Memory extension (max. 1 MB) PtP interface Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
313-6CF13 |
CPU 313SC/DPM - SPEED7 technology␍ SPEED7 technology 16 x DI, 16 x DO 128 kB work memory Memory extension (max 512 kB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
313-6CF23 |
CPU 313SC/DPM - SPEED7 technology (300S+) ␍ SPEED7 technology 16 x DI, 16 x DO, incl. front connector 256 kB work memory Memory extension (max 1 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-2AG12 |
CPU 314SB/DPM - SPEED7 technology␍ SPEED7 technology 256 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP master / PtP (switchable) |
[Datasheet]
[Manual] |
|
314-2AG13 |
CPU 314SB/DPM - SPEED7 technology␍ SPEED7 technology 256 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-2AG23 |
CPU 314SB/DPM - SPEED7 technology␍ SPEED7 technology 256 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
|
|
314-2BG03 |
CPU 314SE/DPS - SPEED7 technology SPEED7 technology 128 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP slave / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-2BG23 |
CPU 314SE/DPS - SPEED7 technology SPEED7 technology 128 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP slave / PtP (switchable) Also configurable via TIA-Portal |
|
|
314-6CF02 |
CPU 314ST/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100 512 kB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) |
[Datasheet]
[Manual] |
|
314-6CF03 |
CPU 314ST/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100 512 kB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-6CF23 |
CPU 314ST/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100 512 kB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
|
|
314-6CG13 |
CPU 314SC/DPM - SPEED7 technology␍ SPEED7 technology 24 x DI, 16 x DO, 8 x DIO, 4 x AI, 1 x AI Pt100, 2 x AO 256 kB work memory Memory extension (max. 1 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-6CG23 |
CPU 314SC/DPM - SPEED7 technology (300S+)␍ SPEED7 technology 24 x DI, 16 x DO, 8 x DIO, 4 x AI, 1 x AI Pt100, 2 x AO, incl. front connectors 512 kB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
315-2AG12 |
CPU 315SB/DPM - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) |
[Datasheet]
[Manual] |
|
315-2AG13 |
CPU 315SB/DPM - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
315-2AG23 |
CPU 315SB/DPM - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
|
|
315-4EC12 |
CPU 315SN/EC - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) EtherCAT controller integrated |
[Datasheet]
[Manual] |
|
315-4EC32 |
CPU 315SN/EC ECO - SPEED7 technology␍ SPEED7 technology 512 KB work memory PtP EtherCAT Master integrated |
[Datasheet]
[Manual] |
|
315-4NE12 |
CPU 315SN/NET - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated |
[Datasheet]
[Manual] |
|
315-4NE13 |
CPU 315SN/NET - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
315-4PN12 |
CPU 315SN/PN - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) PROFINET controller integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
315-4PN33 |
CPU 315SN/PN ECO - SPEED7 technology␍ SPEED7 technology 512 KB work memory PtP PROFINET controller integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
317-2AJ12 |
CPU 317SE/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) |
[Datasheet]
[Manual]
 [STP] |
|
317-2AJ13 |
CPU 317SE/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
317-4EC12 |
CPU 317SN/EC - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) EtherCAT-Master integrated |
[Datasheet]
[Manual] |
|
317-4NE12 |
CPU 317SN/NET - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated |
[Datasheet]
[Manual] |
|
317-4NE13 |
CPU 317SN/NET - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
317-4PN12 |
CPU 317SN/PN - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) PROFINET Controller integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
Изделие: 315-4NE13
Рабочая память 1 Мбайт (расширение до 2 Mбайт), MPI, Ethernet PG/OP, порт RS-485 (PROFIBUS DP master или PtP), встроенный Ethernet CP 343, совместимость с TIA Portal
Изделие: 315-2AG13
Рабочая память 1 Мбайт (расширение до 2 Мбайт), MPI, Ethernet PG/OP, порт RS-485 (PROFIBUS DP Master или PtP), cовместимость с TIA Portal
Изделие: 314-2AG13
Рабочая память 256 кбайт (расширение до 512 кбайт), MPI, Ethernet PG/OP, порт RS-485 (Profibus DP Master или PtP), совместимость с TIA Portal
Изделие: 312-5BE23
Рабочая память 128 кбайт (расширение до 1024 кбайт), MMC/SD, MPI, порт RS-485 (PtP), порт Ethernet PG/OP, 16 x DI, 8 x DO, 2 счетчика (32 разряда, 10 кГц), фронтальный соединитель 392-1AM00 в комплекте
г. Алматы, Ауэзовский район
ул. Толе Би 302, Литер "Д"
офис № 205
+7 (727) 268-0321
+7 (701) 082-9486
+7 (707) 493-7210
+7 (727) 268-0321
info@controllink.kz
