CPU 313SC, 128...512 kB, 24DI, 16DO, 4AI, 2AO, 1AI Pt100, PtP RS-485, TIA

Изделие: 313-5BF13


Краткое описание:
Рабочая память 128 кбайт (расширение до 512 кбайт), MPI, порт RS-485 (PtP), порт Ethernet PG/OP, 24 x DI, 16 x DO, 4 x AI, 2 x AO, 1 x AI (Pt100), 3 счетчика (32 разряда, 30 кГц), совместимость с TIA Portal (требуется два 40-контактных фронтальных соединителя, заказываются отдельно)
Производитель: VIPA
Серия модулей VIPA: 300S
Вес: 0.59 кг.
314004 298304
БЫСТРЫЙ ЗАКАЗ

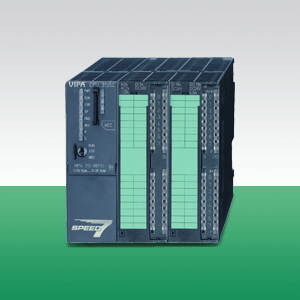

CPU 313SC 313-5BF13 - PtP-Speed7 технология

CPU 313SC/PtP-Speed7 технология, DC 24V, 128kB…512kВ оперативной памяти, MMC слот, часы реального времени; MPI-интерфейс, RS485 для PtP, Ethernet интерфейс для PG/OP связи; интегрированные I/O: DI 24xDC24V / DO 16xDC24V,0,5A, AI 4x12Bit/ AO 2x12Bit/1xPt100; 3 счетчика (30кГц). Возможность расширения до 8 модулей.

Наименование
CPU 313SC/PtP
Тип
313-5BF13
Описание

Используются для контроля и управления сложных технологических
процессов.

Габаритные размеры, В х Ш х Г, мм
120 mm x 125 mm x 120 mm
Сайт производителя
www.vipa.com
Температура окружающей среды
0 °C .. 60 °C
Серия
300S
Поддерживаемые протоколы
MPI; PtP; PG/OP
Объем памяти
128 Kб
Количество сигналов
DI 24xDC24V; DO 16xDC24V; AI 4x12Bit; AO 2x12Bit; 1xPt100

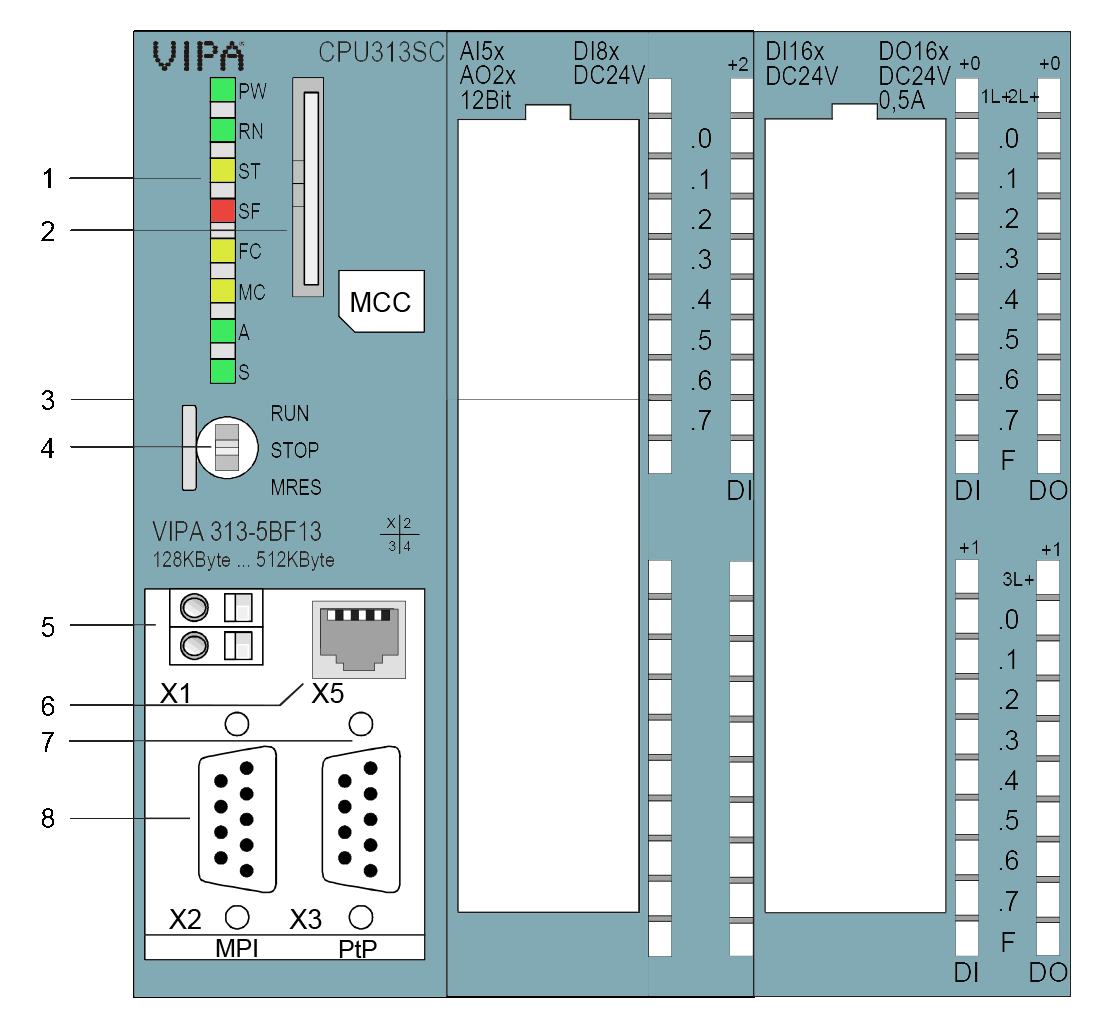

Модуль CPU    Описание      Разъем DC 24V   Описание

  1. Индикатор состояния процессорного модуля
  2. Слот МСС (фиксируется)
  3. Модуль Входов / Выходов
  4. Переключатель режимов процессора
  5. Разъем питания DC 24V
  6. Интерфейс Ethernet для PG / OP канала
  7. Интерфейс PtP
  8. Интерфейс MPI


  1. + DC 24 V
  2. 0 V



 Ethernet interface

for PG/OP channel

 Описание

  1. Передача +
  2. Передача -
  3. Прием +
  4. -
  5. -
  6. Прием  -
  7. -
  8. -
     MPI interface   Описание
     X2 RS485
  1. Не используется
  2. M24V
  3. RxD/TxD-P (line B)
  4. RTS
  5. M5V
  6. P5V
  7. P24V
  8. RxD/TxD-N (line A)
  9. Не используется
    PtP interface    Описание
    X3 RS485
  1. Не используется
  2. M24V
  3. RxD/TxD-P (line B)
  4. RTS
  5. M5V
  6. P5V
  7. P24V
  8. RxD/TxD-N (line A)
  9. Не используется





Индикация состояния CPU

The green PW-LED (Power) is on

RN
(RUN)
green

ST
(STOP)
yellow

 SF
(SFAIL)
red

 FC
(FRCE)
yellow

MC
(MCC)
yellow

 Meaning
Boot-up after PowerON
 ●  ☼*  ●  ●  ●  * Blinking with 10Hz: Firmware is loaded.
 ●  ●  ●  ●  ●  Initialization: Phase 1
 ●  ●  ●  ●  ○  Initialization: Phase 2
 ●  ●  ●  ○  ○  Initialization: Phase 3
 ○  ●  ●  ○  ○  Initialization: Phase 4
Operation
 ○  ●  x  x  x  CPU is in STOP state.
 ☼  ○  x  x  x  CPU is in start-up state, the RUN LED blinks during operating OB100 at least for 3s.
 ●  ○  ○  x  x  CPU is in state RUN without error.
 x  x  ●  x  x  There is a system fault. More information may be found in the diagnostics buffer of the CPU.
 x  x  x  ●  x  Variables are forced.
 x  x  x  x  ●  Access to the memory card.
Overall reset
 ○  ☼  x  x  x  Overall reset is requested.
 ○  ☼*  x  x  x  * Blinking with 5Hz: Overall reset is executed.
Factory reset
 ●  ●  ○  ○  ○  Factory reset is executed.
 ○  ●  ●  ●  ●  Factory reset finished without error.
Firmware update
 ○  ●  ☼  ☼  ●  The alternate blinking indicates that there is new firmware on the memory card.
 ○  ○  ☼  ☼  ●  The alternate blinking indicates that a firmware update is executed.
 ○  ●  ●  ●  ●  Firmware update finished without error.
 ○  ☼*  ☼*  ☼*  ☼*  * Blinking with 10Hz: Error during Firmware update.

on: ●    off: ○    blinking (2Hz): ☼    not relevant: x

The green A-LED (Activity) indicates the physical connection of the Ethernet PG/OP channel to Ethernet. Irregular flashing of the A-LED indicates communication of the Ethernet PG/OP channel via Ethernet.

If the green S-LED (Speed) is on, the Ethernet PG/OP has a communication speed of 100MBit/s otherwise 10MBit/s.





Дополнительные принадлежности





Фронтальный соединитель для модулей серии 300S

392-1AM00

40 контактов с винтовыми клеммами


Фронтальный соединитель для модулей серии 300S

392-1BM01

40 контактов с пружинными клеммами


Фронтальный соединитель

922-6BC50

40 контактов с винтовыми клеммами, смонтированный жгут изолированных проводов сечением 0,5 кв. мм и длиной 2,5 м


Фронтальный соединитель

922-6BD20

40 контактов с винтовыми клеммами, смонтированный жгут изолированных проводов сечением 0,5 кв. мм и длиной 3,2 м

Фронтальный соединитель

922-6BF00

40 контактов с винтовыми клеммами, смонтированный жгут изолированных проводов сечением 0,5 кв. мм и длиной 5 м

Другие принадлежности для этого товара

Карты памяти MMC для расширение рабочей памяти

Монтажные шины

Order no.

313-5BF13

Type CPU 313SC

General information

Note -
Features SPEED7 technology
24 x DI, 16 x DO, 4 x AI, 2 x AO, 1 x AI Pt100
128 kB work memory
Memory extension (max. 512 kB)
PtP interface
Also configurable via TIA-Portal
SPEED-Bus -

Technical data power supply

Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) 240 mA
Current consumption (rated value) 700 mA
Inrush current 11 A
I²t 0.7 A²s
Max. current drain at backplane bus 3 A
Power loss 14 W

Technical data digital inputs

Number of inputs 24
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage
Current consumption from load voltage L+ (without load) 70 mA
Rated value DC 24 V
Input voltage for signal "0" DC 0...5 V
Input voltage for signal "1" DC 15...28.8 V
Input voltage hysteresis -
Frequency range -
Input resistance -
Input current for signal "1" 6 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current 1.5 mA
Input delay of "0" to "1" 0.1 / 0.35 ms
Input delay of "1" to "0" 0.1 / 0.35 ms
Number of simultaneously utilizable inputs horizontal configuration 24
Number of simultaneously utilizable inputs vertical configuration 24
Input characteristic curve IEC 61131-2, type 1
Initial data size 3 Byte

Technical data digital outputs

Number of outputs 16
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage -
Current consumption from load voltage L+ (without load) 100 mA
Total current per group, horizontal configuration, 40°C 3 A
Total current per group, horizontal configuration, 60°C 2 A
Total current per group, vertical configuration 2 A
Output voltage signal "1" at min. current L+ (-0.8 V)
Output voltage signal "1" at max. current L+ (-0.8 V)
Output current at signal "1", rated value 0.5 A
Output current, permitted range to 40°C 5 mA to 0.6 A
Output current, permitted range to 60°C 5 mA to 0.6 A
Output current at signal "0" max. (residual current) 0.5 mA
Output delay of "0" to "1" 100 µs
Output delay of "1" to "0" 100 µs
Minimum load current -
Lamp load 5 W
Parallel switching of outputs for redundant control of a load possible
Parallel switching of outputs for increased power not possible
Actuation of digital input
Switching frequency with resistive load max. 2.5 kHz
Switching frequency with inductive load max. 0.5 Hz
Switching frequency on lamp load max. 2.5 kHz
Internal limitation of inductive shut-off voltage L+ (-52 V)
Short-circuit protection of output yes, electronic
Trigger level 1 A
Number of operating cycle of relay outputs -
Switching capacity of contacts -
Output data size 2 Byte

Technical data analog inputs

Number of inputs 5
Cable length, shielded 200 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage
Current consumption from load voltage L+ (without load) -
Voltage inputs
Min. input resistance (voltage range) 100 kΩ
Input voltage ranges 0 V ... +10 V
-10 V ... +10 V
Operational limit of voltage ranges +/-0.3%
Operational limit of voltage ranges with SFU -
Basic error limit voltage ranges +/-0.2%
Basic error limit voltage ranges with SFU -
Destruction limit current -
Current inputs
Max. input resistance (current range) 100 Ω
Input current ranges 0 mA ... +20 mA
-20 mA ... +20 mA
+4 mA ... +20 mA
Operational limit of current ranges +/-0.3%
Operational limit of current ranges with SFU -
Basic error limit current ranges +/-0.2%
Radical error limit current ranges with SFU -
Destruction limit current inputs (electrical current) -
Destruction limit current inputs (voltage) -
Resistance inputs
Resistance ranges 0 ... 600 Ohm
Operational limit of resistor ranges +/-0.4%
Operational limit of resistor ranges with SFU -
Basic error limit +/-0.2%
Basic error limit with SFU -
Destruction limit resistance inputs -
Resistance thermometer inputs
Resistance thermometer ranges Pt100
Operational limit of resistance thermometer ranges +/-0.6%
Operational limit of resistance thermometer ranges with SFU -
Basic error limit thermoresistor ranges +/-0.4%
Basic error limit thermoresistor ranges with SFU -
Destruction limit resistance thermometer inputs -
Thermocouple inputs -
Thermocouple ranges -
Operational limit of thermocouple ranges -
Operational limit of thermocouple ranges with SFU -
Basic error limit thermoelement ranges -
Basic error limit thermoelement ranges with SFU -
Destruction limit thermocouple inputs -
Programmable temperature compensation -
External temperature compensation -
Internal temperature compensation -
Technical unit of temperature measurement -
Resolution in bit 12
Measurement principle successive approximation
Basic conversion time 1 ms
Noise suppression for frequency 80 dB
Initial data size 10 Byte

Technical data analog outputs

Number of outputs 2
Cable length, shielded 200 m
Rated load voltage -
Reverse polarity protection of rated load voltage -
Current consumption from load voltage L+ (without load) -
Voltage output short-circuit protection
Voltage outputs
Min. load resistance (voltage range) 1 kΩ
Max. capacitive load (current range) 1 µF
Max. inductive load (current range) 25 mA
Output voltage ranges -10 V ... +10 V
0 V ... +10 V
Operational limit of voltage ranges +/-0.2%
Basic error limit voltage ranges with SFU +/-0.1%
Destruction limit against external applied voltage -
Current outputs
Max. in load resistance (current range) 500 Ω
Max. inductive load (current range) 100 µH
Max. inductive load (current range) 15 V
Output current ranges -20 mA ... +20 mA
0 mA ... +20 mA
+4 mA ... +20 mA
Operational limit of current ranges +/-0.3%
Radical error limit current ranges with SFU +/-0.2%
Destruction limit against external applied voltage -
Settling time for ohmic load 0.5 ms
Settling time for capacitive load 0.5 ms
Settling time for inductive load 0.5 ms
Resolution in bit 12
Conversion time 1 ms
Substitute value can be applied no
Output data size 4 Byte

Technical data counters

Number of counters 3
Counter width 32 Bit
Maximum input frequency 30 kHz
Maximum count frequency 30 kHz
Mode incremental encoder
Mode pulse / direction
Mode pulse
Mode frequency counter
Mode period measurement
Gate input available
Latch input available
Reset input available -
Counter output available

Load and working memory

Load memory, integrated 512 KB
Load memory, maximum 512 KB
Work memory, integrated 128 KB
Work memory, maximal 512 KB
Memory divided in 50% program / 50% data
Memory card slot MMC-Card with max. 1 GB

Hardware configuration

Racks, max. 4
Modules per rack, max. 8
Number of integrated DP master 0
Number of DP master via CP 4
Operable function modules 8
Operable communication modules PtP 8
Operable communication modules LAN 8

Status information, alarms, diagnostics

Status display yes
Interrupts yes
Process alarm yes
Diagnostic interrupt yes
Diagnostic functions no
Diagnostics information read-out possible
Supply voltage display green LED
Group error display red SF LED
Channel error display red LED per group

Command processing times

Bit instructions, min. 0.02 µs
Word instruction, min. 0.02 µs
Double integer arithmetic, min. 0.02 µs
Floating-point arithmetic, min. 0.12 µs

Timers/Counters and their retentive characteristics

Number of S7 counters 512
Number of S7 times 512

Data range and retentive characteristic

Number of flags 8192 Byte
Number of data blocks 4095
Max. data blocks size 64 KB
Max. local data size per execution level 510 Byte

Blocks

Number of OBs 15
Number of FBs 2048
Number of FCs 2048
Maximum nesting depth per priority class 8
Maximum nesting depth additional within an error OB 4

Time

Real-time clock buffered
Clock buffered period (min.) 6 w
Accuracy (max. deviation per day) 10 s
Number of operating hours counter 8
Clock synchronization
Synchronization via MPI Master/Slave
Synchronization via Ethernet (NTP) no

Address areas (I/O)

Input I/O address area 1024 Byte
Output I/O address area 1024 Byte
Input process image maximal 128 Byte
Output process image maximal 128 Byte
Digital inputs 1016
Digital outputs 1008
Digital inputs central 1016
Digital outputs central 1008
Integrated digital inputs 24
Integrated digital outputs 16
Analog inputs 253
Analog outputs 250
Analog inputs, central 253
Analog outputs, central 250
Integrated analog inputs 5
Integrated analog outputs 2

Communication functions

PG/OP channel
Global data communication
Number of GD circuits, max. 4
Size of GD packets, max. 22 Byte
S7 basic communication
S7 basic communication, user data per job 76 Byte
S7 communication
S7 communication as server
S7 communication as client -
S7 communication, user data per job 160 Byte
Number of connections, max. 32

PWM data

PWM channels 3
PWM time basis -
Period length -
Minimum pulse width -
PtP communication -

Functionality Sub-D interfaces

Type X2
Type of interface RS485
Connector Sub-D, 9-pin, female
Electrically isolated -
MPI
MP²I (MPI/RS232) -
DP master -
DP slave -
Point-to-point interface -

Type X3
Type of interface RS485
Connector Sub-D, 9-pin, female
Electrically isolated
MPI -
MP²I (MPI/RS232) -
DP master -
DP slave -
Point-to-point interface

Functionality MPI

Number of connections, max. 32
PG/OP channel
Routing -
Global data communication
S7 basic communication
S7 communication
S7 communication as server
S7 communication as client -
Transmission speed, min. 19.2 kbit/s
Transmission speed, max. 187.5 kbit/s

Functionality PROFIBUS master

PG/OP channel -
Routing -
S7 basic communication -
S7 communication -
S7 communication as server -
S7 communication as client -
Activation/deactivation of DP slaves -
Direct data exchange (slave-to-slave communication) -
DPV1 -
Transmission speed, min. -
Transmission speed, max. -
Number of DP slaves, max. -
Address range inputs, max. -
Address range outputs, max. -
User data inputs per slave, max. -
User data outputs per slave, max. -

Functionality PROFIBUS slave

PG/OP channel -
Routing -
S7 communication -
S7 communication as server -
S7 communication as client -
Direct data exchange (slave-to-slave communication) -
DPV1 -
Transmission speed, min. -
Transmission speed, max. -
Automatic detection of transmission speed -
Transfer memory inputs, max. -
Transfer memory outputs, max. -
Address areas, max. -
User data per address area, max. -

Point-to-point communication

PtP communication
Interface isolated
RS232 interface -
RS422 interface -
RS485 interface
Connector Sub-D, 9-pin, female
Transmission speed, min. 150 bit/s
Transmission speed, max. 115.5 kbit/s
Cable length, max. 500 m

Point-to-point protocol

ASCII protocol
STX/ETX protocol
3964(R) protocol
RK512 protocol -
USS master protocol
Modbus master protocol
Modbus slave protocol -
Special protocols -

Functionality RJ45 interfaces

Type X5
Type of interface Ethernet 10/100 MBit
Connector RJ45
Electrically isolated
PG/OP channel
Number of connections, max. 4
Productive connections -

Housing

Material PPE
Mounting Rail System 300

Mechanical data

Dimensions (WxHxD) 120 mm x 125 mm x 120 mm
Weight 590 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes

312-5BE13

CPU 312SC - SPEED7 technology␍
SPEED7 technology
16 x DI, 8 x DO
64 kB work memory
Memory extension (max. 512 kB)
PtP interface
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

312-5BE23

CPU 312SC - SPEED7 Technology (300S+)␍
SPEED7 technology
16 x DI, 8 x DO, incl. front connectors
128 kB work memory
Memory extension (max. 1024 kB)
PtP interface
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

313-5BF13

CPU 313SC - SPEED7 technology␍
SPEED7 technology
24 x DI, 16 x DO, 4 x AI, 2 x AO, 1 x AI Pt100
128 kB work memory
Memory extension (max. 512 kB)
PtP interface
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

313-5BF23

CPU 313SC - SPEED7 technology (300S+)␍
SPEED7 technology
24 x DI, 16 x DO, 4 x AI, 2 x AO, 1 x AI Pt100, incl. front connectors 2x40-pole
256 kB work memory
Memory extension (max. 1 MB)
PtP interface
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

313-6CF13

CPU 313SC/DPM - SPEED7 technology␍
SPEED7 technology
16 x DI, 16 x DO
128 kB work memory
Memory extension (max 512 kB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

313-6CF23

CPU 313SC/DPM - SPEED7 technology (300S+) ␍
SPEED7 technology
16 x DI, 16 x DO, incl. front connector
256 kB work memory
Memory extension (max 1 MB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

314-2AG12

CPU 314SB/DPM - SPEED7 technology␍
SPEED7 technology
256 kB work memory
Memory extension (max. 512 kB)
PROFIBUS-DP master / PtP (switchable)
 [Datasheet]
 [Manual]

314-2AG13

CPU 314SB/DPM - SPEED7 technology␍
SPEED7 technology
256 kB work memory
Memory extension (max. 512 kB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

314-2AG23

CPU 314SB/DPM - SPEED7 technology␍
SPEED7 technology
256 kB work memory
Memory extension (max. 512 kB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal

  [Datasheet]


 [Manual]

314-2BG03

CPU 314SE/DPS - SPEED7 technology
SPEED7 technology
128 kB work memory
Memory extension (max. 512 kB)
PROFIBUS-DP slave / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

314-2BG23

CPU 314SE/DPS - SPEED7 technology
SPEED7 technology
128 kB work memory
Memory extension (max. 512 kB)
PROFIBUS-DP slave / PtP (switchable)
Also configurable via TIA-Portal

 [Datasheet]


 [Manual]

314-6CF02

CPU 314ST/DPM - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100
512 kB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
 [Datasheet]
 [Manual]

314-6CF03

CPU 314ST/DPM - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100
512 kB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

314-6CF23

CPU 314ST/DPM - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100
512 kB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal

 [Datasheet]


 [Manual]

314-6CG13

CPU 314SC/DPM - SPEED7 technology␍
SPEED7 technology
24 x DI, 16 x DO, 8 x DIO, 4 x AI, 1 x AI Pt100, 2 x AO
256 kB work memory
Memory extension (max. 1 MB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

314-6CG23

CPU 314SC/DPM - SPEED7 technology (300S+)␍
SPEED7 technology
24 x DI, 16 x DO, 8 x DIO, 4 x AI, 1 x AI Pt100, 2 x AO, incl. front connectors
512 kB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

315-2AG12

CPU 315SB/DPM - SPEED7 technology␍
SPEED7 technology
1 MB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
 [Datasheet]
 [Manual]

315-2AG13

CPU 315SB/DPM - SPEED7 technology␍
SPEED7 technology
1 MB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

315-2AG23

CPU 315SB/DPM - SPEED7 technology␍
SPEED7 technology
1 MB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]

 [Manual]

315-4EC12

CPU 315SN/EC - SPEED7 technology␍
SPEED7 technology
1 MB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
EtherCAT controller integrated
 [Datasheet]
 [Manual]

315-4EC32

CPU 315SN/EC ECO - SPEED7 technology␍
SPEED7 technology
512 KB work memory
PtP
EtherCAT Master integrated
 [Datasheet]
 [Manual]

315-4NE12

CPU 315SN/NET - SPEED7 technology␍
SPEED7 technology
1 MB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
CP 343 integrated
 [Datasheet]
 [Manual]

315-4NE13

CPU 315SN/NET - SPEED7 technology␍
SPEED7 technology
1 MB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
CP 343 integrated
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

315-4PN12

CPU 315SN/PN - SPEED7 technology␍
SPEED7 technology
1 MB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master / PtP (switchable)
PROFINET controller integrated
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

315-4PN33

CPU 315SN/PN ECO - SPEED7 technology␍
SPEED7 technology
512 KB work memory
PtP
PROFINET controller integrated
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

317-2AJ12

CPU 317SE/DPM - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master / PtP (switchable)
 [Datasheet]
 [Manual]
 [STP]

317-2AJ13

CPU 317SE/DPM - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master / PtP (switchable)
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

317-4EC12

CPU 317SN/EC - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master / PtP (switchable)
EtherCAT-Master integrated
 [Datasheet]
 [Manual]

317-4NE12

CPU 317SN/NET - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master / PtP (switchable)
CP 343 integrated
 [Datasheet]
 [Manual]

317-4NE13

CPU 317SN/NET - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master / PtP (switchable)
CP 343 integrated
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

317-4PN12

CPU 317SN/PN - SPEED7 technology␍
SPEED7 technology, SPEED-Bus
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master / PtP (switchable)
PROFINET Controller integrated
Also configurable via TIA-Portal
 [Datasheet]
 [Manual]

Похожие товары

CPU 315SN/NET, 1...2MB, MPI, Ethernet (PG/OP), RS-485, Ethernet-CP 343

Изделие: 315-4NE12
Рабочая память 1 Мбайт (расширение до 2 Mбайт), MPI, Ethernet PG/OP, порт RS-485 (PROFIBUS DP master или PtP), встроенный Ethernet CP 343

Розничная цена: 733266
БЫСТРЫЙ ЗАКАЗ
CPU 315SN/PN ECO, 512kB, RS-485 PtP, PROFINET, TIA

Изделие: 315-4PN33
Рабочая память 512 кбайт (без расширения), MPI, Ethernet PG/OP, порт RS-485 (PtP), встроенный Ethernet CP с поддержкой PROFINET, совместимость с TIA Portal

Розничная цена: 419631
БЫСТРЫЙ ЗАКАЗ
CPU 313SC/DPM, 16DI, 16DO, 128...512kB, PROFIBUS-DP master/PtP, TIA

Изделие: 313-6CF13
Рабочая память 64 кбайт (расширение до 512 кбайт), MPI, порт RS-485 (PROFIBUS DP master или PtP), Ethernet PG/OP, 16 x DI, 16 x DO, 3 счетчика (32 разряда, 30 кГц), совместимость с TIA Portal (требуется 40-контактный фронтальный соединитель, заказывается отдельно)

Розничная цена: 382477
БЫСТРЫЙ ЗАКАЗ
CPU 315SB/DPM, 1MB...2MB, MPI, MMC, real time clock, Ethernet (PG/OP), RS-485, TIA

Изделие: 315-2AG13
Рабочая память 1 Мбайт (расширение до 2 Мбайт), MPI, Ethernet PG/OP, порт RS-485 (PROFIBUS DP Master или PtP), cовместимость с TIA Portal

Розничная цена: 484200
БЫСТРЫЙ ЗАКАЗ

Наши услуги

36 реализованных проекта

Производители

PHH 600300589924
ИКК KZ87826A1KTD2014870
БИК ALMNKZKA AO "АТФ" Банка с Алматы
БИН 101040014805
Разработка сайта
ТОО «Control Link» | Республика Казахстан | г. Алматы | Ауэзовский район | ул. Толе Би | д. 302, Литер Д | офис № 205 Компания ТОО CONTROL LINK создана в 2010 г. как инжиниринговая компания с целью комплексных поставок и внедрения средств автоматизации технологических процессов (АСУ ТП), систем обеспечения связи, контроля и безопасности на объекте. Company Formation CONTROL LINK LLP was created in 2010 as an engineering company for the purpose of integrated supply and implementation of process automation (APCS) systems, communication, control and security at the facility.
РНН 600300589924 | ИИК KZ67826A1KZTD2014970 | БИК АLMNKZKA АО «АТФ Банк» | г.Алматы БИН 101040014805
Адрес:

г. Алматы, Ауэзовский район
ул. Толе Би 302, Литер "Д"
офис № 205

Телефон:

+7 (727) 268-0321
+7 (701) 082-9486
+7 (707) 493-7210

Факс:

+7 (727) 268-0321

Яндекс.Метрика
