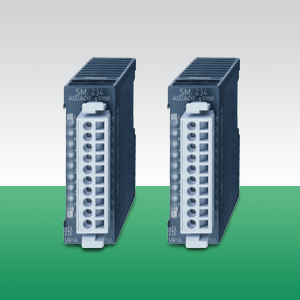

SM 234, 2AI 16Bit, 2AO 12Bit, U/I

Изделие: 234-1BD50


Краткое описание:
2 канала AI, 16 разрядов/2 канала AO, 12 разрядов, сигналы тока и напряжения
Производитель: VIPA
Вес: 0.11 кг.
Розничная цена: 122067
БЫСТРЫЙ ЗАКАЗ

2 канала AI, 16 разрядов/2 канала AO, 12 разрядов, сигналы тока и напряжения

200V: Аналоговые сигнальные модули

Модули аналогового ввода-вывода используются для подключения к системе управления датчиков и исполнительных устройств и обеспечивают ее сопряжение с уровнем процесса. Модули аналогового ввода осуществляют преобразование аналоговых сигналов, поступающих от датчиков и других источников, в цифровую форму и передают их по системной шине в модуль ЦПУ или интерфейсный модуль. Модули аналогового вывода преобразуют цифровые данные, поступающие в них по системной шине, в непрерывные электрические сигналы управления исполнительными устройствами.

Характеристики

  • Широкий набор модулей с поддержкой различных типов сигналов
  • Компактная конструкция
  • Гальваническая изоляция от системной шины
  • Светодиодные индикаторы состояния
  • Фронтальные соединители с пружинными клеммами в комплекте поставки
  • Маркировочные этикетки в комплекте поставки
  • Монтаж на 35 мм DIN-рейку
  • Срок гарантии 2 года

Order no.

234-1BD50

Type SM 234

General information

Note -
Features 2 inputs/2 outputs
Configurable
Voltage, current

Current consumption/power loss

Current consumption from backplane bus 100 mA
Power loss 2.9 W

Technical data analog inputs

Number of inputs 2
Cable length, shielded 200 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage
Current consumption from load voltage L+ (without load) 70 mA
Voltage inputs
Min. input resistance (voltage range) 100 kΩ
Input voltage ranges +1 V ... +5 V
0 V ... +10 V
-10 V ... +10 V
Operational limit of voltage ranges -
Operational limit of voltage ranges with SFU -
Basic error limit voltage ranges +/-0.2% ... +/-0.6%
Basic error limit voltage ranges with SFU -
Destruction limit current -
Current inputs
Max. input resistance (current range) 50 Ω
Input current ranges +4 mA ... +20 mA
0 mA ... +20 mA
-20 mA ... +20 mA
Operational limit of current ranges -
Operational limit of current ranges with SFU -
Basic error limit current ranges +/-0.3% ... +/-0.8%
Radical error limit current ranges with SFU -
Destruction limit current inputs (electrical current) -
Destruction limit current inputs (voltage) -
Resistance inputs -
Resistance ranges -
Operational limit of resistor ranges -
Operational limit of resistor ranges with SFU -
Basic error limit -
Basic error limit with SFU -
Destruction limit resistance inputs -
Resistance thermometer inputs -
Resistance thermometer ranges -
Operational limit of resistance thermometer ranges -
Operational limit of resistance thermometer ranges with SFU -
Basic error limit thermoresistor ranges -
Basic error limit thermoresistor ranges with SFU -
Destruction limit resistance thermometer inputs -
Thermocouple inputs -
Thermocouple ranges -
Operational limit of thermocouple ranges -
Operational limit of thermocouple ranges with SFU -
Basic error limit thermoelement ranges -
Basic error limit thermoelement ranges with SFU -
Destruction limit thermocouple inputs -
Programmable temperature compensation -
External temperature compensation -
Internal temperature compensation -
Internal temperature compensation -
Technical unit of temperature measurement -
Resolution in bit 16
Measurement principle Sigma-Delta
Basic conversion time 6.75 ms - 268 ms
Noise suppression for frequency 50 Hz and 60 Hz
Initial data size 4 Byte

Technical data analog outputs

Number of outputs 2
Cable length, shielded 200 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage
Current consumption from load voltage L+ (without load) 70 mA
Voltage output short-circuit protection
Voltage outputs
Min. load resistance (voltage range) 1 kΩ
Max. capacitive load (current range) 1 µF
Max. inductive load (current range) 30 mA
Output voltage ranges -10 V ... +10 V
+1 V ... +5 V
0 V ... +10 V
Operational limit of voltage ranges -
Basic error limit voltage ranges +/-0.2% ... +/-0.6%
Destruction limit against external applied voltage -
Current outputs
Max. in load resistance (current range) 500 Ω
Max. inductive load (current range) 10 mH
Max. inductive load (current range) 14 V
Output current ranges -20 mA ... +20 mA
+4 mA ... +20 mA
0 mA ... +20 mA
Operational limit of current ranges -
Basic error limit current ranges +/-0.3% ... +/-0.8%
Destruction limit against external applied voltage -
Settling time for ohmic load 0.05 ms
Settling time for capacitive load 0.5 ms
Settling time for inductive load 0.1 ms
Resolution in bit 12
Conversion time 2.5 ms/all channels
Substitute value can be applied yes
Output data size 4 Byte

Status information, alarms, diagnostics

Status display none
Interrupts yes
Process alarm no
Diagnostic interrupt yes, parameterizable
Diagnostic functions yes
Diagnostics information read-out possible
Supply voltage display green LED
Group error display red SF LED
Channel error display none

Isolation

Between channels -
Between channels of groups to -
Between channels and backplane bus
Between channels and power supply
Max. potential difference between circuits -
Max. potential difference between inputs (Ucm) -
Max. potential difference between Mana and Mintern (Uiso) DC 75 V/ AC 60 V
Max. potential difference between inputs and Mana (Ucm) -
Max. potential difference between inputs and Mintern (Uiso) -
Max. potential difference between Mintern and outputs -
Insulation tested with DC 500 V

Datasizes

Input bytes 4
Output bytes 4
Parameter bytes 14
Diagnostic bytes 12

Housing

Material PPE / PA 6.6
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 25.4 mm x 76 mm x 88 mm
Weight 110 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes
Order no.Name/Description

231-1BD30

SM 231 - Analog input ECO␍
4 inputs
Configurable
Voltage +/-10 V
 [Datasheet]
 [Manual]

231-1BD40

SM 231 - Analog input ECO␍
4 inputs
Configurable
Current 4...20 mA, +/-20 mA
 [Datasheet]
 [Manual]

231-1BD53

SM 231 - Analog input␍
4 inputs
Configurable
Voltage, current
Resistance
Resistance thermometer, thermocouple
 [Datasheet]
 [Manual]

231-1BD60

SM 231 - Analog input␍
4 input 12 bit
Current 4...20 mA
Potential separated per channel
 [Datasheet]
 [Manual]

231-1BD70

SM 231 - Analog input␍
4 input 12 bit
Voltage +/-10 V
Potential separated per channel
 [Datasheet]
 [Manual]

231-1BF00

SM 231 - Analog input␍
8 inputs
Configurable
Voltage 0...60 mV
Resistance thermometer, thermocouple
 [Datasheet]
 [Manual]

231-1FD00

SM 231 - Analog input FAST␍
4 fast inputs
Configurable
Voltage, current
Cycle time 0.8 ms
 [Datasheet]
 [Manual]

232-1BD30

SM 232 - Analog output ECO␍
4 outputs
Configurable
Voltage +/-10 V, 0..10 V
 [Datasheet]
 [Manual]

232-1BD40

SM 232 - Analog output ECO␍
4 outputs
Configurable
Current 0(4)...20mA
 [Datasheet]
 [Manual]

232-1BD51

SM 232 - Analog output␍
4 outputs
Configurable
Voltage, current
 [Datasheet]
 [Manual]

234-1BD50

SM 234 - Analog in-/output␍
2 inputs/2 outputs
Configurable
Voltage, current
 [Datasheet]
 [Manual]

234-1BD60

SM 234 - Analog in-/output␍
4 inputs/2 outputs
Configurable
Voltage, current
Resistance, resistance thermometer
 [Datasheet]
 [Manual]

238-2BC00

SM 238C - Digital in-/output, counter, analog in-/output␍
16 (12) digital inputs
0 (4) digital outputs
max. 3 counter
4 analog inputs
2 analog outputs
 [Datasheet]
 [Manual]
