EM 123, 16DI, DC 24V, 8DO, DC 30V/AC 230V/5A

Изделие: 123-4EJ11

Краткое описание:

DI 16x24 В пост. тока, DO 8xреле

Производитель: VIPA
Вес: 0.25 кг.

Розничная цена: 101106

БЫСТРЫЙ ЗАКАЗ

EM 123 123-4EJ11

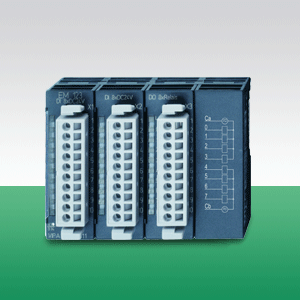

Модуль дискретного ввода-вывода EM 123, DI 16x24 В пост. тока, DO 8 реле

Наименование	Модуль дискретных входов/выходов DI 16xDC 24 В / DO 8 реле, 5A
Тип	VIPA123-4EJ11
Габаритные размеры, В х Ш х Г, мм	101.6 mm x 76 mm x 48 mm
Температура окружающей среды	0 °C .. 60 °C
Серия	100V
Количество входов	16
Количество выходов	8
Тип входного сигнала	DC 24В, PNP
Тип выходного сигнала	DC 30 V/ AC 230 V

Structure

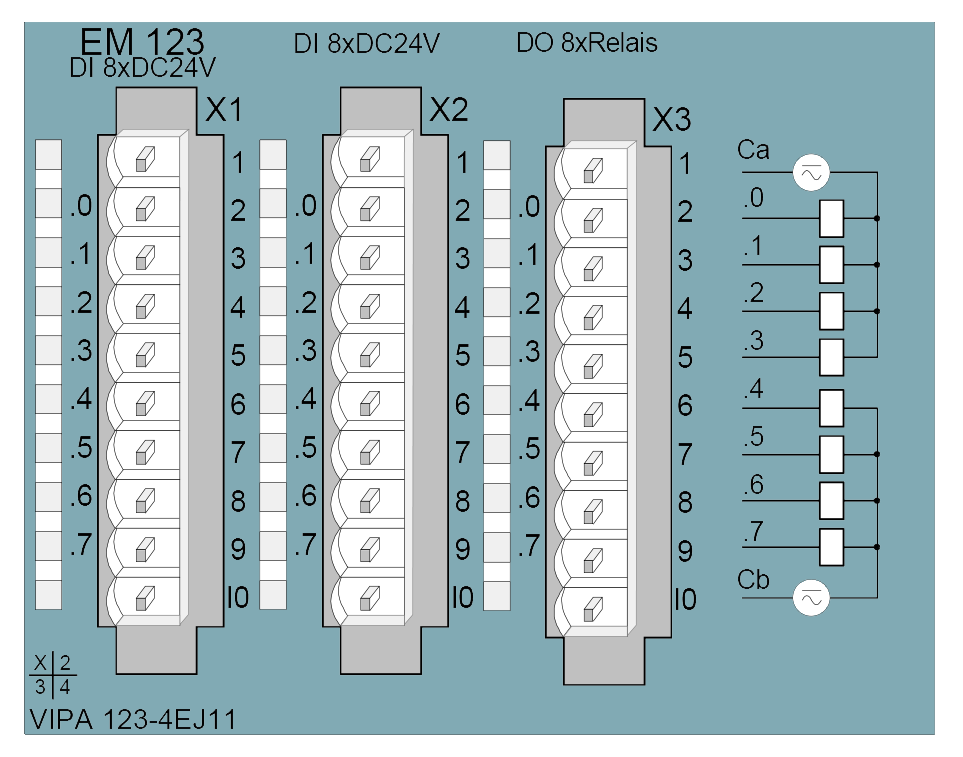

Position X1	Position X2	Position X3	Position X4
DI 8xDC 24V	DI 8xDC 24V	DO 8xRelay	not used

Order no.	123-4EJ11
Type	EM 123
General information
Note	-
Features	16 inputs 8 relay outputs
Current consumption/power loss
Current consumption from backplane bus	300 mA
Power loss	4.5 W
Technical data digital inputs
Number of inputs	16
Cable length, shielded	1000 m
Cable length, unshielded	600 m
Rated load voltage	-
Current consumption from load voltage L+ (without load)	-
Rated value	DC 24 V
Input voltage for signal "0"	DC 0...5 V
Input voltage for signal "1"	DC 15...28.8 V
Input voltage hysteresis	-
Frequency range	-
Input resistance	-
Input current for signal "1"	7 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current	1.5 mA
Input delay of "0" to "1"	3 ms
Input delay of "1" to "0"	3 ms
Number of simultaneously utilizable inputs horizontal configuration	16
Number of simultaneously utilizable inputs vertical configuration	16
Input characteristic curve	IEC 61131-2, type 1
Initial data size	2 Byte
Technical data digital outputs
Number of outputs	8
Cable length, shielded	1000 m
Cable length, unshielded	600 m
Rated load voltage	DC 30 V/ AC 230 V
Reverse polarity protection of rated load voltage	-
Current consumption from load voltage L+ (without load)	-
Output current at signal "1", rated value	5 A
Output delay of "0" to "1"	10 ms
Output delay of "1" to "0"	5 ms
Minimum load current	-
Lamp load	-
Parallel switching of outputs for redundant control of a load	not possible
Parallel switching of outputs for increased power	not possible
Actuation of digital input	-
Switching frequency with resistive load	max. 10 Hz
Switching frequency with inductive load	-
Switching frequency on lamp load	-
Internal limitation of inductive shut-off voltage	-
Short-circuit protection of output	-
Trigger level	-
Number of operating cycle of relay outputs	10^7
Switching capacity of contacts	-
Output data size	1 Byte
Status information, alarms, diagnostics
Status display	green LED per channel
Interrupts	no
Process alarm	no
Diagnostic interrupt	no
Diagnostic functions	no
Diagnostics information read-out	none
Supply voltage display	none
Group error display	none
Channel error display	none
Isolation
Between channels	-
Between channels of groups to	8
Between channels and backplane bus
Insulation tested with	DC 500 V
Datasizes
Input bytes	2
Output bytes	2
Parameter bytes	0
Diagnostic bytes	0
Housing
Material	PPE / PA 6.6
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	101.6 mm x 76 mm x 48 mm
Weight	250 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL508 certification	yes

Order no.	Name/Description
123-4EH01	EM 123 - Expansion module, digital 8 inputs/ 8 outputs DC 24 V	[Datasheet] [Manual]
123-4EJ01	EM 123 - Expansion module, digital 16 inputs/ 8 outputs DC 24 V	[Datasheet] [Manual]
123-4EJ11	EM 123 - Expansion module, digital 16 inputs 8 relay outputs	[Datasheet] [Manual]
123-4EJ20	EM 123 - Expansion module, digital 16 inputs AC/DC 60...230 V 8 relay outputs	[Datasheet] [Manual]
123-4EL01	EM 123 - Expansion module, digital 16 inputs/ 16 outputs Isolated	[Datasheet] [Manual]
