CP 040, RS-422/485

Краткое описание:

Интерфейс RS-422/485, поддержка протоколов ASCII, STX/ETX, 3964(R), Modbus master /Modbus slave (ASCII, RTU)

Производитель: VIPA
Вес: 0.1 кг.

Розничная цена: 87543

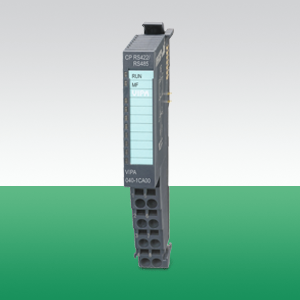

Коммуникационный процессор CP 040, интерфейс RS-422/485, поддержка протоколов ASCII, STX/ETX, 3964(R), Modbus master /Modbus slave (ASCII, RTU)

Наименование	Коммуникационный процессор CP 040, RS-422/485
Тип	040-1CA00
Габаритные размеры, В х Ш х Г, мм	12.9 mm x 109 mm x 76.5 mm
Температура окружающей среды	0 °C .. 60 °C
Интерфейс	RS-422/485

Status indication

RUN	MF	Description
green	red
●	○	Bus communication is OK Module status is OK
●	●	Bus communication is OK Module status reports an error
○	●	Bus communication is not possible Module status reports an error
○	○	Error at bus power supply
X	B	Error in configuration Chapter 2.7 ‘Trouble shooting - LEDs’ on page 28

TxD	green	●	Transmit data
RxD	green	●	Receive data
IF	red	B	Modbus: Internal error Other protocols: error indicator for overflow, parity or framing errors
on: ● \| off: ○ \| blinks with 2Hz: B \| not relevant: X

Pin assignment

PM - Power module	Pos.	Function	Type	Description
	1	TxD	O	Send data (RS422)
	2	RxD-P (B) TxD/RxD-P (B)	I O/I	Receive data (RS422) Send-/Receive data (RS485)
	3	RTS	O	Request to send (RS485) RTS at logic "1": CP ready to send RTS at logic "0": CP is not sending
	4	TERM	I	Terminating resistor *
	5	TxD-N (A)	O	Send data (RS422)
	6	RxD-N (A) TxD/RxD-N (A)	I O/I	Receive data (RS422) Send-/Receive data (RS485)
	7	GND_ISO	O	Signal ground (isolated)
	8	TERM	I	Terminating resistor *

*) A bridge between the two TERM inputs activates a terminal resistance of 120Ω on the receiver side between RxD-P (Pin 2) and RxD-N (Pin 6).

I: Input, O: Output

Order no.	040-1CA00
Type	CP 040 RS422/485
Module ID	0E41 1700
General information
Note	-
Features	RS422/485 interface
Current consumption/power loss
Current consumption from backplane bus	100 mA
Current consumption from load voltage L+ (without load)	10 mA
Power loss	1 W
Status information, alarms, diagnostics
Status display	yes
Interrupts	yes, parameterizable
Process alarm	no
Diagnostic interrupt	yes, parameterizable
Diagnostic functions	yes, parameterizable
Diagnostics information read-out	possible
Supply voltage display	green LED
Group error display	red LED
Channel error display	red LED
Point-to-point communication
PtP communication
Interface isolated
RS232 interface	-
RS422 interface
RS485 interface
Connector	Terminal module
Transmission speed, min.	150 bit/s
Transmission speed, max.	115.2 kbit/s
Cable length, max.	1200 m
Point-to-point protocol
ASCII protocol
STX/ETX protocol
3964(R) protocol
RK512 protocol	-
USS master protocol	-
Modbus master protocol
Modbus slave protocol
Special protocols	-
Datasizes
Input bytes	8 / 20 / 60
Output bytes	8 / 20 / 60
Parameter bytes	23
Diagnostic bytes	20
Housing
Material	PPE / PPE GF10
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	12.9 mm x 109 mm x 76.5 mm
Weight	60 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL508 certification	yes
