Модуль аналогового вывода, 4 канала, 12 разрядов, выходной диапазон 0…10 В
|
Наименование
|
SM 032, AO 4x12Bit, 0…10V |
|
Тип
|
032-1BD30 |
|
Габаритные размеры, В х Ш х Г, мм
|
12.9 mm x 109 mm x 76.5 mm |
|
Температура окружающей среды
|
0 °C ... 60 °C |
|
Количество выходов
|
4 |
|
Тип выходного сигнала
|
0…10V |
 |
|

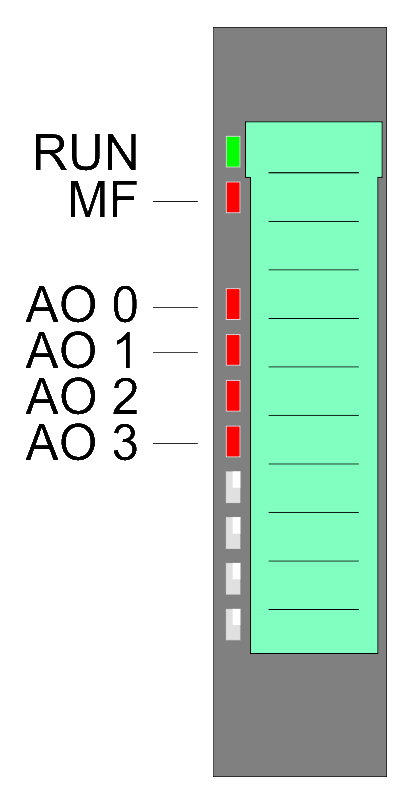

Status indication
 |
RUN | MF | AO x | Description |
| green | red | red |
|
|
| ● | ○ | X | Bus communication is OK Module status is OK |
|
| ● | ● | X |
Bus communication is OK |
|
| ○ | ● | X |
Bus communication is not possible |
|
| ○ | ○ | X | Error at bus power supply | |
| X | B | X |
Error in configuration |
|
| ● | ○ | ● |
Error channel x
|
|
| on: ● | off: ○ | blinks with 2Hz: B | not relevant: X | ||||
Pin assignment
| PM - Power module | Pos. | Function |
Type |
Description | |
 |
1 | AO 0 | O | Channel 0 | |
| 2 | AGND | O |
Ground channels |
||
| 3 | AO 2 | O |
Channel 2 |
||
| 4 | AGND | O | Ground channels | ||
| 5 | AO 1 | O | Channel 1 | ||
| 6 | AGND | O |
Ground channels |
||
| 7 | AO 3 | O |
Channel 3 |
||
| 8 | AGND | O | Ground channels |
O: Output
Order no. |
032-1BD30 |
| Type | SM 032 |
| Module ID | 0503 25E0 |
General information |
|
| Note | - |
| Features | 4 outputs 12Bit Voltage 0...10 V |
Current consumption/power loss |
|
| Current consumption from backplane bus | 80 mA |
| Power loss | 1.2 W |
Technical data analog outputs |
|
| Number of outputs | 4 |
| Cable length, shielded | 200 m |
| Rated load voltage | DC 24 V |
| Reverse polarity protection of rated load voltage |  |
| Current consumption from load voltage L+ (without load) | - |
| Voltage output short-circuit protection | |
| Voltage outputs | |
| Min. load resistance (voltage range) | 5 kΩ |
| Max. capacitive load (current range) | 1 µF |
| Max. inductive load (current range) | 10 mA |
| Output voltage ranges | 0 V ... +10 V |
| Operational limit of voltage ranges | +/-0.3% |
| Basic error limit voltage ranges | +/-0.2% |
| Destruction limit against external applied voltage | - |
| Current outputs | - |
| Max. in load resistance (current range) | - |
| Max. inductive load (current range) | - |
| Max. inductive load (current range) | - |
| Output current ranges | - |
| Operational limit of current ranges | - |
| Basic error limit current ranges | - |
| Destruction limit against external applied voltage | - |
| Settling time for ohmic load | 1.5 ms |
| Settling time for capacitive load | 2 ms |
| Settling time for inductive load | - |
| Resolution in bit | 12 |
| Conversion time | 2 ms all channels |
| Substitute value can be applied | no |
| Output data size | 8 Byte |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | yes |
| Diagnostics information read-out | possible |
| Supply voltage display | green LED |
| Group error display | red LED |
| Channel error display | red LED per channel |
Isolation |
|
| Between channels | - |
| Between channels of groups to | - |
| Between channels and backplane bus | |
| Between channels and power supply | |
| Max. potential difference between circuits | - |
| Max. potential difference between inputs (Ucm) | - |
| Max. potential difference between Mana and Mintern (Uiso) | DC 75 V/ AC 60 V |
| Max. potential difference between inputs and Mana (Ucm) | - |
| Max. potential difference between inputs and Mintern (Uiso) | - |
| Max. potential difference between Mintern and outputs | - |
| Insulation tested with | DC 500 V |
Datasizes |
|
| Input bytes | 0 |
| Output bytes | 8 |
| Parameter bytes | 10 |
| Diagnostic bytes | 20 |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 12.9 mm x 109 mm x 76.5 mm |
| Weight | 60 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
