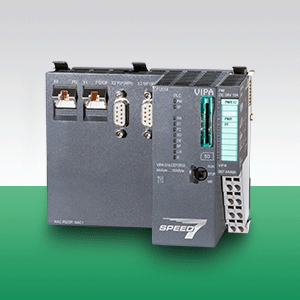

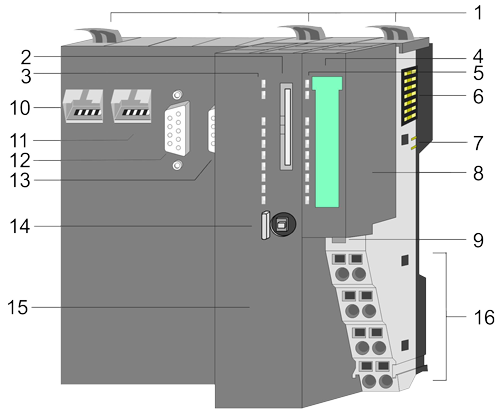

Order no.
|
014-CEF0R01
|
| Type |
CPU 014 |
| Module ID |
- |
General information
|
| Note |
- |
| Features |
SPEED7 technology
128 kB work memory

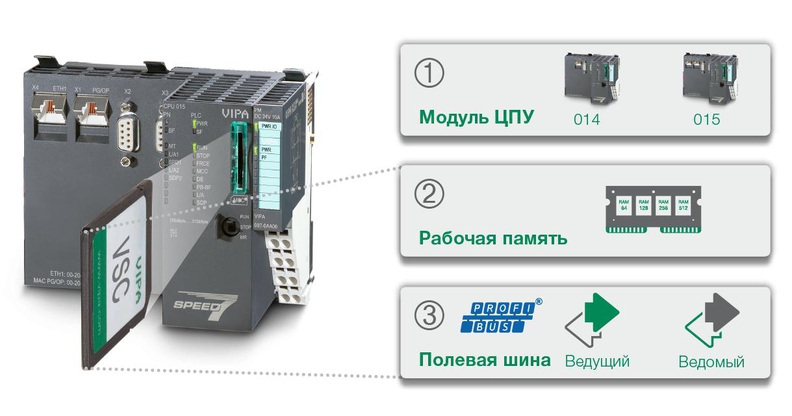

Memory extension (max. 256 kB) via VIPASetCard
PROFIBUS slave/master activatable via VIPASetCard
Full-function RS485 interface integrated, switchable MPI/PtP
Ethernet PG/OP interface |

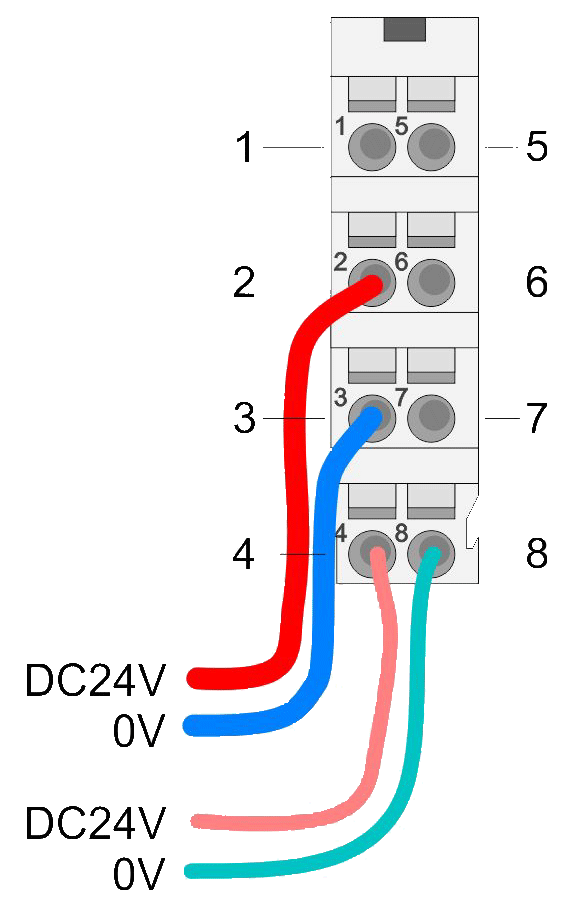

Technical data power supply
|
| Power supply (rated value) |
DC 24 V |
| Power supply (permitted range) |
DC 20.4...28.8 V |
| Reverse polarity protection |
 |
| Current consumption (no-load operation) |
120 mA |
| Current consumption (rated value) |
1 A |
| Inrush current |
3 A |
| I²t |
0.1 A²s |
| Max. current drain at backplane bus |
3 A |
| Max. current drain load supply |
10 A |
| Power loss |
6 W |
Load and working memory
|
| Load memory, integrated |
256 KB |
| Load memory, maximum |
256 KB |
| Work memory, integrated |
128 KB |
| Work memory, maximal |
256 KB |
| Memory divided in 50% program / 50% data |
|
| Memory card slot |
SD/MMC-Card with max. 2 GB |
Hardware configuration
|
| Racks, max. |
5 |
| Modules per rack, max. |
total max. 64 minus number line extensions |
| Number of integrated DP master |
1 |
| Number of DP master via CP |
- |
| Operable function modules |
64 |
| Operable communication modules PtP |
64 |
| Operable communication modules LAN |
- |
Command processing times
|
| Bit instructions, min. |
0.02 µs |
| Word instruction, min. |
0.02 µs |
| Double integer arithmetic, min. |
0.02 µs |
| Floating-point arithmetic, min. |
0.12 µs |
Timers/Counters and their retentive characteristics
|
| Number of S7 counters |
512 |
| S7 counter remanence |
adjustable 0 up to 512 |
| S7 counter remanence adjustable |
C0 .. C7 |
| Number of S7 times |
512 |
| S7 times remanence |
adjustable 0 up to 512 |
| S7 times remanence adjustable |
not retentive |
Data range and retentive characteristic
|
| Number of flags |
8192 Byte |
| Bit memories retentive characteristic adjustable |
adjustable 0 up to 8192 |
| Bit memories retentive characteristic preset |
MB0 .. MB15 |
| Number of data blocks |
1024 |
| Max. data blocks size |
64 KB |
| Number range DBs |
1 ... 8191 |
| Max. local data size per execution level |
4096 Byte |
| Max. local data size per block |
4096 Byte |
Blocks
|
| Number of OBs |
22 |
| Maximum OB size |
64 KB |
| Total number DBs, FBs, FCs |
1024 |
| Number of FBs |
1024 |
| Maximum FB size |
64 KB |
| Number range FBs |
0 ... 8191 |
| Number of FCs |
1024 |
| Maximum FC size |
64 KB |
| Number range FCs |
0 ... 8191 |
| Maximum nesting depth per priority class |
16 |
| Maximum nesting depth additional within an error OB |
4 |
Time
|
| Real-time clock buffered |
|
| Clock buffered period (min.) |
30 d |
| Type of buffering |
Goldcap |
| Load time for 50% buffering period |
15 min |
| Load time for 100% buffering period |
1 h |
| Accuracy (max. deviation per day) |
10 s |
| Number of operating hours counter |
8 |
| Clock synchronization |
|
| Synchronization via MPI |
Master/Slave |
| Synchronization via Ethernet (NTP) |
no |
Address areas (I/O)
|
| Input I/O address area |
2048 Byte |
| Output I/O address area |
2048 Byte |
| Process image adjustable |
|
| Input process image preset |
128 Byte |
| Output process image preset |
128 Byte |
| Input process image maximal |
2048 Byte |
| Output process image maximal |
2048 Byte |
| Digital inputs |
16384 |
| Digital outputs |
16384 |
| Digital inputs central |
512 |
| Digital outputs central |
512 |
| Integrated digital inputs |
- |
| Integrated digital outputs |
- |
| Analog inputs |
1024 |
| Analog outputs |
1024 |
| Analog inputs, central |
256 |
| Analog outputs, central |
256 |
| Integrated analog inputs |
- |
| Integrated analog outputs |
- |
Communication functions
|
| PG/OP channel |
|
| Global data communication |
|
| Number of GD circuits, max. |
8 |
| Size of GD packets, max. |
22 Byte |
| S7 basic communication |
|
| S7 basic communication, user data per job |
76 Byte |
| S7 communication |
|
| S7 communication as server |
|
| S7 communication as client |
- |
| S7 communication, user data per job |
160 Byte |
| Number of connections, max. |
32 |
Functionality Sub-D interfaces
|
| Type |
X2 |
| Type of interface |
RS485 |
| Connector |
Sub-D, 9-pin, female |
| Electrically isolated |
|
| MPI |
|
| MP²I (MPI/RS232) |
- |
| DP master |
- |
| DP slave |
- |
| Point-to-point interface |
|
| 5V DC Power supply |
max. 90mA, isolated |
| 24V DC Power supply |
max. 100mA, non-isolated |
| |
| Type |
X3 |
| Type of interface |
RS485 |
| Connector |
Sub-D, 9-pin, female |
| Electrically isolated |
|
| MPI |
|
| MP²I (MPI/RS232) |
- |
| DP master |
optional |
| DP slave |
optional |
| Point-to-point interface |
- |
| 5V DC Power supply |
max. 90mA, isolated |
| 24V DC Power supply |
max. 100mA, non-isolated |
Functionality MPI
|
| Number of connections, max. |
32 |
| PG/OP channel |
|
| Routing |
|
| Global data communication |
|
| S7 basic communication |
|
| S7 communication |
|
| S7 communication as server |
|
| S7 communication as client |
- |
| Transmission speed, min. |
19.2 kbit/s |
| Transmission speed, max. |
12 Mbit/s |
Functionality PROFIBUS master
|
| PG/OP channel |
|
| Routing |
|
| S7 basic communication |
|
| S7 communication |
|
| S7 communication as server |
|
| S7 communication as client |
- |
| Activation/deactivation of DP slaves |
- |
| Direct data exchange (slave-to-slave communication) |
- |
| DPV1 |
|
| Transmission speed, min. |
9.6 kbit/s |
| Transmission speed, max. |
12 Mbit/s |
| Number of DP slaves, max. |
124 |
| Address range inputs, max. |
2 KB |
| Address range outputs, max. |
2 KB |
| User data inputs per slave, max. |
244 Byte |
| User data outputs per slave, max. |
244 Byte |
Functionality PROFIBUS slave
|
| PG/OP channel |
|
| Routing |
|
| S7 communication |
|
| S7 communication as server |
|
| S7 communication as client |
- |
| Direct data exchange (slave-to-slave communication) |
- |
| DPV1 |
|
| Transmission speed, min. |
9.6 kbit/s |
| Transmission speed, max. |
12 Mbit/s |
| Automatic detection of transmission speed |
- |
| Transfer memory inputs, max. |
244 Byte |
| Transfer memory outputs, max. |
244 Byte |
| Address areas, max. |
32 |
| User data per address area, max. |
32 Byte |
Point-to-point communication
|
| PtP communication |
|
| Interface isolated |
|
| RS232 interface |
- |
| RS422 interface |
- |
| RS485 interface |
|
| Connector |
Sub-D, 9-pin, female |
| Transmission speed, min. |
150 bit/s |
| Transmission speed, max. |
115.5 kbit/s |
| Cable length, max. |
500 m |
Point-to-point protocol
|
| ASCII protocol |
|
| STX/ETX protocol |
|
| 3964(R) protocol |
|
| RK512 protocol |
- |
| USS master protocol |
|
| Modbus master protocol |
|
| Modbus slave protocol |
|
| Special protocols |
- |
Functionality RJ45 interfaces
|
| Type |
X1 |
| Type of interface |
Ethernet 10/100 MBit Switch |
| Connector |
RJ45 |
| Electrically isolated |
|
| PG/OP channel |
|
| Number of connections, max. |
4 |
| Productive connections |
|
Ethernet communication via PG/OP
|
| Number of productive connections via PG/OP, max. |
4 |
| Number of productive connections by Siemens NetPro, max. |
4 |
| S7 connections |
BSEND, BRCV, GET, PUT, Connection of active and passive data handling |
| User data per S7 connection, max. |
64 KB |
| TCP-connections |
FETCH PASSIV, WRITE PASSIV, Connection of passive data handling |
| User data per TCP connection, max. |
8 KB |
| ISO on TCP connections (RFC 1006) |
FETCH PASSIV, WRITE PASSIV, Connection of passive data handling |
| User data per ISO connection, max. |
8 KB |
Ethernet open communication via PG/OP
|
| Number of configurable connections, max. |
4 |
| ISO on TCP connections (RFC 1006) |
TSEND, TRCV, TCON, TDISCON |
| User data per ISO on TCP connection, max. |
32 KB |
| TCP-Connections native |
TSEND, TRCV, TCON, TDISCON |
| User data per native TCP connection, max. |
32 KB |
| User data per ad hoc TCP connection, max. |
1460 Byte |
| UDP-connections |
TUSEND, TURCV |
| User data per UDP connection, max. |
1472 KB |
Management & diagnosis
|
| Protocols |
ICMP
DCP
DHCP via PG/OP |
| Web based diagnosis |
- |
| NCM diagnosis |
- |
Housing
|
| Material |
PPE / PPE GF10 |
| Mounting |
Profile rail 35 mm |
Mechanical data
|
| Dimensions (WxHxD) |
131.5 mm x 109 mm x 83 mm |
| Net weight |
280 g |
| Weight including accessories |
- |
| Gross weight |
- |
Environmental conditions
|
| Operating temperature |
0 °C to 60 °C |
| Storage temperature |
-25 °C to 70 °C |
Certifications
|
| UL certification |
in preparation |
| KC certification |
in preparation |
