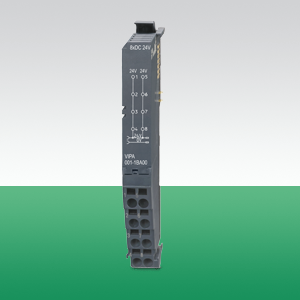

Клеммный модуль распределения потенциала, 8 клемм для цепи 24 В пост. тока
|
Наименование
|
Клеммный модуль CM 001, 8xDC 24V clamps |
|
Тип
|
001-1BA00 |
|
Габаритные размеры, В х Ш х Г, мм
|
12.9 mm x 109 mm x 52.5 mm |
|
Температура окружающей среды
|
0 °C .. 60 °C |
 |
|

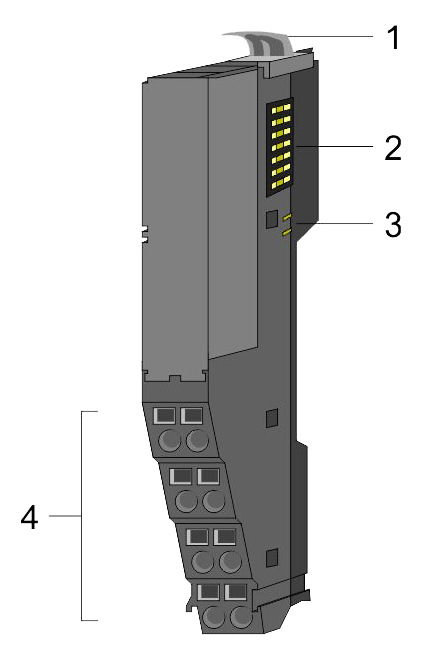

Pin assignment
| PM - Power module | Pos. | Function |
Type |
Description |
 |
1 | DC 24V | O |
DC 24V power section supply |
| 2 | DC 24V | O |
DC 24V power section supply |
|
| 3 | DC 24V | O |
DC 24V power section supply |
|
| 4 | DC 24V | O |
DC 24V power section supply |
|
| 5 | DC 24V | O |
DC 24V power section supply |
|
| 6 | DC 24V | O |
DC 24V power section supply |
|
| 7 | DC 24V | O |
DC 24V power section supply |
|
| 8 | DC 24V | O |
DC 24V power section supply |
O: Output
Order no. |
001-1BA00 |
| Type | CM 001 |
| Module ID | - |
General information |
|
| Note | - |
| Features | 8xDC 24 V clamps |
Clamp parameter |
|
| Terminal voltage max. | DC 30 V |
| Terminal current max. | 10 A |
| Total current per module, max. | 10 A |
Isolated group |
|
| Number of clamps | 2*4 |
| Color of clamps | grey |
| Binding of potential | Field voltage DC 24V |
| Potential group current, max. | 10 A |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 12.9 mm x 109 mm x 52.5 mm |
| Weight | 50 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
| Order no. | Name/Description | |
|---|---|---|
|
001-1BA00 |
CM 001 - Potential distributor module 8xDC 24 V clamps |
 [Datasheet] [Manual] [STP] |
|
001-1BA10 |
CM 001 - Potential distributor module 8xDC 0 V clamps |
[Datasheet] [Manual] [STP] |
|
001-1BA20 |
CM 001 - Potential distributor module 4xDC 24 V, 4xDC 0 V clamps |
[Datasheet] [Manual] [STP] |
