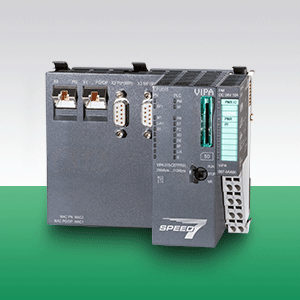

CPU 015, 256kB, Ethernet, MPI, PtP, ProfiNET

Изделие: 015-CEFPR00


Краткое описание:
Встроенная рабочая память 256 кбайт (расширение до 512 кбайт); Порт 1: Ethernet PG/OP; Порт 2: MPI & PtP; Порт 3: MPI; Порт 4: PROFINET I/O; Гнездо для карт памяти SD; Программирование в WinPLC7, SPEED7 Studio, STEP7 и TIA Portal
Производитель: VIPA
Вес: 0.31 кг.
Розничная цена: 250299
БЫСТРЫЙ ЗАКАЗ

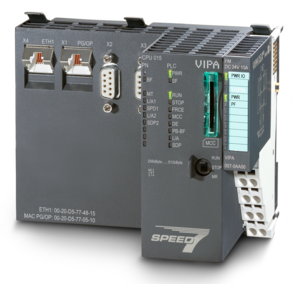

SLIO System

CPU 015 - SPEED7 TECHNOLOGY




Power supply: DC 24V
Working memory integrated: 256kByte (50% program / 50% data)
Working memory expandable up to: 512kByte
Interface 1: RJ45: PG/OP-communication
Interface 2:

RS485 (isolated): MPI, USS-Master, ASCII, ETX/STX, 3964R,

Modbus-Master /-Slave (switchable)

Interface 3:

RS485 (isolated): MPI (optional PROFIBUS-SLAVE or

PROFIBUS-MASTER)

Interface 4: RJ45: PROFINET-Controller for up to 128 nodes



SD card slot. Programmable via WinPLC7, SPEED7 Studio, SIMATIC Manager and TIA Portal

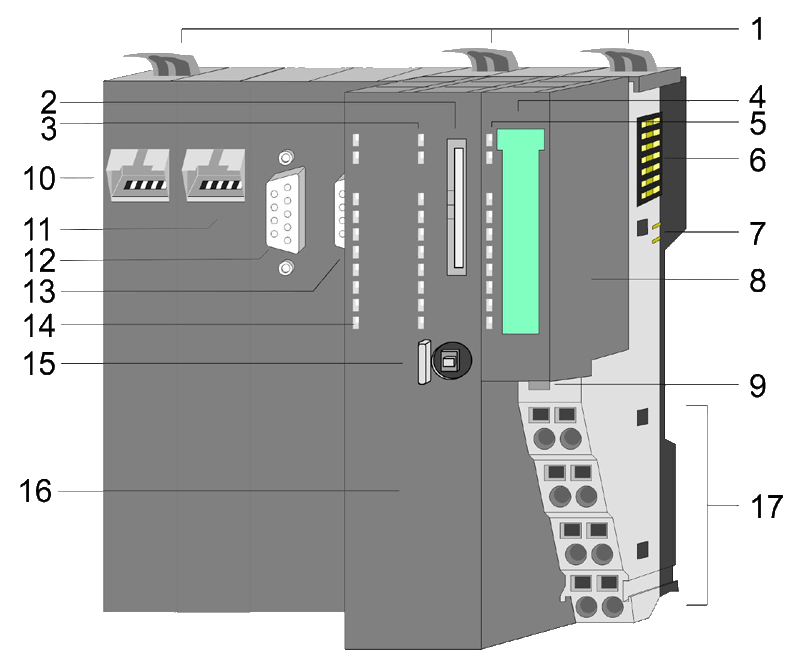

Модуль CPU 015   Описание

  1. Locking lever terminal module
  2. Slot for external storage media (lockable)
  3. LED status indication CPU part
  4. Labelling strip power module
  5. LED status indication power module
  6. Backplane bus
  7. DC 24V power section supply
  8. Power module
  9. Unlocking lever power module
  10. X4: PROFINET IO controller
  11. X1: Ethernet PG/OP channel
  12. X2: PtP(MPI) interface
  13. X3: MPI(PB) interface
  14. LED status indication PROFINET IO controller
  15. Operating mode switch CPU
  16. CPU part
  17. Terminal power module



Интерфейсы

PM

X1 Ethernet PG/OP

X4 PROFINET IO

  Описание

X2

PtP(MPI)

  Описание

X3

MPI(PB)

  Описание

  1. Transmit +
  2. Transmit -
  3. Receive +
  4. -
  5. -
  6. Receive -
  7. -
  8. -

  1. n.c.
  2. M24V
  3. RxD/TxD-P (Line B)
  4. RTS
  5. M5V
  6. P5V
  7. P24V
  8. RxD/TxD-N (Line A)
  9. n.c.

  1. n.c.
  2. M24V
  3. RxD/TxD-P (Line B)
  4. RTS
  5. M5V
  6. P5V
  7. P24V
  8. RxD/TxD-N (Line A)
  9. n.c.





PM - Power module   Pos. Function

Type

Description
  1 --- --- not connected
  2 DC 24V I DC 24V for power section supply
  3 0V I GND for power section supply
  4 Sys DC 24V I DC 24V for electronic section supply
  5 --- --- not connected
  6 DC 24V I DC 24V for power section supply
  7 0V I GND for power section supply
  8 Sys 0V I GND for electronic section supply

I Input



Basis CPU












Order no.

015-CEFPR00

Type

SLIO CPU 015
Module ID -

General information

Note

-

Features SPEED7 technology
256 kB work memory
Memory extension (max. 512 kB) via VIPASetCard
PROFIBUS slave/master activatable via VIPASetCard
Full-function RS485 interface integrated, switchable MPI/PtP
PROFINET controller for up to 128 participants integrated
Ethernet PG/OP interface

Technical data power supply

Power supply (rated value)

DC 24 V

Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) 150 mA
Current consumption (rated value) 1.1 A
Inrush current 3 A
I²t 0.1 A²s
Max. current drain at backplane bus 3 A
Max. current drain load supply 10 A
Power loss 7.5 W

Load and working memory

Load memory, integrated 512 KB
Load memory, maximum 512 KB
Work memory, integrated 256 KB
Work memory, maximal 512 KB
Memory divided in 50% program / 50% data
Memory card slot SD/MMC-Card with max. 2 GB

Hardware configuration

Racks, max.

1
Modules per rack, max. 64
Number of integrated DP master 1
Number of DP master via CP -
Operable function modules 64
Operable communication modules PtP 64
Operable communication modules LAN -

Command processing times

Bit instructions, min.

0.01 µs

Word instruction, min. 0.01 µs
Double integer arithmetic, min. 0.01 µs
Floating-point arithmetic, min. 0.06 µs

Timers/Counters and their retentive characteristics

Number of S7 counters

512

S7 counter remanence adjustable 0 up to 512
S7 counter remanence adjustable C0 .. C7
Number of S7 times 512
S7 times remanence adjustable 0 up to 512
S7 times remanence adjustable not retentive

Data range and retentive characteristic

Number of flags

8192 Byte

Bit memories retentive characteristic adjustable adjustable 0 up to 8192
Bit memories retentive characteristic preset MB0 .. MB15
Number of data blocks 4096
Max. data blocks size 64 KB
Number range DBs 1 ... 8191
Max. local data size per execution level 4096 Byte
Max. local data size per block 4096 Byte

Blocks

Number of OBs

24

Maximum OB size 64 KB
Total number DBs, FBs, FCs 4096
Number of FBs 4096
Maximum FB size 64 KB
Number range FBs 0 ... 8191
Number of FCs 4096
Maximum FC size 64 KB
Number range FCs 0 ... 8191
Maximum nesting depth per priority class 16
Maximum nesting depth additional within an error OB 4

Time

Real-time clock buffered

Clock buffered period (min.) 30 d
Type of buffering Goldcap
Load time for 50% buffering period 15 min
Load time for 100% buffering period 1 h
Accuracy (max. deviation per day) 10 s
Number of operating hours counter 8
Clock synchronization
Synchronization via MPI Master/Slave
Synchronization via Ethernet (NTP) Slave

Address areas (I/O)

Input I/O address area

2048 Byte

Output I/O address area 2048 Byte
Process image adjustable
Input process image preset 128 Byte
Output process image preset 128 Byte
Input process image maximal 2048 Byte
Output process image maximal 2048 Byte
Digital inputs 16384
Digital outputs 16384
Digital inputs central 512
Digital outputs central 512
Integrated digital inputs -
Integrated digital outputs -
Analog inputs 1024
Analog outputs 1024
Analog inputs, central 256
Analog outputs, central 256
Integrated analog inputs -
Integrated analog outputs -

Communication functions

PG/OP channel
Global data communication
Number of GD circuits, max. 8
Size of GD packets, max. 22 Byte
S7 basic communication
S7 basic communication, user data per job 76 Byte
S7 communication
S7 communication as server
S7 communication as client -
S7 communication, user data per job 160 Byte
Number of connections, max. 32

Functionality Sub-D interfaces

Type

X2

Type of interface RS485
Connector Sub-D, 9-pin, female
Electrically isolated
MPI
MP²I (MPI/RS232) -
DP master -
DP slave -
Point-to-point interface

Type X3
Type of interface RS485
Connector Sub-D, 9-pin, female
Electrically isolated
MPI
MP²I (MPI/RS232) -
DP master optional
DP slave optional
Point-to-point interface -

Functionality MPI

Number of connections, max.

32

PG/OP channel
Routing
Global data communication
S7 basic communication
S7 communication
S7 communication as server
S7 communication as client -
Transmission speed, min. 19.2 kbit/s
Transmission speed, max. 12 Mbit/s

Functionality PROFIBUS master

PG/OP channel

Routing
S7 basic communication
S7 communication
S7 communication as server
S7 communication as client -
Activation/deactivation of DP slaves -
Direct data exchange (slave-to-slave communication) -
DPV1
Transmission speed, min. 9.6 kbit/s
Transmission speed, max. 12 Mbit/s
Number of DP slaves, max. 124
Address range inputs, max. 2 KB
Address range outputs, max. 2 KB
User data inputs per slave, max. 244 Byte
User data outputs per slave, max. 244 Byte

Functionality PROFIBUS slave

PG/OP channel

Routing
S7 communication
S7 communication as server
S7 communication as client -
Direct data exchange (slave-to-slave communication) -
DPV1
Transmission speed, min. 9.6 kbit/s
Transmission speed, max. 12 Mbit/s
Automatic detection of transmission speed -
Transfer memory inputs, max. 244 Byte
Transfer memory outputs, max. 244 Byte
Address areas, max. 32
User data per address area, max. 32 Byte

Point-to-point communication

PtP communication

Interface isolated
RS232 interface -
RS422 interface -
RS485 interface
Connector Sub-D, 9-pin, female
Transmission speed, min. 150 bit/s
Transmission speed, max. 115.5 kbit/s
Cable length, max. 500 m

Point-to-point protocol

ASCII protocol

STX/ETX protocol
3964(R) protocol
RK512 protocol -
USS master protocol
Modbus master protocol
Modbus slave protocol
Special protocols -

Functionality PROFINET I/O controller

Realtime Class

-

Conformance Class PROFINET IO
Number of  PN IO devices 128
IRT support -
Prioritized start-up -
Number of PN IO lines 1
Address range inputs, max. 2 KB
Address range outputs, max. 2 KB
Transmiting clock 1 ms
Update time 1 ms .. 512 ms

Functionality RJ45 interfaces

Type

X1

Type of interface Ethernet 10/100 MBit
Connector RJ45
Electrically isolated
PG/OP channel
Number of connections, max. 4
Productive connections -

Type X4
Type of interface Ethernet 10/100 MBit
Connector RJ45
Electrically isolated
PG/OP channel
Number of connections, max. 8
Productive connections

Ethernet communication CP

Number of productive connections, max.

8

Number of productive connections by Siemens NetPro, max. 8
S7 connections BSEND, BRCV, GET, PUT, Connection of active and passive data handling
User data per S7 connection, max. 32 KB
TCP-connections FETCH PASSIV, WRITE PASSIV, Connection of passive data handling
User data per TCP connection, max. 64 KB
ISO-connections -
User data per ISO connection, max. -
ISO on TCP connections (RFC 1006) FETCH PASSIV, WRITE PASSIV, Connection of passive data handling
User data per ISO on TCP connection, max. 32 KB
UDP-connections -
User data per UDP connection, max. -
UDP-multicast-connections -
UDP-broadcast-connections -

Ethernet open communication

Number of connections, max.

8

User data per ISO on TCP connection, max. 8 KB
User data per native TCP connection, max. 8 KB
User data per ad hoc TCP connection, max. 1460 Byte
User data per UDP connection, max. 1472 Byte

Housing

Material

PPE

Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD)

131.5 mm x 109 mm x 83 mm

Weight 310 g

Environmental conditions

Operating temperature

0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification

in preparation

Order no.Name/Description

013-CCF0R00

CPU 013C - SPEED7 technology␍
SPEED7 technology
16 x DI, 12 x DO, 2 x AI, from which are 4 input channels parameterizable
for counters and frequency measurement and 2 Output channels for PWM
64 kB work memory
Memory extension (max. 128 kB)
optionell PROFIBUS-DP slave / PtP (switchable)
 [Datasheet]
 [Manual]
 [STP]

014-CEF0R00

CPU 014 - SPEED7 technology
SPEED7 technology
64 kB work memory
Memory extension (max. 192 kB) via VIPASetCard
PROFIBUS slave/master activatable via VIPASetCard
Full-function RS485 interface integrated, switchable MPI/PtP
Ethernet PG/OP interface
 [Datasheet]
 [Manual]
 [STP]

014-CEF0R01

CPU 014 - SPEED7 technology
SPEED7 technology
128 kB work memory
Memory extension (max. 256 kB) via VIPASetCard
PROFIBUS slave/master activatable via VIPASetCard
Full-function RS485 interface integrated, switchable MPI/PtP
Ethernet PG/OP interface
 [Datasheet]
 [Manual]

015-CEFPR00

CPU 015 - SPEED7 technology
SPEED7 technology
256 kB work memory
Memory extension (max. 512 kB) via VIPASetCard
PROFIBUS slave/master activatable via VIPASetCard
Full-function RS485 interface integrated, switchable MPI/PtP
PROFINET controller for up to 128 participants integrated
Ethernet PG/OP interface
 [Datasheet]
 [Manual]
 [STP]

015-CEFPR01

CPU 015 - SPEED7 technology
SPEED7 technology
256 kB work memory
Memory extension (max. 512 kB) via VIPASetCard
PROFIBUS slave/master activatable via VIPASetCard
Full-function RS485 interface integrated, switchable MPI/PtP
PROFINET controller for up to 128 participants integrated
Ethernet PG/OP interface
 [Datasheet]
 [Manual]

015-CEFNR00



CPU 015N - SPEED7 technology
SPEED7 technology
256 kB work memory
Memory extension (max. 512 kB) via VIPASetCard
PROFIBUS slave/master activatable via VIPASetCard
Full-function RS485 interface integrated, switchable MPI/PtP
EtherCAT master for up to 128 participants integrated
Ethernet PG/OP interface
 [Datasheet]
 [Manual]
 [STP]

017-CEFPR00

CPU 015 - SPEED7 technology
SPEED7 technology
512 kB work memory
Memory extension (max. 2048 kB) via VIPASetCard
PROFIBUS slave/master activatable via VIPASetCard
Full-function RS485 interface integrated, switchable MPI/PtP
PROFINET controller for up to 128 participants integrated
Ethernet PG/OP interface

 [Datasheet]


 [Manual]


 [STP]

955-C000020



VIPASetCard 003 for SLIO CPU
+ 64 kByte
 [Datasheet]

955-C000030



VIPASetCard 006 for SLIO CPU
+ 128 kByte
 [Datasheet]

955-C000040



VIPASetCard 009 for SLIO CPU
+ 256 kByte
 [Datasheet]

955-C000M00



VIPASetCard 001 for SLIO CPU
+ PROFIBUS-Master
 [Datasheet]

955-C000M20



VIPASetCard 004 for SLIO CPU
+ 64 kByte + PROFIBUS-master
 [Datasheet]

955-C000M30



VIPASetCard 007 for SLIO CPU
+ 128 kByte + PROFIBUS-master
 [Datasheet]

955-C000M40



VIPASetCard 010 for SLIO CPU
+ 256 kByte + PROFIBUS-master
 [Datasheet]

955-C000S00



VIPASetCard 002 for SLIO CPU
+ PROFIBUS-slave
 [Datasheet]

955-C000S20



VIPASetCard 005 for SLIO CPU
+ 64 kByte + PROFIBUS-slave
 [Datasheet]

955-C000S30



VIPASetCard 008 for SLIO CPU
+ 128 kByte + PROFIBUS-slave
 [Datasheet]

955-C000S40



VIPASetCard 011 for SLIO CPU
+ 256 kByte + PROFIBUS-slave
 [Datasheet]

955-C000050







 VIPASetCard 012 for SLIO CPU
+ 512 kByte
 [Datasheet]

955-C000M50







 VIPASetCard 013 for SLIO CPU
+ 512 kByte + PROFIBUS-master
 [Datasheet]

955-C000060







 VIPASetCard 014 for SLIO CPU
+ 1 MByte
 [Datasheet]

955-C000M60







 VIPASetCard 015 for SLIO CPU
+ 1 MByte + PROFIBUS-master
 [Datasheet]

955-C000070







VIPASetCard 016 for SLIO CPU
+ 1,5 MByte
 [Datasheet]

955-C000M70







VIPASetCard 017 for SLIO CPU
+ 1,5 MByte + PROFIBUS-master

 [Datasheet]

955-0000000



VIPA SD-Card - empty
512 MB


Похожие товары

CPU 014, 64kB, Ethernet, MPI, PtP

Изделие: 014-CEF0R00
Встроенная рабочая память 64 кбайт (расширение до 192 кбайт), порт 1: Ethernet PG/OP, порт 2: MPI & PtP (RS-485, изолированный), порт 3: MPI (RS-485, изолированный), гнездо для карт памяти SD, программирование в WinPLC7, SPEED7 Studio, STEP7 и TIA Portal

Розничная цена: 157742
БЫСТРЫЙ ЗАКАЗ
CPU 013C, 64kB, Ethernet, MPI, PtP

Изделие: 013-CCF0R00
Встроенная рабочая память 64 кБРасширение объема рабочей памяти до 128 кБВстроенная периферия: 16 x DI, 12 x DO, 2 x AI (4 счетчика до 100 кГц, 2 x ШИМ до 20 кГц)2 порта Ethernet PG/OP (коммутатор) для программирования и обмена данными с панелью оператора или SCADA-cистемойУниверсальный последовательный порт RS-485: MPI, USS master, ASCII, ETX/STX, 3964R, Modbus master/slave, а также PROFIBUS slave (опционально с помощью карты VSC)Клеммные соединители с зажимом типа Push-InКарта SD объемом до 2 ГбайтПодключение до 64 модулей расширения SLIO всех типовПрограммирование с помощью WinPLC7, SPEED7 Studio, STEP7 и TIA Portal

Розничная цена: 207555
БЫСТРЫЙ ЗАКАЗ
CPU 015PN, 256kB, Ethernet, MPI, PtP, ProfiNET

Изделие: 015-CEFPR01
Встроенная рабочая память 256 кбайт (расширение до 512 кбайт), порт 1: Ethernet PG/OP (коммутатор), порт 2: MPI & PtP (RS-485, изолированный), порт 3: MPI (RS-485, изолированный), порт 4: PROFINET I/O (коммутатор), гнездо для карт памяти SD, программирование в SPEED7 Studio, SIMATIC Manager и TIA Portal

Розничная цена: 270438
БЫСТРЫЙ ЗАКАЗ
CPU 017PN, 512kB, Ethernet, MPI, PtP, PROFINET

Изделие: 017-CEFPR00
Модуль CPU 017PN: встроенная рабочая память 512 кбайт (расширение до 2 Мбайт), порт 1: Ethernet PG/OP (коммутатор), порт 2: MPI & PtP (RS-485, изолированный), порт 3: MPI (RS-485, изолированный), порт 4: PROFINET I/O (коммутатор), гнездо для карт памяти SD, программирование в SPEED7 Studio, SIMATIC Manager и TIA Portal

Розничная цена: 418398
БЫСТРЫЙ ЗАКАЗ

Наши услуги

36 реализованных проекта

Производители

PHH 600300589924
ИКК KZ87826A1KTD2014870
БИК ALMNKZKA AO "АТФ" Банка с Алматы
БИН 101040014805
Разработка сайта
ТОО «Control Link» | Республика Казахстан | г. Алматы | Ауэзовский район | ул. Толе Би | д. 302, Литер Д | офис № 205 Компания ТОО CONTROL LINK создана в 2010 г. как инжиниринговая компания с целью комплексных поставок и внедрения средств автоматизации технологических процессов (АСУ ТП), систем обеспечения связи, контроля и безопасности на объекте. Company Formation CONTROL LINK LLP was created in 2010 as an engineering company for the purpose of integrated supply and implementation of process automation (APCS) systems, communication, control and security at the facility.
РНН 600300589924 | ИИК KZ67826A1KZTD2014970 | БИК АLMNKZKA АО «АТФ Банк» | г.Алматы БИН 101040014805
Адрес:

г. Алматы, Ауэзовский район
ул. Толе Би 302, Литер "Д"
офис № 205

Телефон:

+7 (727) 268-0321
+7 (701) 082-9486
+7 (707) 493-7210

Факс:

+7 (727) 268-0321

Яндекс.Метрика
