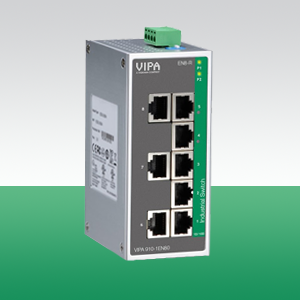

Industrial-Switch EN8-R

Изделие: 910-1EN80


Краткое описание:
Коммутатор Ethernet EN8-R, неуправляемый, 8 портов 10/100BaseTX (RJ45)
Производитель: VIPA
Вес: 0.28 кг.
Розничная цена: 52197
БЫСТРЫЙ ЗАКАЗ

Industrial-Switch EN8-R 910-1EN80

Коммутатор Ethernet EN8-R, неуправляемый, 8 портов 10/100BaseTX (RJ45)

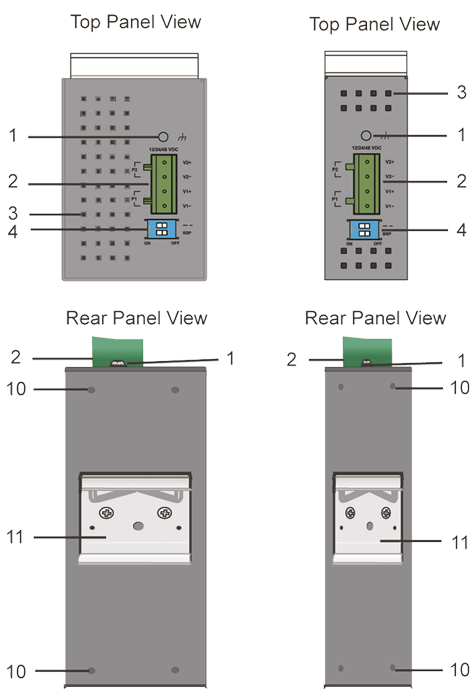

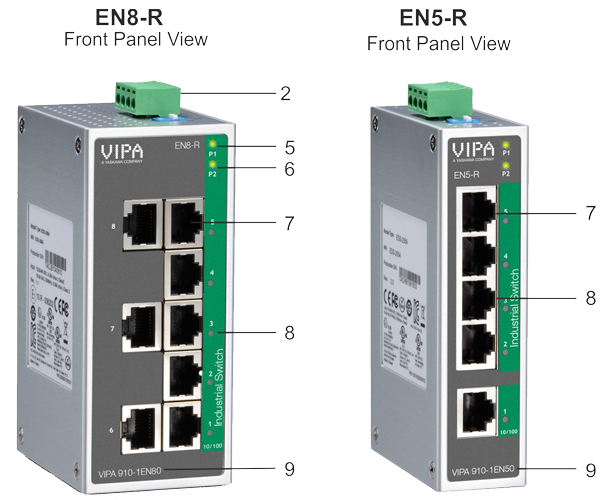

  1. Grounding screw
  2. Terminal block for power input P1/P2
  3. Heat dissipation orifices
  4. DIP switches
  5. Power input P1 LED
  6. Power input P2 LED
  7. 10/100BaseT(X) Port
  8. TP port’s 10/100 Mbps LED
  9. Model Name
  10. Screw hole for wall mounting kit
  11. DIN-Rail Kit



Order no.Name/Description

900-2C510

TM-C VPN Router WAN/LAN
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C520

TM-C VPN Router WIFI/WAN/LAN
WIFI interface for connection to a WIFI network
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C580

TM-C VPN Router 3G+/WAN/LAN
3G+ modem for external broadband communication
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)␍
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C610

TM-C Router
For teleservice through broadband connection via Talk2M
1x RS485 MPI-/PROFIBUS-DP interface
4x LAN RJ45 Ethernet interface
1x WAN RJ45 Ethernet interface
 [Datasheet]
 [Manual]

900-2H611

TM-H Router VPN
For teleservice through a broadband connection via Talk2M & VPN
1x RS485 MPI-/PROFIBUS-DP interface
4x LAN RJ45 Ethernet interface
1x WAN RJ45 Ethernet interface
 [Datasheet]
 [Manual]

900-2H682

TM-H Router VPN/HSPA/Ethernet/MPI  [Datasheet]
 [Manual]

900-0AB50

TM antenna GSM/UMTS

910-1EN50

Industrial-Switch EN5-R
5x RJ45 10/100BaseTX full / half Duplex␍
Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition
Redundant power supply for 12-45 VDC
IP30 aluminium housing for DIN rail mounting
 [Manual]

910-1EN80

Industrial-Switch EN8-R
8x RJ45 10/100BaseTX full / half Duplex␍
Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition
Redundant power supply for 12-45 VDC
IP30 aluminium housing for DIN rail mountin
 [Manual]
911-2PN50 Industrial-Switch PN5-RD␍
PROFINET v2 Conformance Class B
Profinet diagnosis via GSD integration
Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP
Port mirroring
PROFINET I/O parameters, I/O cyclic data, DCP, DHCP
Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍
 [Manual]
911-2PN80 Industrial-Switch PN8-RD
PROFINET v2 Conformance Class B
Profinet diagnosis via GSD integration
Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP
Port mirroring
PROFINET I/O parameters, I/O cyclic data, DCP, DHCP
Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍
 [Manual]
920-1BB10 Profibus-Repeater B1
Transparent for all PROFIBUS DP protocols ␍
1 segment and 31 deivces per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on the baud rate)␍
No Profibus address required
 [Manual]
920-1BD10 Profibus-Repeater D1 IP66
Screw terminal and DB9 plug connector
Integrated terminators (disconnectable)
Redundant power supply
 [Manual]
920-1CA50 MultiRepeaterA5
5 segmente and 31 divces per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on baud rate)␍
Integrated terminators (disconnectable)
 [Manual]
920-1CB20 Profibus-MultiRepeaterB2-R
2 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)
1200 m segment length (depending on baud rate)
Integrated terminators (disconnectable)
telegram check (integrity check)
Alarm contact and Redundant power supply
 [Manual]
920-1CB50 Profibus-MultiRepeaterB5-R
5 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on baud rate)␍
Integrated terminators (dis-connectable)
Alarm contact
Redundant power supply
 [Manual]
920-1DB50 Profibus-MultiRepeater B5-R
5 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)
1200 m segment length (depending on the baud rate)
Integrated terminators (disconnectable)
Alarm contact and Redundant power supply
 [Manual]
921-1EB50 Profibus-MultiRepeaterB5-R
Changes at the speed in the ongoing operation
Screw and DB9 terminal
Grounding option configurable
Integrated terminators
Redundant power supply
 [Manual]
924-1BB10 Profibus-TermT1
9,6 Kbps up to 12 Mbps
Removable screw terminals and 1 DB9 terminal
Power supply specifications
Redundancy: current 1 OR 2
Diagnostic LEDs
 [Manual]
