RF120C RFID

Изделие: 6GT2002-0LA00


Краткое описание:
Коммуникационный модуль RF120C RFID: подкл 1 счит, для SIMATIC S7-1200
Производитель: SIEMENS
Вес: 0.19 кг.
Цена по запросу.
БЫСТРЫЙ ЗАКАЗ

Коммуникационный модуль RF120C RFID: подкл 1 счит, для SIMATIC S7-1200

Order number

6GT2002-0LA00

Product type designation

RF120C communication module

Suitability for operation

SIMATIC S7-1200 together with RF200/300/600, MOBY D/U, MV

Transmission rate



Transfer rate at the point-to-point connection serial maximum

115.2 kbit/s

Interfaces



Design of the interface for point-to-point connection

RS422

Number of readers connectable

1

Type of electrical connection



  • ● of the backplane bus

S7-1200 backplane bus

  • ● for supply voltage

Screw terminals

Design of the interface to the reader for communication

D-sub, 9-pin, socket

Mechanical data



Material

Xantar MX 1094

Color

Ti-grey 24L01

Tightening torque of the screw for securing the equipment maximum

0.45 N·m

Supply voltage, current consumption, power loss



Supply voltage



  • ● for DC Rated value

24 V

  • ● for DC

20 ... 30 V

Consumed current for DC at 24 V



  • ● without connected devices typical

0.03 A

  • ● with connected devices maximum

1 A

Permitted ambient conditions



Ambient temperature



  • ● during operation

0 ... 55 °C

  • ● during storage

-40 ... +70 °C

  • ● during transport

-40 ... +70 °C

Protection class IP

IP20

Shock resistance

According to IEC 61131-2

Shock acceleration

300 m/s²

Resistance against vibration

100 m/s²

Design, dimensions and weight



Width

30 mm

Height

100 mm

Depth

75 mm

Net weight

0.15 kg

Mounting type

S7-1200 rack

Cable length for RS 422 interface maximum

1 000 m

Product properties, functions, components general



Display version

4 LEDs for reader connection, 1 LED for device status

Product function transponder file handler can be addressed

No

Protocol is supported



  • ● S7 communication

Yes

Type of parameterization

HSP

Type of programming

Library with functions

Type of computer-mediated communication

acyclic communication

Standards, specifications, approvals



Certificate of suitability

CE, FCC, cULus, KCC, C-Tick

MTBF

196 y

Программное обеспечение и документация по RFID RFID системы , RFID PC библиотеки, RFID инстр.
Терминальный кабель SIMATIC RF, MV в сборе, между RF120C и PUR, CMG длина 2 м
Терминальный кабель SIMATIC RF, MV в сборе, между RF120C и PUR, CMG длина 5 м
Терминальный кабель SIMATIC RF, MV в сборе, между RF120C и PUR, CMG длина 10 м
Интерфейсный кабель MOBY D в сборе между SM 456, RF160C, RF170C, RF18XC и SLG D1XS PUR, CMG , длина 2 м.
Интерфейсный кабель между считывателем SIMATIC RF, MV и модулем ASM 456, RF160C, RF170C, RF18X длина 2 м.
Интерфейсный кабель между считывателем SIMATIC RF, MV и модулем ASM 456,RF160C, RF170C, RF18X длина 5 м.
Интерфейсный кабель между считывателем SIMATIC RF, MV и модулем ASM 456, RF160C, RF170C, RF18X длина 10 м.
Интерфейсный кабель между считывателем SIMATIC RF, MV и модулем RF160C, RF170C, RF18X длина 20 м.
Интерфейсный кабель между считывателем SIMATIC RF, MV и модулем ASM 456, RF160C, RF170C, RF18X длина 50 м.
Интерфейсный кабель (М12) между считывателем SIMATIC RF, MV и модулем ASM 456, RF160C, RF170C, RF18X длина 2 м.
Интерфейсный кабель между считывателем SIMATIC RF, MV и модулем ASM 456, RF160C, RF170C, RF18X длина 5 м.
Соединительный провод (SIMATIC RF, MV) между считывателем и ASM 456, RF160C, RF170C, RF18XC, длина 10 м

Обзор

SIMATIC RF120C communications module

The SIMATIC RF120C is a communication module for connecting the SIMATIC identification systems directly to the SIMATIC S7-1200. The readers of all RFID systems as well as the MV400 code-reading systems can be operated on the SIMATIC RF120C.

Integration into the TIA Portal and the uniform plug-in connection systems permit fast and simple commissioning.



Особенности

  • Space savings thanks to the extremely compact design of the identification system connected directly to the controller
  • Due to the intuitive parameterization of the RF120C and the reader via the SIMATIC device configuration, the manual is mostly no longer required.
  • The Ident Library is integrated in the TIA Portal and offers Ident instructions (e.g. Read, Write) that are very easy to use and thus facilitate programming and commissioning without the need for documentation.
  • Reader connection using a sub-D connector on the RF120C for fast installation of all components
  • Powerful hardware ensures maximum data exchange speed with the reader so that data is made available to the application even faster.
  • Very easy downloading of functional expansion and error rectification firmware for RF120C and readers via the TIA Portal ensures high availability of the identification system


Область применения

The SIMATIC S7-1200 controller with the RF120C communication module has been developed for all simple control applications including identification tasks.

Due to its technical setup with IP 20 degree of protection, the S7-1200 is designed for use in the control cabinet.

Main applications for SIMATIC RF120C:

  • Mechanical engineering, automation systems, conveyor systems
  • Ancillary assembly lines in the automobile industry/suppliers
  • Small assembly lines


Дизайн

SIMATIC RF120C communication module



Функции

The SIMATIC RF120C communications module is positioned to the left of the S7-1200 CPU. It enables a maximum of three RF120Cs to be operated on one S7-1200 CPU.

The reader is powered from the RF120C. The RF120C is provided with voltage via a screw-type terminal connector which is included in the scope of delivery.

For programming in the controller, a library is available with simple instructions such as Read/Write for accessing the transponder data. These instructions can also be used for other identification communication modules that are connected to the S7-1200 via Profibus/Profinet, e.g. for ASM 456 and RF180C. Furthermore, the library blocks can also be used for the SIMATIC S7-1500 so that the identification communication modules can be operated there via Profibus/Profinet.

Error messages and operating states (transponder in the field, transmission, etc.) are indicated additionally by means of LEDs behind the top cover of the RF120C. This makes commissioning and servicing considerably easier.

The RF120C features a sub D socket for connecting the reader. This also supplies the reader with voltage. The power supply of the reader is equipped with an electronic fuse. The maximum permissible current for a reader is 1 A.

The reader is connected to the RF120C with a pre-assembled reader cable which is available in different lengths. This 6GT2091-4Lxxx type cable can easily be extended with a type 6GT2891-4Fxxx cable in order to cover greater distances between the reader and the controller.

Communication between the SIMATIC RF120C and the controller is acyclic. Consequently, a very large amount of data can be transferred to/from the RF120C without overloading the bus cycle. This has advantages when transferring large volumes of data.



Чертеж

SIMATIC RF120C communication module





Похожие товары

SIPLUS CM 1242-5

Изделие: 6AG1242-5DX30-2XE0
SIPLUS S7-1200, КООМУНИКАЦИОННЫЙ МОДУЛЬ CM 1242-5; РАБОЧИЙ ТЕМПЕРАТУРНЫЙ ДИАПАЗОН -25 ... +55°C, С КОНФОРМНЫМ ПОКРЫТИЕМ, НА БАЗЕ 6GK7242-5DX30-0XE0. КОММ. МОДУЛЬПОДКЛЮЧЕНИЯ S7-1200 К СЕТИ PROFIBUS DP В КАЧЕСТВЕ ВЕДОМОГО УСТРОЙСТВА

Цена по запросу.
БЫСТРЫЙ ЗАКАЗ
CP1242-7

Изделие: 6GK7242-7KX30-0XE0
Коммуникационный процессор CР 1242-7; для SIMATIC S7-1200 (GSM/GPRS)

Цена по запросу.
БЫСТРЫЙ ЗАКАЗ
CM1241, RS422/485

Изделие: 6ES7241-1CH32-0XB0
SIMATIC S7-1200, КОММУНИКАЦИОННЫЙ МОДУЛЬ CM 1241, RS422/485, 9-ПОЛЮСНЫЙ РАЗЪЁМ SUB D (ВИЛКА), СВОБОДНО-ПРОГРАММИРУЕМЫЙ ПОРТ С ПОДДЕРЖКОЙ ТЕЛЕГРАММ

Цена по запросу.
БЫСТРЫЙ ЗАКАЗ

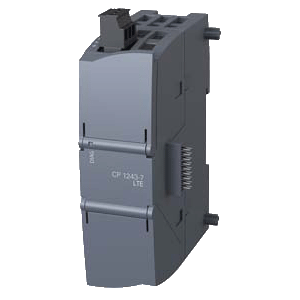

CP1243-7 LTE EU
