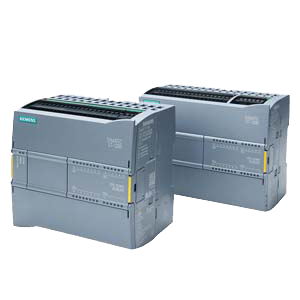

SIPLUS S7-1200 CPU 1214FC DC/DC/DC -25 ... +55 DEGREES C WITH CONFORMAL COATING BASED ON: 6ES7214-1AF40-0XB0 . COMPACT CPU, DC/DC/DC, ONBOARD I/O: 14 DI 24V DC; 10 DO 24 V DC; 2 AI 0- 10V DC, POWER SUPPLY: DC 20,4 - 28,8 V DC, PROGRAM/DATA MEMORY 125 KB
Спецификация в PDF | Скачать |
The fail-safe SIPLUS S7-1200 Controllers are based on the S7-1200 standard CPUs and offer additional safety-related functions.
They can be used for safety-oriented tasks according to IEC 61508 up to SIL 3 and ISO 13849-1 up to PL e.
Safety-related programs are created in the TIA Portal. The STEP 7 Safety engineering tool offers commands, operations and blocks for safety-related programs in the LAD and FBD languages. To this end, there is a library with pre-configured, TÜV-approved blocks for safety-related functions.
Characteristics |
SIPLUS CPU 1214 FC |
---|---|
Variants |
DC/DC/DC, DC/DC/relay |
Main memory, integrated |
125 KB |
Load memory, integrated |
4 MB |
Memory card |
SIMATIC memory card (optional) |
Standard digital inputs/outputs, integrated |
14/10 |
Standard analog inputs, integrated |
2 |
Standard analog outputs, integrated |
- |
Process image |
1024 bytes for inputs, 1024 bytes for outputs |
Expansion by signal board |
Max. 1 |
Expansion by signal modules |
Max. 8 |
Expansion by communication modules |
Max. 3 |
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the corresponding standard products. SIPLUS extreme-specific information was added.
SIMATIC S7-1200 is the ideal controller for local and distributed automation solutions with safety requirements in the central system.
Via the engineering, the fail-safe SIMATIC S7-1200 makes preassembled, tested and TÜV-certified blocks available for implementing all common safety functions, such as emergency stop or protective door monitoring with or without interlocking.
