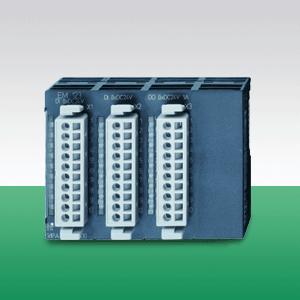

EM 123, 16DI, DC 24V, 8DO, DC 24V/0,5A

Изделие: 123-4EJ01


Краткое описание:
DI 16x24 В пост. тока, DO 8x24 В/0,5 А пост. тока
Производитель: VIPA
Вес: 0.23 кг.
Розничная цена: 95352
БЫСТРЫЙ ЗАКАЗ

EM 123 123-4EH01

Модуль дискретного ввода-вывода EM 123, DI 16x24 В пост. тока, DO 8x24 В/0,5 А пост. тока

Наименование
Модуль дискретных входов/выходов DI 16xDC 24 В / DO 8xDC 24 В, 1A
Тип
VIPA123-4EJ01
Габаритные размеры, В х Ш х Г, мм
101.6 mm x 76 mm x 48 mm
Температура окружающей среды
0 °C .. 60 °C
Серия
100V
Количество входов
16
Количество выходов
8
Тип входного сигнала
DC 24В, PNP
Тип выходного сигнала
DC 24В

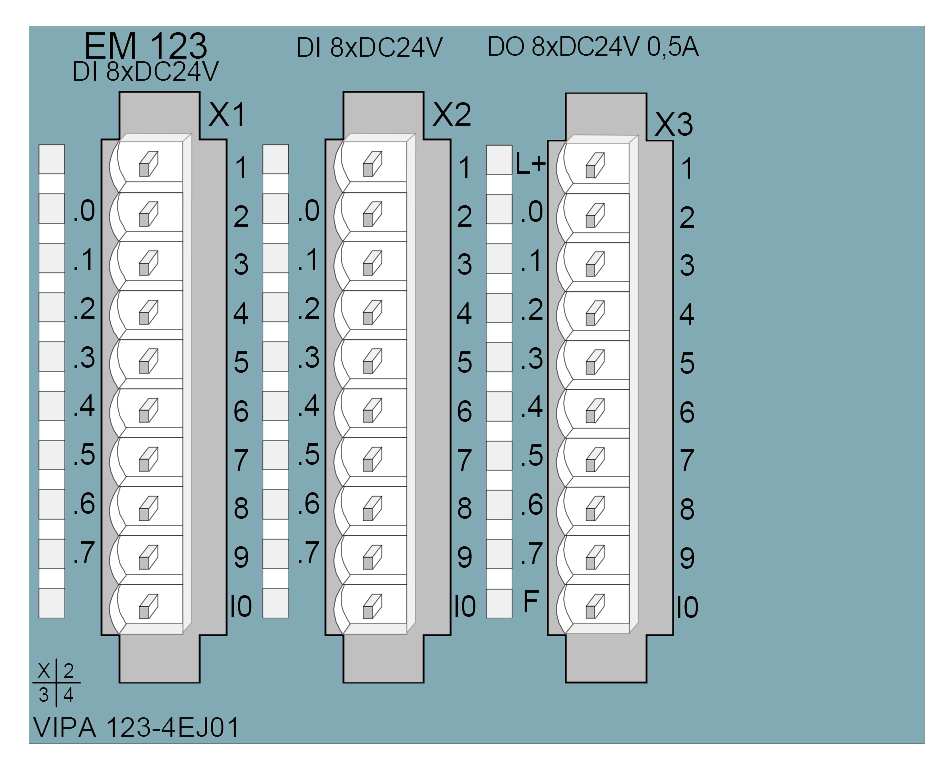

Structure





Position X1 Position X2 Position X3 Position X4
DI 8xDC 24V DI 8xDC 24V DO 8xDC 24V 0.5A

not used

Order no.

123-4EJ01

Type EM 123

General information

Note -
Features 16 inputs/ 8 outputs
DC 24 V

Current consumption/power loss

Current consumption from backplane bus 70 mA
Power loss 4.5 W

Technical data digital inputs

Number of inputs 16
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage -
Current consumption from load voltage L+ (without load) -
Rated value DC 24 V
Input voltage for signal "0" DC 0...5 V
Input voltage for signal "1" DC 15...28.8 V
Input voltage hysteresis -
Frequency range -
Input resistance -
Input current for signal "1" 7 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current 1.5 mA
Input delay of "0" to "1" 3 ms
Input delay of "1" to "0" 3 ms
Number of simultaneously utilizable inputs horizontal configuration 16
Number of simultaneously utilizable inputs vertical configuration 16
Input characteristic curve IEC 61131-2, type 1
Initial data size 2 Byte

Technical data digital outputs

Number of outputs 8
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage -
Current consumption from load voltage L+ (without load) 20 mA
Output current at signal "1", rated value 0.5 A
Output delay of "0" to "1" max. 100 µs
Output delay of "1" to "0" max. 350 µs
Minimum load current -
Lamp load 5 W
Parallel switching of outputs for redundant control of a load not possible
Parallel switching of outputs for increased power not possible
Actuation of digital input
Switching frequency with resistive load max. 1000 Hz
Switching frequency with inductive load max. 0.5 Hz
Switching frequency on lamp load max. 10 Hz
Internal limitation of inductive shut-off voltage L+ (-52 V)
Short-circuit protection of output yes, electronic
Trigger level 1 A
Number of operating cycle of relay outputs -
Switching capacity of contacts -
Output data size 1 Byte

Status information, alarms, diagnostics

Status display green LED per channel
Interrupts no
Process alarm no
Diagnostic interrupt no
Diagnostic functions no
Diagnostics information read-out none
Supply voltage display none
Group error display none
Channel error display none

Isolation

Between channels -
Between channels of groups to 8
Between channels and backplane bus
Insulation tested with DC 500 V

Datasizes

Input bytes 2
Output bytes 2
Parameter bytes 0
Diagnostic bytes 0

Housing

Material PPE / PA 6.6
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 101.6 mm x 76 mm x 48 mm
Weight 226 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes
Order no.Name/Description

123-4EH01

EM 123 - Expansion module, digital
8 inputs/ 8 outputs
DC 24 V
 [Datasheet]
 [Manual]

123-4EJ01

EM 123 - Expansion module, digital
16 inputs/ 8 outputs
DC 24 V
 [Datasheet]
 [Manual]

123-4EJ11

EM 123 - Expansion module, digital
16 inputs
8 relay outputs
 [Datasheet]
 [Manual]

123-4EJ20

EM 123 - Expansion module, digital
16 inputs
AC/DC 60...230 V
8 relay outputs
 [Datasheet]
 [Manual]

123-4EL01

EM 123 - Expansion module, digital
16 inputs/ 16 outputs
Isolated
 [Datasheet]
 [Manual]
