Интерфейсный модуль IM 061 для расширения внутренней шины SLIO-Bus, ведомое устройство
|
Наименование
|
IM 061 - Line Extension Slave module |
|
Тип
|
061-1BA00 |
|
Габаритные размеры, В х Ш х Г, мм
|
48.5 mm x 109 mm x 76.5 mm |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Тип интерфейса (электрический)
|
RJ45 |
 |
|

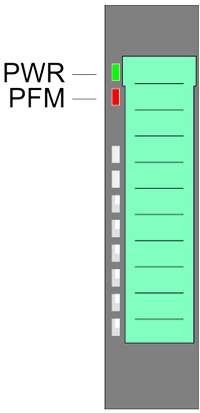

Status indication
 |
PWR |
PF M | Description |
| green | red |
|
|
| ● | ○ | Power section supply line extension is OK | |
| ● | ● |
Power section supply line extension is defective |
|
| on: ● | off: ○ | |||
 |
PWR IO |
PWR | PF | Description |
| green | green | red |
|
|
| ● | X | ○ | Power section supply OK | |
| ● | ● | ○ |
Electronic section supply OK |
|
| X | X | ● |
Fuse electronic section supply defective |
|
| on: ● | off: ○ | not relevant: X | ||||
Interfaces
| PM | RJ45 | |
 |
 |

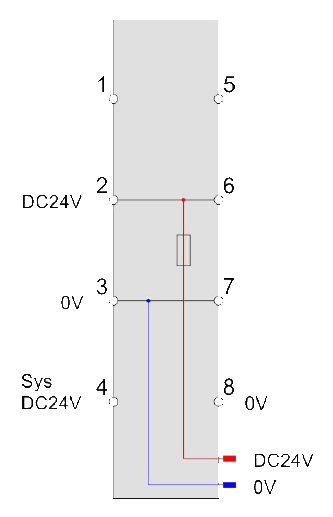

Pin assignment
| PM - Power module | Pos. | Function |
Type |
Description |
 |
1 | --- | --- | not connected |
| 2 | DC 24V | I |
DC 24V for power section supply |
|
| 3 | 0V | I |
GND for power section supply |
|
| 4 | Sys DC 24V | I | DC 24V for electronic section supply | |
| 5 | --- | --- | not connected | |
| 6 | DC 24V | I |
DC 24V for power section supply |
|
| 7 | 0V | I |
GND for power section supply |
|
| 8 | Sys 0V | I | GND for electronic section supply |
I Input
Order no. |
061-1BA00 |
| Type | IM 061, Line extension slave |
| Module ID | - |
General information |
|
| Note | - |
| Features | SLIO IM 061 bus extension Slave module for extending SLIO bus up to 8 additional lines (up to 64 modules) Connector: 1x RJ45 plug connector Module width 25.8 mm Connection: CAT6 cable, maximum length: 2m Module is always installed at the first place in the line; ␍Module IM 060 and IM 061 always form a pair |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection |  |
| Current consumption (no-load operation) | 10 mA |
| Current consumption (rated value) | 0.95 A |
| Inrush current | 3.9 A |
| I²t | 0.14 A²s |
| Max. current drain at backplane bus | 2 A |
| Max. current drain load supply | 10 A |
| Power loss | 1.4 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | no |
| Diagnostics information read-out | none |
| Supply voltage display | yes |
| Service Indicator | none |
| Group error display | yes |
| Channel error display | none |
Hardware configuration |
|
| Racks, max. | 4 |
| Modules per rack, max. | total max. 64 minus number line extensions |
| Number of digital modules, max. | - |
| Number of analog modules, max. | - |
Communication |
|
| Fieldbus | SLIO |
| Type of interface | - |
| Connector | RJ45 |
| Topology | - |
| Electrically isolated | - |
| Number of participants, max. | - |
| Node addresses | - |
| Transmission speed, min. | - |
| Transmission speed, max. | - |
| Address range inputs, max. | - |
| Address range outputs, max. | - |
| Number of TxPDOs, max. | - |
| Number of RxPDOs, max. | - |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 48.5 mm x 109 mm x 76.5 mm |
| Weight | 150 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | in preparation |
| KC certification | in preparation |
| Order no. | Name/Description | |
|---|---|---|
|
053-1CA00 |
IM 053CAN - CANopen slave CANopen slave 16 Rx and 16 Tx PDOs 2 SDOs PDO linking PDO mapping: fix up to 64 peripheral modules |
 [Datasheet] [Manual] [STP] |
|
053-1DN00 |
IM 053DN - DeviceNet slave DeviceNet slave Group 2 only device Poll only device Baud rate: 125, 250 and 500kbit/s up to 64 peripheral modules |
[Datasheet] [Manual] [STP] |
|
053-1DP00 |
IM 053DP - PROFIBUS-DP slave PROFIBUS-DP slave (DP-V0, DP-V1) 244 Byte input and 244 Byte output data up to 64 peripheral modules |
[Datasheet] [Manual] [STP] |
|
053-1EC00 |
IM 053EC - EtherCAT slave EtherCAT slave RJ45 jack 100BaseTX up to 64 peripheral modules |
[Datasheet] [Manual] [STP] |
|
053-1IP00 |
IM 053IP - EtherNet/IP slave EtherNet/IP-Slave I/O configuration via fieldbus up to 64 peripheral modules |
[Datasheet] [Manual] [STP] |
|
053-1MT00 |
IM 053MT - Modbus/TCP slave Modbus/TCP slave I/O configuration via fieldbus up to 64 peripheral modules |
[Datasheet] [Manual] [STP] |
|
053-1PN00 |
IM 053PN - PROFINET-IO slave PROFINET-IO slave Transfer rate 100Mbit/s up to 64 peripheral modules |
[Datasheet] [Manual] [STP] |
|
060-1AA00 |
IM060 Line Extension SLIO IM060 bus extension Master module for extension / renewal of the SLIO bus to another line Connector: 1x RJ45 plug connector Module width 25.8 mm Connection: CAT6 cable, maximum length: 2m Module is always installed at the last place in the line, module IM060 and IM061 always form a pair |
[Datasheet] [Manual] |
|
061-1BA00 |
IM061 Line Extension SLIO IM 061 bus extension Slave module for extending SLIO bus up to 8 additional lines (up to 64 modules) Connector: 1x RJ45 plug connector Module width 25.8 mm Connection: CAT6 cable, maximum length: 2m Module is always installed at the first place in the line; ␍Module IM 060 and IM 061 always form a pair |
[Datasheet] [Manual] |
