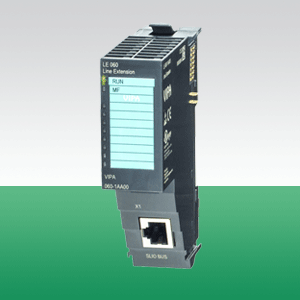

IM 060 - Line Extension Master module

Изделие: 060-1AA00


Краткое описание:
Для расширения внутренней шины SLIO-Bus, ведущее устройство
Производитель: VIPA
Вес: 0.06 кг.
Розничная цена: 42333
БЫСТРЫЙ ЗАКАЗ

IM 060 060-1AA00

Интерфейсный модуль IM 060 для расширения внутренней шины SLIO-Bus, ведущее устройство

Наименование
IM 060 - Line Extension Master module
Тип
060-1AA00
Габаритные размеры, В х Ш х Г, мм
25.8 mm x 109 mm x 76.5 mm
Температура окружающей среды
0 °C .. 60 °C
Тип интерфейса (электрический)
RJ45

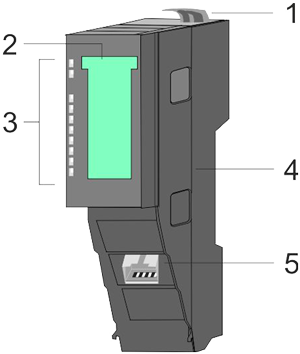

  1. Locking lever
  2. Labeling strip line extension
  3. LED status indication line extension
  4. Bus cover
  5. X1: Line extension master





Status indication

RUN MF Description
green red



 Bus communication is OK
 Module status is OK

 Bus communication is OK
 Module status reports an error

 Bus communication is not possible
 Module status reports an error

     Error at bus power supply
 X  Error in configuration
 on: ● | off: ○ | blinking (2Hz): | not relevant: X





Interfaces

X1: Line extension     Description




  • The connection of a line extension slave happens via this interface.
  • For connection only the connection cable 950-0KD30 from VIPA may be used.




Order no.

060-1AA00

Type IM 060, Line extension master
Module ID 8080 8080

General information

Note -
Features SLIO IM060 bus extension
Master module for extension / renewal of the SLIO bus to another line
Connector: 1x RJ45 plug connector
Module width 25.8 mm
Connection: CAT6 cable, maximum length: 2m
Module is always installed at the last place in the line, module IM060 and IM061 always form a pair

Technical data power supply

Power supply (rated value) DC 5 V
Power supply (permitted range) -
Reverse polarity protection -
Current consumption (no-load operation) 50 mA
Current consumption (rated value) -
Inrush current -
I²t -
Max. current drain at backplane bus -
Max. current drain load supply -
Power loss 0.25 W

Status information, alarms, diagnostics

Status display yes
Interrupts no
Process alarm no
Diagnostic interrupt no
Diagnostic functions no
Diagnostics information read-out none
Supply voltage display yes
Service Indicator none
Group error display yes
Channel error display none

Hardware configuration

Racks, max. 4
Modules per rack, max. total max. 64 minus number line extensions
Number of digital modules, max. -
Number of analog modules, max. -

Communication

Fieldbus SLIO
Type of interface -
Connector RJ45
Topology -
Electrically isolated -
Number of participants, max. -
Node addresses -
Transmission speed, min. -
Transmission speed, max. -
Address range inputs, max. -
Address range outputs, max. -
Number of TxPDOs, max. -
Number of RxPDOs, max. -

Housing

Material PPE / PPE GF10
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 25.8 mm x 109 mm x 76.5 mm
Weight 55 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL certification in preparation
KC certification in preparation
Order no.Name/Description

053-1CA00

IM 053CAN - CANopen slave
CANopen slave
16 Rx and 16 Tx PDOs
2 SDOs
PDO linking
PDO mapping: fix
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1DN00

IM 053DN - DeviceNet slave
DeviceNet slave
Group 2 only device
Poll only device
Baud rate: 125, 250 and 500kbit/s
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1DP00

IM 053DP - PROFIBUS-DP slave
PROFIBUS-DP slave (DP-V0, DP-V1)
244 Byte input and 244 Byte output data
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1EC00

IM 053EC - EtherCAT slave
EtherCAT slave
RJ45 jack 100BaseTX
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1IP00

IM 053IP - EtherNet/IP slave
EtherNet/IP-Slave
I/O configuration via fieldbus
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1MT00

IM 053MT - Modbus/TCP slave
Modbus/TCP slave
I/O configuration via fieldbus
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1PN00

IM 053PN - PROFINET-IO slave
PROFINET-IO slave
Transfer rate 100Mbit/s
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

060-1AA00

IM060 Line Extension
SLIO IM060 bus extension
Master module for extension / renewal of the SLIO bus to another line
Connector: 1x RJ45 plug connector
Module width 25.8 mm
Connection: CAT6 cable, maximum length: 2m
Module is always installed at the last place in the line, module IM060 and IM061 always form a pair
 [Datasheet]
 [Manual]

061-1BA00

IM061 Line Extension
SLIO IM 061 bus extension
Slave module for extending SLIO bus up to 8 additional lines (up to 64 modules)
Connector: 1x RJ45 plug connector
Module width 25.8 mm
Connection: CAT6 cable, maximum length: 2m
Module is always installed at the first place in the line; ␍Module IM 060 and IM 061 always form a pair
 [Datasheet]
 [Manual]

Похожие товары

IM 053PN, ProfiNet-IO

Изделие: 053-1PN00
Ведомое устройство сети PROFINET-IO

Розничная цена: 85899
БЫСТРЫЙ ЗАКАЗ
IM 053CAN, CANopen

Изделие: 053-1CA00
Ведомое устройство сети CANopen

Розничная цена: 57129
БЫСТРЫЙ ЗАКАЗ
IM 053EC, EtherCAT

Изделие: 053-1EC00
Ведомое устройство сети EtherCAT

Розничная цена: 48498
БЫСТРЫЙ ЗАКАЗ
IM 061 - Line Extension Slave module

Изделие: 061-1BA00
Интерфейсный модуль IM 061 для расширения внутренней шины SLIO-Bus, ведомое устройство

Розничная цена: 68226
БЫСТРЫЙ ЗАКАЗ
