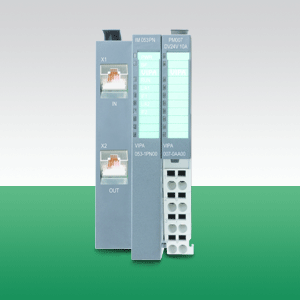

Интерфейсный модуль IM 053PN, ведомое устройство сети PROFINET-IO
|
Наименование
|
Модуль интерфейсный IM053PN - PROFINET-IO Slave |
|
Тип
|
053-1PN00 |
|
Габаритные размеры, В х Ш х Г, мм
|
48.5 mm x 109 mm x 76.5 mm |
|
Опции
|
Profinet IO |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Тип интерфейса (электрический)
|
RJ45 |
 |
|
Status indication
 |

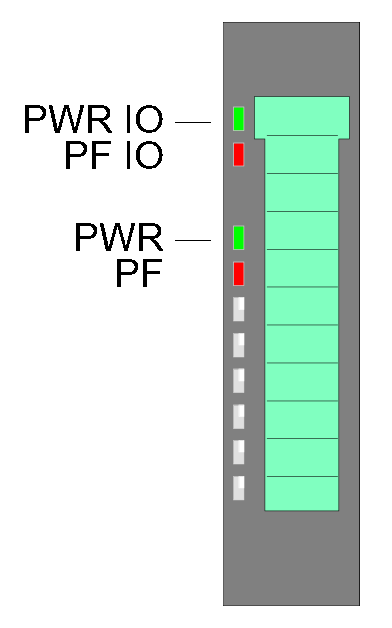

LED |
COLOR |
Description | |
| PWR | green | ● |
Bus interface is power supplied |
|
| SF | red | ● |
System error: Error at PROFINET or System SLIO bus |
|
| BF | red | ● |
Bus error: Error in PROFINET communication |
|
| MT | yellow | ● |
Maintenance PROFINET |
|
| LNK1/2 | green | ● |
Link: Physical link to Ethernet |
|
| ACT1/2 | green | ● |
Activity: Communication via Ethernet |
|
|
on: ● |
||||
 |
LED |
COLOR |
Description | |
| PWR IO | green | ● |
Power section supply OK |
|
| PF IO * | red | ● |
Fuse power section supply defective (Power fail) |
|
| PWR | green | ● |
Electronic section supply OK |
|
| PF | red | ● |
Fuse electronic section supply defective |
|
|
on: ● |
||||
|
*) This LED is only available on the power module with hardware release 1. |
||||

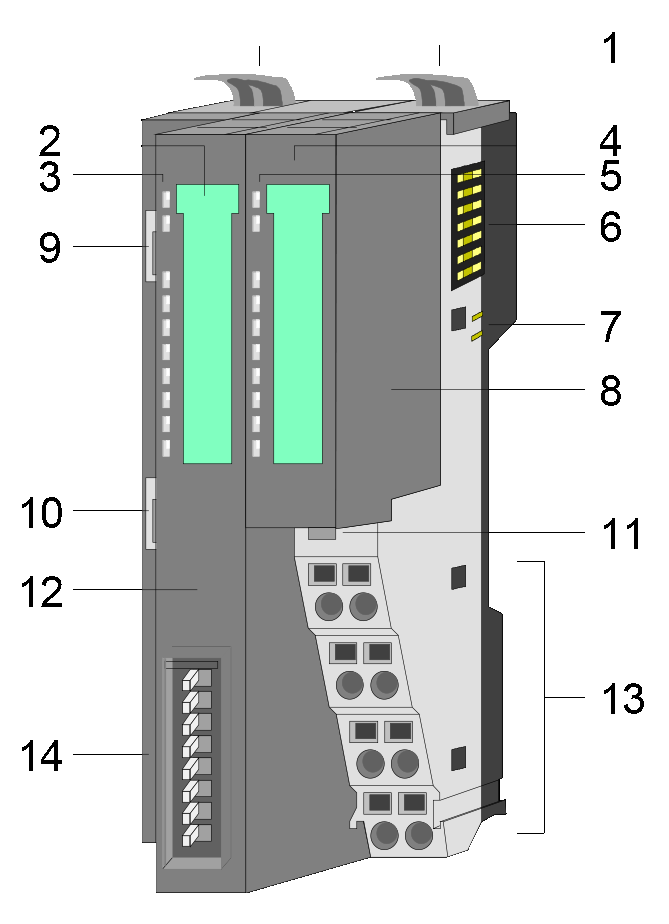

Interfaces
| PM | x1, x2 PROFINET RJ45 |
Description | ||
 |
 |
|
Pin assignment
| PM - Power module | Pos. | Function |
Type |
Description |
 |
1 | --- | --- | not connected |
| 2 | DC 24V | I |
DC 24V for power section supply |
|
| 3 | 0V | I |
GND for power section supply |
|
| 4 | Sys DC 24V | I | DC 24V for electronic section supply | |
| 5 | --- | --- | not connected | |
| 6 | DC 24V | I |
DC 24V for power section supply |
|
| 7 | 0V | I |
GND for power section supply |
|
| 8 | Sys 0V | I | GND for electronic section supply |
I Input
| Address switch | Pos. |
Description |
|
 |
|||
| 1 |
is not used |
||
| 2 | 20 = 1 |
PROFINET name:
|
|
| 3 | 21 = 2 | ||
| 4 | 22 = 4 | ||
| 5 | 23 = 8 | ||
| 6 | 24 = 16 | ||
| 7 | 25 = 32 | ||
| 8 | 26 = 64 | ||
Order no. |
053-1PN00 |
| Type | IM 053PN |
| Module ID | - |
General information |
|
| Note | - |
| Features | PROFINET-IO slave Transfer rate 100Mbit/s up to 64 peripheral modules |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection |  |
| Current consumption (no-load operation) | 95 mA |
| Current consumption (rated value) | 0.95 A |
| Inrush current | 3.9 A |
| I²t | 0.14 A²s |
| Max. current drain at backplane bus | 3 A |
| Max. current drain load supply | 10 A |
| Power loss | 3 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | yes, parameterizable |
| Process alarm | yes, parameterizable |
| Diagnostic interrupt | yes, parameterizable |
| Diagnostic functions | yes, parameterizable |
| Diagnostics information read-out | possible |
| Supply voltage display | green LED |
| Service Indicator | yellow LED |
| Group error display | red SF LED |
| Channel error display | none |
Hardware configuration |
|
| Racks, max. | 1 |
| Modules per rack, max. | 64 |
| Number of digital modules, max. | 64 |
| Number of analog modules, max. | 64 |
Communication |
|
| Fieldbus | PROFINET-IO |
| Type of interface | Ethernet 100 MBit |
| Connector | 2 x RJ45 |
| Topology | - |
| Electrically isolated | |
| Number of participants, max. | - |
| Node addresses | - |
| Transmission speed, min. | 100 Mbit/s |
| Transmission speed, max. | 100 Mbit/s |
| Address range inputs, max. | 512 Byte |
| Address range outputs, max. | 512 Byte |
| Number of TxPDOs, max. | - |
| Number of RxPDOs, max. | - |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 48.5 mm x 109 mm x 76.5 mm |
| Weight | 155 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
