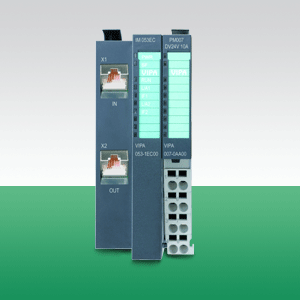

IM 053EC, EtherCAT

Изделие: 053-1EC00


Краткое описание:
Ведомое устройство сети EtherCAT
Производитель: VIPA
Вес: 0.16 кг.
Розничная цена: 48498
БЫСТРЫЙ ЗАКАЗ

IM 053 053-1EC00

Интерфейсный модуль IM 053EC, ведомое устройство сети EtherCAT

Наименование
Модуль интерфейсный IM053EC - EtherCAT Slave
Тип
053-1EC00
Габаритные размеры, В х Ш х Г, мм
48.5 mm x 109 mm x 76.5 mm
Опции
EtherCAT slave
Температура окружающей среды
0 °C .. 60 °C
Тип интерфейса (электрический)
RJ45




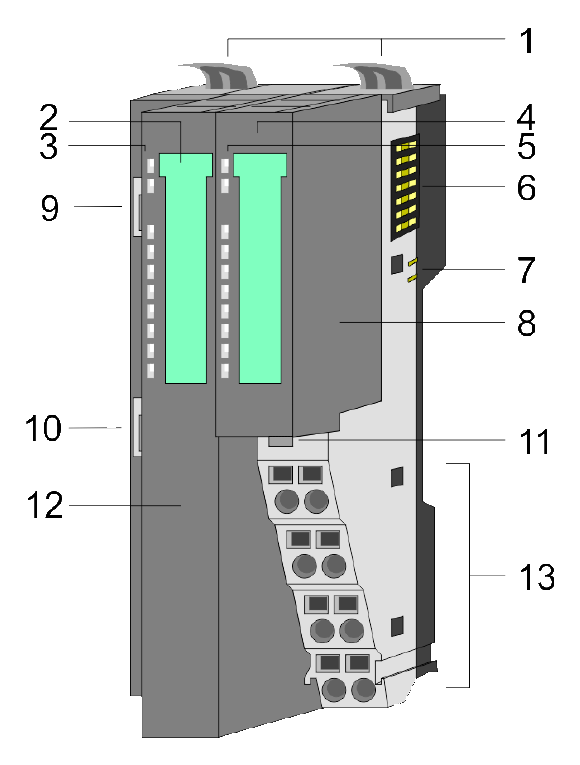

  1. Locking lever terminal module
  2. Labeling strip bus interface
  3. LED status indication bus interface
  4. Labelling strip power module
  5. LED status indication power module
  6. Backplane bus
  7. DC 24V power section supply
  8. Power module
  9. EtherCAT RJ45 bus interface "IN"
  10. EtherCAT RJ45 bus interface “OUT"
  11. Unlocking lever power module
  12. Bus interface
  13. Terminal power module





Status indication

PWR IO

PWR PF Description
green green red



X  Power section supply OK

 Electronic section supply OK

X X

 Fuse electronic section supply defective

 on: ● | off: ○ | not relevant: X

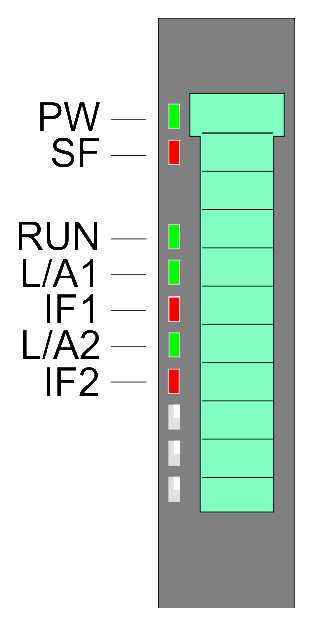

LED

COLOR

Description
PWR green

 Bus interface is power supplied

SF red BB
  • 1 flash per s: With state change due to an error e.g. a module is removed
  • 2 flashes per s: EtherCAT-Timeout (watchdog) e.g. EtherCAT master is missing
  • Blinking with 2Hz: Error in configuration
RUN green

 Bus coupler in state Init

 Bus coupler in state Operational
BB
  • Blinking with 2Hz: Bus coupler in state Pre-Operational
  • 1 flash per s: Bus coupler in state Safe-Operational
L/A1 green

 No communication to the preceding station

 Preceding EtherCAT station is connected

IF1 red

 Internal error during communication with the preceding station

L/A2 green  No communication to the succeeding station
 Succeeding EtherCAT station is connected
IF2 red

 Internal error during communication with the succeeding station

on: ● | off: ○ | blinking (2Hz): BB | blinking (10Hz): BBB | not relevant: X





Interfaces

PM    2xRJ45 EtherCAT     Description




  1. Transmit +
  2. Transmit -
  3. Receive +
  4. -
  5. -
  6. Receive -
  7. -
  8. -







Pin assignment

PM - Power module  Pos.  Function

 Type

Description
1  --- ---  not connected
2  DC 24V I

 DC 24V for power section supply

3  0V I

 GND for power section supply

4  Sys DC 24V I  DC 24V for electronic section supply
5  --- ---  not connected
6  DC 24V I

 DC 24V for power section supply

7  0V I

 GND for power section supply

8  Sys 0V I  GND for electronic section supply



 I Input



Order no.

053-1EC00

Type IM 053EC
Module ID -

General information

Note -
Features EtherCAT slave
RJ45 jack 100BaseTX
up to 64 peripheral modules

Technical data power supply

Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) 95 mA
Current consumption (rated value) 0.95 A
Inrush current 3.9 A
I²t 0.14 A²s
Max. current drain at backplane bus 3 A
Max. current drain load supply 10 A
Power loss 3 W

Status information, alarms, diagnostics

Status display yes
Interrupts yes, parameterizable
Process alarm yes, parameterizable
Diagnostic interrupt yes, parameterizable
Diagnostic functions yes, parameterizable
Diagnostics information read-out possible
Supply voltage display green LED
Service Indicator -
Group error display red SF LED
Channel error display none

Hardware configuration

Racks, max. 1
Modules per rack, max. 64
Number of digital modules, max. 64
Number of analog modules, max. 64

Communication

Fieldbus EtherCAT
Type of interface Ethernet 100 MBit
Connector 2 x RJ45
Topology -
Electrically isolated
Number of participants, max. 65535
Node addresses -
Transmission speed, min. 100 Mbit/s
Transmission speed, max. 100 Mbit/s
Address range inputs, max. 512 Byte
Address range outputs, max. 512 Byte
Number of TxPDOs, max. -
Number of RxPDOs, max. -

Housing

Material PPE / PPE GF10
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 48.5 mm x 109 mm x 76.5 mm
Weight 155 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes
Order no.Name/Description

053-1CA00

IM 053CAN - CANopen slave
CANopen slave
16 Rx and 16 Tx PDOs
2 SDOs
PDO linking
PDO mapping: fix
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1DN00

IM 053DN - DeviceNet slave
DeviceNet slave
Group 2 only device
Poll only device
Baud rate: 125, 250 and 500kbit/s
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1DP00

IM 053DP - PROFIBUS-DP slave
PROFIBUS-DP slave (DP-V0, DP-V1)
244 Byte input and 244 Byte output data
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1EC00

IM 053EC - EtherCAT slave
EtherCAT slave
RJ45 jack 100BaseTX
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1IP00

IM 053IP - EtherNet/IP slave
EtherNet/IP-Slave
I/O configuration via fieldbus
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1MT00

IM 053MT - Modbus/TCP slave
Modbus/TCP slave
I/O configuration via fieldbus
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1PN00

IM 053PN - PROFINET-IO slave
PROFINET-IO slave
Transfer rate 100Mbit/s
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

060-1AA00

IM060 Line Extension
SLIO IM060 bus extension
Master module for extension / renewal of the SLIO bus to another line
Connector: 1x RJ45 plug connector
Module width 25.8 mm
Connection: CAT6 cable, maximum length: 2m
Module is always installed at the last place in the line, module IM060 and IM061 always form a pair
 [Datasheet]
 [Manual]

061-1BA00

IM061 Line Extension
SLIO IM 061 bus extension
Slave module for extending SLIO bus up to 8 additional lines (up to 64 modules)
Connector: 1x RJ45 plug connector
Module width 25.8 mm
Connection: CAT6 cable, maximum length: 2m
Module is always installed at the first place in the line; ␍Module IM 060 and IM 061 always form a pair
 [Datasheet]
 [Manual]
