Интерфейсный модуль IM 053CAN, ведомое устройство сети CANopen
|
Наименование
|
Модуль интерфейсный IM 053CAN - CANopen Slave |
|
Тип
|
053-1CA00 |
|
Габаритные размеры, В х Ш х Г, мм
|
48.5 mm x 109 mm x 76.5 mm |
|
Опции
|
CANopen slave |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Тип интерфейса (электрический)
|
RS232 |
 |
|
Status indication
 |
PWR IO |
PWR | PF | Description |
| green | green | red |
|
|
| ● | X | ○ | Power section supply OK | |
| ● | ● | ○ |
Electronic section supply OK |
|
| X | X | ● |
Fuse electronic section supply defective |
|
| on: ● | off: ○ | not relevant: X | ||||
 |

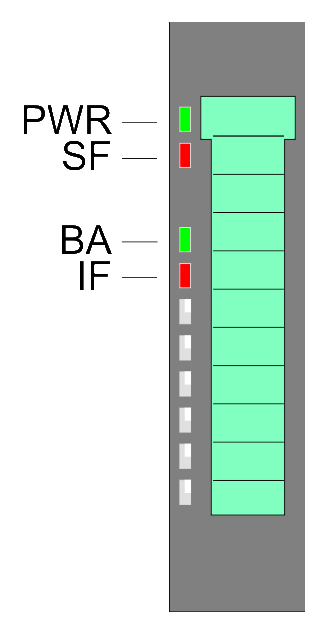

LED |
COLOR |
Description | |
| PWR | green | ● |
Bus interface is power supplied |
|
| SF | red | ● |
Station fault, structure is not corresponding to the configuration |
|
| BA | green | ● |
Operation mode: operational (ready for data exchange) |
|
| BB | Operation mode: pre-operational | |||
| BBB | Operation mode: prepared | |||
| IF | red | ● |
Internal error occurred |
|
|
on: ● | off: ○ | blinking (2Hz): BB | blinking (10Hz): BBB | not relevant: X |
||||
Interfaces
| PM | CAN | Description | ||
 |
 |
|
Pin assignment
| PM - Power module | Pos. | Function |
Type |
Description |
 |
1 | --- | --- | not connected |
| 2 | DC 24V | I |
DC 24V for power section supply |
|
| 3 | 0V | I |
GND for power section supply |
|
| 4 | Sys DC 24V | I | DC 24V for electronic section supply | |
| 5 | --- | --- | not connected | |
| 6 | DC 24V | I |
DC 24V for power section supply |
|
| 7 | 0V | I |
GND for power section supply |
|
| 8 | Sys 0V | I | GND for electronic section supply |
I Input

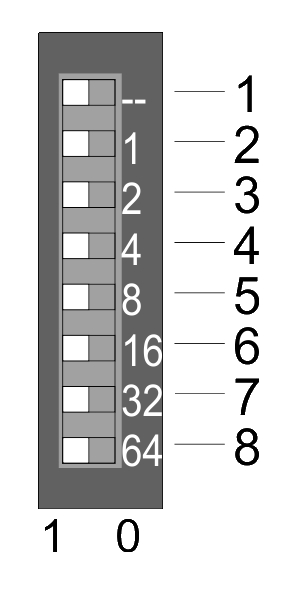

| Address selector | Pos. | Value |
Example |
|
|
State |
Address | |||
 |
||||
| 1 | not used | --- |
1+2+32=35
|
|
| 2 | 1 | 1 | ||
| 3 | 2 | 1 | ||
| 4 | 4 | 0 | ||
| 5 | 8 | 0 | ||
| 6 | 16 | 0 | ||
| 7 | 32 | 1 | ||
| 8 | 64 | 0 | ||
Order no. |
053-1CA00 |
| Type | IM 053CAN |
| Module ID | - |
General information |
|
| Note | - |
| Features | CANopen slave 16 Rx and 16 Tx PDOs 2 SDOs PDO linking PDO mapping: fix up to 64 peripheral modules |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection |  |
| Current consumption (no-load operation) | 90 mA |
| Current consumption (rated value) | 0.95 A |
| Inrush current | 3.9 A |
| I²t | 0.14 A²s |
| Max. current drain at backplane bus | 3 A |
| Max. current drain load supply | 10 A |
| Power loss | 3 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | yes, parameterizable |
| Process alarm | no |
| Diagnostic interrupt | yes, parameterizable |
| Diagnostic functions | yes, parameterizable |
| Diagnostics information read-out | possible |
| Supply voltage display | green LED |
| Service Indicator | - |
| Group error display | red LED |
| Channel error display | none |
Hardware configuration |
|
| Racks, max. | 1 |
| Modules per rack, max. | 64 |
| Number of digital modules, max. | 64 |
| Number of analog modules, max. | 64 |
Communication |
|
| Fieldbus | CANopen |
| Type of interface | CAN |
| Connector | Sub-D, 9-pin, male |
| Topology | Linear bus with bus termination at both ends |
| Electrically isolated | |
| Number of participants, max. | 127 |
| Node addresses | 1 - 127 |
| Transmission speed, min. | 10 kbit/s |
| Transmission speed, max. | 1 Mbit/s |
| Address range inputs, max. | 128 Byte |
| Address range outputs, max. | 128 Byte |
| Number of TxPDOs, max. | 16 |
| Number of RxPDOs, max. | 16 |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 48.5 mm x 109 mm x 76.5 mm |
| Weight | 155 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
| Order no. | Name/Description | |
|---|---|---|
|
053-1CA00 |
IM 053CAN - CANopen slave CANopen slave 16 Rx and 16 Tx PDOs 2 SDOs PDO linking PDO mapping: fix up to 64 peripheral modules |
