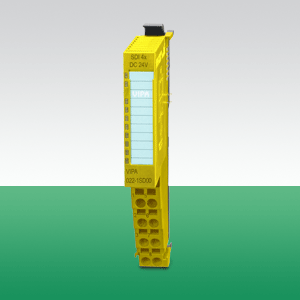

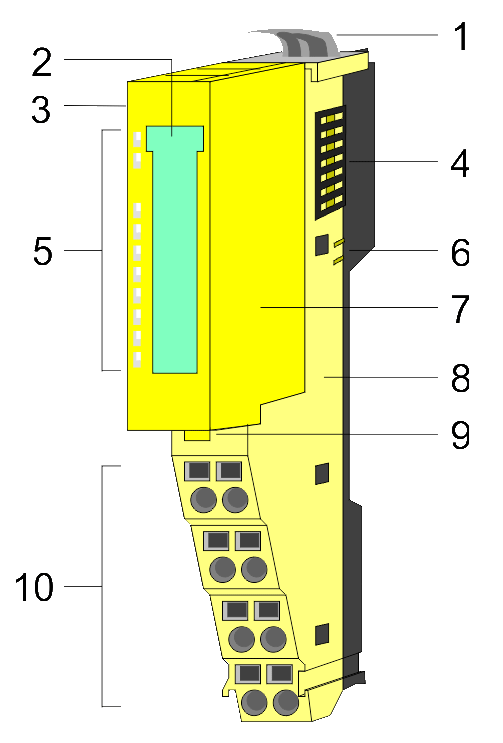

Модуль дискретного вывода для систем безопасности, 4 канала 24 В/0,5 А пост. тока
Наименование
|
Модуль дискретных выходов SM 022, DO 4 output, current 0,5A, safety |
Тип
|
022-1SD00 |
Габаритные размеры, В х Ш х Г, мм
|
12.9 mm x 109 mm x 76.5 mm |
Температура окружающей среды
|
0 °C .. 60 °C |
Количество выходов
|
4 |
Тип выходного сигнала
|
24VDC |
|

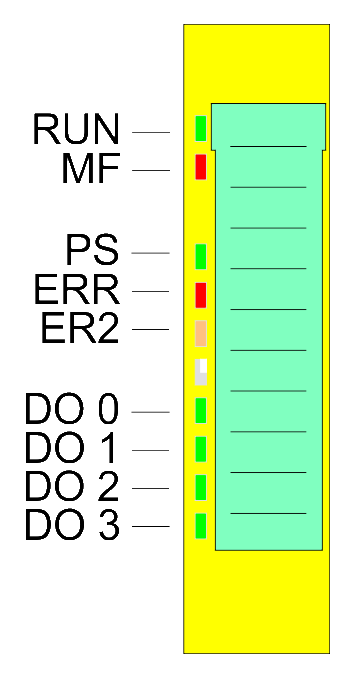

Status indication
RUN | MF | Description | |
green | red |
|
|
● | ○ | Bus communication is OK Module status is OK |
|
● | ● |
Bus communication is OK |
|
○ | ● |
Bus communication is not possible |
|
○ | ○ | Error at bus power supply | |
B | B |
Error in configuration |
|
on: ● | off: ○ | blinking with 0.5Hz: B |
LED | Color | Description | |
PS | green | ● |
PROFIsafe communication in data exchange |
BB | Safety parametrization expected | ||
B | Error - acknowledgement expected | ||
○ | Module initialization is running | ||
ERR | red | ● | Permanent fail-safe condition |
C | Blink code | ||
ERR2 | yellow | C | Blink code |
B | Requesting fail-safe state | ||
DO x | green | ● | Digital input is triggered |
on: ● | off: ○ | blinking with 0.5Hz: B | blinking with 2Hz: BB | Blink code: C |

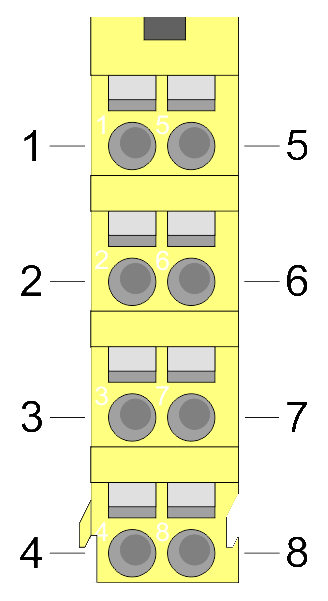

Pin assignment
PM - Power module | Pos. | Function |
Type |
Description | |
1 | DO 0 | O | Digital output DO 0 | ||
2 | 0V | O |
GND for actuator |
||
3 | DO 2 | O |
Digital output DO 2 |
||
4 | 0V | O | GND for actuator | ||
5 | DO 1 | O | Digital output DO 1 | ||
6 | 0V | O |
GND for actuator |
||
7 | DO 3 | O |
Digital output DO 3 |
||
8 | 0V | O | GND for actuator |
O: Output
Order no. |
022-1SD00 |
Type | SM 022 |
Module ID | 0C81 1E00 |
General information |
|
Note | - |
Features | 4 outputs Safety Output current 0.5 A |
Current consumption/power loss |
|
Current consumption from backplane bus | 75 mA |
Power loss | 1 W |
Technical data digital outputs |
|
Number of outputs | 4 |
Cable length, shielded | 1000 m |
Cable length, unshielded | 600 m |
Rated load voltage | DC 20.4...28.8 V |
Current consumption from load voltage L+ (without load) | 15 mA |
Total current per group, horizontal configuration, 40°C | 2 A |
Total current per group, horizontal configuration, 60°C | - |
Total current per group, vertical configuration | - |
Output current at signal "1", rated value | 0.5 A |
Output delay of "0" to "1" | 100 µs |
Output delay of "1" to "0" | 175 µs |
Minimum load current | - |
Lamp load | 5 W |
Parallel switching of outputs for redundant control of a load | not possible |
Parallel switching of outputs for increased power | not possible |
Actuation of digital input | |
Switching frequency with resistive load | max. 50 Hz |
Switching frequency with inductive load | max. 0.5 Hz |
Switching frequency on lamp load | max. 10 Hz |
Internal limitation of inductive shut-off voltage | L+ (-45 V) |
Short-circuit protection of output | yes, electronic |
Trigger level | 1.7 A |
Number of operating cycle of relay outputs | - |
Switching capacity of contacts | - |
Output data size | 4 Bit |
Status information, alarms, diagnostics |
|
Status display | green LED per channel |
Interrupts | yes, parameterizable |
Process alarm | no |
Diagnostic interrupt | yes, parameterizable |
Diagnostic functions | yes, parameterizable |
Diagnostics information read-out | possible |
Supply voltage display | green LED |
Group error display | red SF LED |
Channel error display | red ERR-LED and yellow ER2-LED |
Isolation |
|
Between channels | - |
Between channels of groups to | - |
Between channels and backplane bus | |
Insulation tested with | DC 500 V |
PWM data |
|
PWM channels | - |
PWM time basis | - |
Period length | - |
Minimum pulse width | - |
PtP communication | - |
Safety |
|
Safety protocol | PROFIsafe V2 |
Safety requirements | SIL CL 3, PL e, Kat 4 |
Secure user address | 1 - 4095 |
Watchdog | parameterizable 10ms - 1s |
Two channels | Each 2 of 4 outputs switchable |
Test pulse length | parameterizable 500µs - 10ms |
Circuit monitoring | |
Datasizes |
|
Input bytes | 5 |
Output bytes | 5 |
Parameter bytes | 44 |
Diagnostic bytes | 20 |
Housing |
|
Material | PC / PPE GF10 |
Mounting | Profile rail 35 mm |
Mechanical data |
|
Dimensions (WxHxD) | 12.9 mm x 109 mm x 76.5 mm |
Weight | 60 g |
Environmental conditions |
|
Operating temperature | 0 °C to 60 °C |
Storage temperature | -25 °C to 70 °C |
Certifications |
|
UL508 certification | in preparation |
